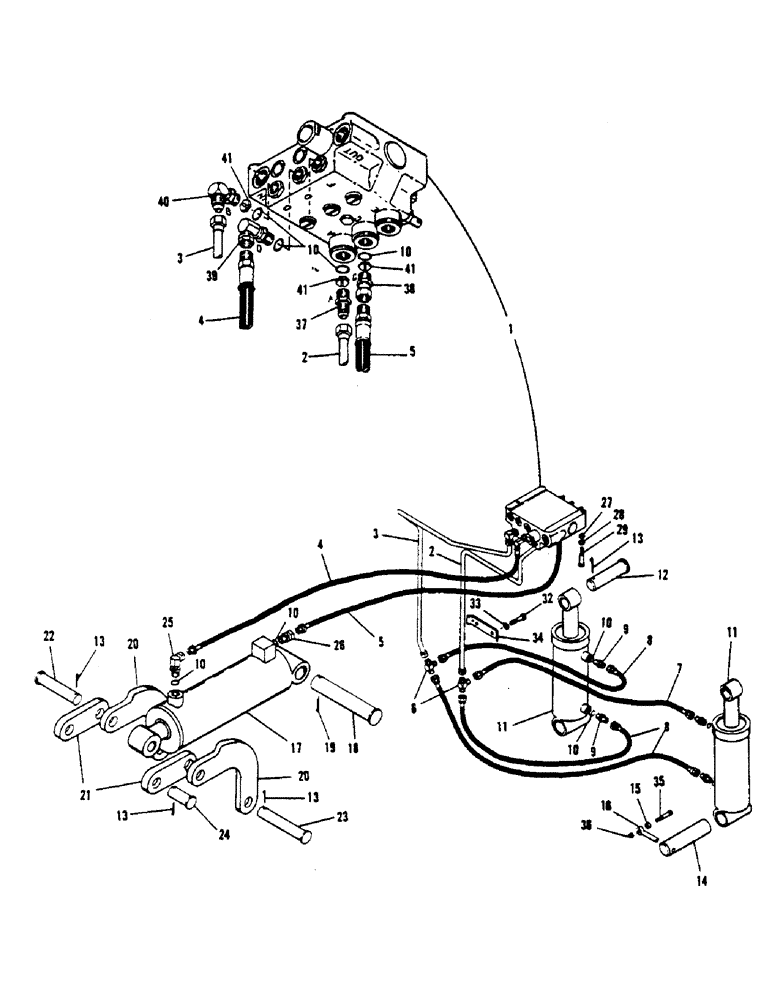

Запчасти Case 1000 (24) - HYDRAULIC LINES - BOOM & TILT CIRCUIT, (UP TO SPEC. #P16WS04, P16FG05, P16FD06)

1

H540179

VALVE

BOOM - tilt - slow speed valve asm (See Figure 64 for parts list), Serial Range: 16500-16610

1шт.

1

H594507

LOCK VALVE

BOOM - tilt - slow speed valve asm (See Figure 64 for parts list), Start Serial: 16610

1шт.

2

H576199

TUBE,0.375" OD

- "A" port valve to tee

1шт.

3

H576207

TUBE,0.375" OD x 21.437, 13.25" L

- "B" port valve to tee

1шт.

4

H147223

HOSE

(1/4" x 73" - 3/8" M.P. ends)

1шт.

5

H133512

HOSE ASSY.

HOSE (1/4" x 57" - 3/8" M.P. - 1/4" M.P.)

1шт.

6

H213041

TEE

- tube to tilt hoses

2шт.

7

H171629

HYDRAULIC HOSE,304.80 mm, SAE 100R1

304.80 mm, SAE 100R1

1шт.

8

H234245

HYDRAULIC HOSE,6.35 mm ID x 406.40 mm, SAE 100R1

6.35 mm ID x 406.40 mm, SAE 100R1

3шт.

9

76350

HYD CONNECTOR,9/16" - 18 ORB x 9/16" - 18 JIC

CONNECTOR, HYD., 9/16"-18, 37º x 9/16"-18, O-Ring

4шт.

10

H745158

O-RING

O RING

10шт.

11

H568444

TILT CYLINDER ASM (See Figure 66 for parts list)

2шт.

12

H146019

PIN (1-1/4" x 4-13/16")

2шт.

13

H740548

PIN

COTTER PIN (1/4" x 1-3/4")

5шт.

14

H232728

PIN (1-1/2" x 6-11/16")

2шт.

15

H44875

SPACER

2шт.

16

H50666

PIN

RETAINER

2шт.

17

H567701

CYLINDER BLOCK

BOOM CYLINDER ASM (See Figure 66 for parts list)

1шт.

18

H218255

PIN

(1-1/2" x 8-1/2")

1шт.

19

H740555

PIN, SPLIT (COTTER)

COTTER PIN (1/4" x 2")

1шт.

20

H213652

DRAG LINK

CURVED LINK

2шт.

21

H213520

DRAG LINK

STRAIGHT LINK

2шт.

22

H257048

PIN,28.5mm OD x 146.05mm L

(1-1/8" x 5-1/4")

1шт.

23

H218263

AXLE PIN

PIN (1-1/8" x 6-1/4")

1шт.

24

H218271

PIN

(1-1/8" x 4")

1шт.

25

218-5387

90 ELBOW,90 Degree, 3/4"-16 O-Ring x 3/8" NPSM Fem

ADAPTER - 90 degrees

1шт.

26

H52472

ADAPTER

- straight

1шт.

27

230-4215

NUT,5/16"-18, GA

NUT (5/16" NC - lock)

2шт.

28

H738450

WASHER

FLAT WASHER (5/16")

2шт.

29

H709501

BOLT

HHCS (5/16" x 2-1/4" NC)

2шт.

32

H709477

BOLT

HHCS (5/16" x 1-1/2" NC)

2шт.

33

H739201

WASHER

LOCK WASHER (5/16")

2шт.

34

H233296

TUBE CLAMP

1шт.

35

H709899

SPARE PART

HHCS (3/8" x 2" NC)

2шт.

36

H738013

LOCK NUT

NUT (3/8" NC - lock)

2шт.

37

76350

HYD CONNECTOR,9/16" - 18 ORB x 9/16" - 18 JIC

CONNECTOR, HYD., 9/16"-18, 37º x 9/16"-18, O-Ring

1шт.

38

H32656

TUBE NUT

ADAPTER - straight

1шт.

39

H91397

ADAPTER

- 90 degrees

1шт.

40

H165068

ADAPTER

- 90 degrees

1шт.

41

H108035

PLATE

ORIFICE PLATE (.035 dia. orifice)

3шт.
