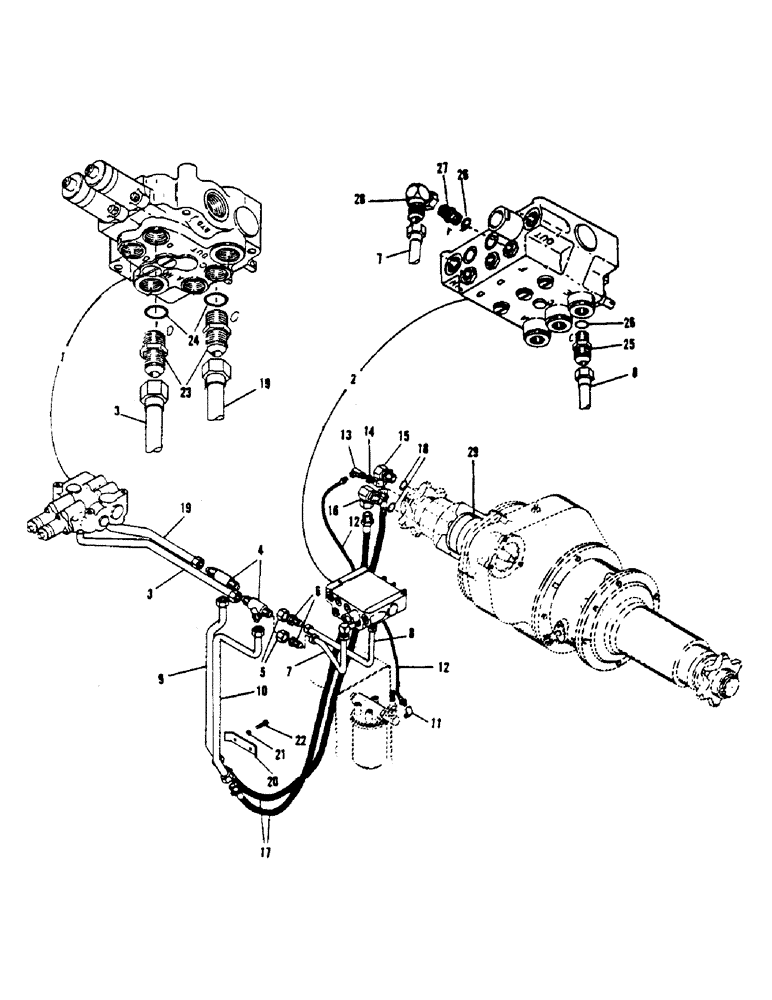

Запчасти Case 1000 (22) - HYDRAULIC LINES, PROPULSION CIRCUIT

1

H537043

LOCK VALVE

SPEED & CONVEYOR VALVE ASM (See Figure 62 for parts lists)

1шт.

2

H540179

VALVE

BOOM - tilt - slow speed valve asm (See Figure 64 for parts list), Serial Range: 16500-16610

1шт.

2

H594507

LOCK VALVE

BOOM - tilt - slow speed valve asm (See Figure 64 for parts list), Start Serial: 16610

1шт.

3

H573667

TUBE,0.75" OD

- "D" port to tee

1шт.

4

H228346

TEE

2шт.

5

H229385

NUT

TUBE NUT

2шт.

6

H229245

REDUCER

2шт.

7

H573741

TUBE,0.5" OD x 4, 7.125" L

- "F" port to tee

1шт.

8

H573634

TUBE - "E" port to tee 0.5" OD x 11.75, 3.75" L

1шт.

9

H576181

TUBE,0.75" OD

- tee to prop motor

1шт.

10

H576132

TUBE,0.75" OD

- tee to prop motor

1шт.

11

H749796

ELBOW

STREET ELBOW (1/4" x 90 degrees - pipe)

1шт.

12

H88575

HOSE,0.25" ID x 48.00", SAE 100R3

1шт.

13

H71662

FITTING

ADAPTER - 90 degrees

1шт.

14

H749812

PLUG

BUSHING (1/4" to 1/8" - pipe)

1шт.

15

H45526

ADAPTER

- 90 degrees

1шт.

16

H107706

FITTING

ADAPTER - 90 degrees (Special)

1шт.

17

H234260

HOSE ASSY.

HOSE (3/4 x 22" - 3/4" M.P. - 1-1/16" J.I.C. male)

2шт.

18

H745182

O-RING

O RING

2шт.

19

H573717

TUBE,0.75" OD x 15.437, 3.719" L

- "C" port to tee

1шт.

20

H233296

TUBE CLAMP

2шт.

21

H739201

WASHER

LOCK WASHER (5/16")

2шт.

22

H709469

X

HHCS (5/16" x 1/4" NC)

2шт.

23

H195321

ADAPTER

- straight

2шт.

24

H745182

O-RING

O RING

2шт.

25

86509028

HYD CONNECTOR,3/4" - 16 JIC x 9/16" - 18 ORB

ADAPTER - straight

1шт.

26

H745158

O-RING

O RING

2шт.

27

86509028

HYD CONNECTOR,3/4" - 16 JIC x 9/16" - 18 ORB

ADAPTER - straight

1шт.

28

H174599

TUBE NUT

ADAPTER - 90 degrees

1шт.

29

H527358

MOTOR, HYDRAULIC

PROPULSION MOTOR ASM (See Figure 58 for parts list)

1шт.
