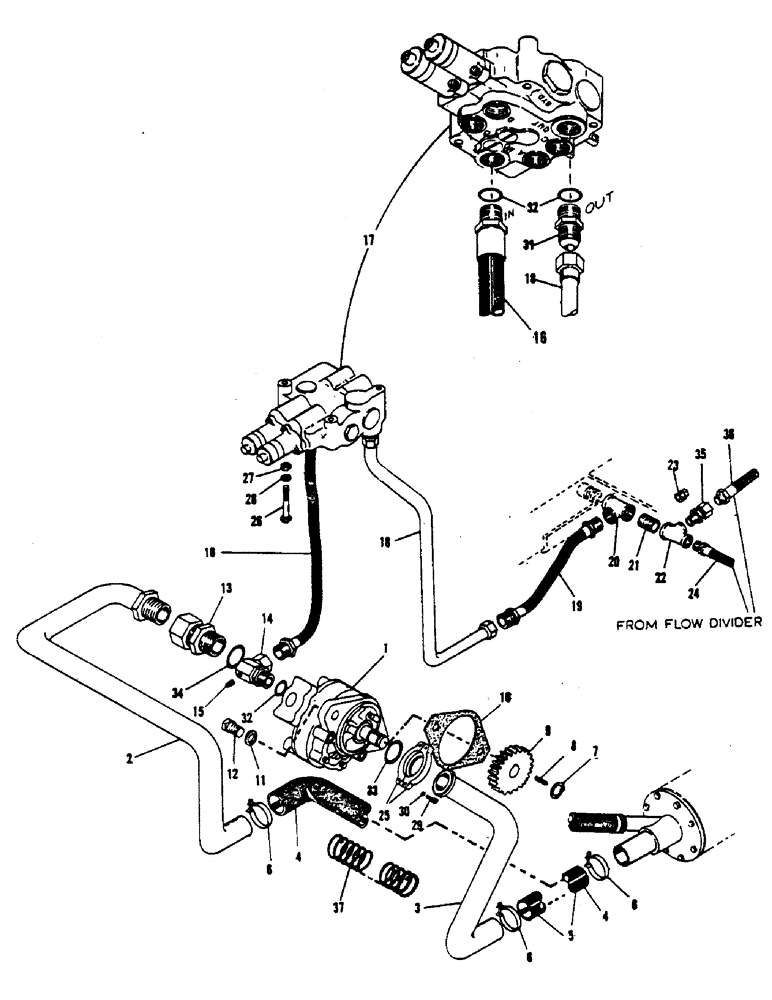

Запчасти Case 1000 (20) - HYDRAULIC LINES - LARGE PUMP CIRCUIT

1

H565556

PUMP

HYDRAULIC PUMP - large (See Figure 60 for parts list)

1шт.

Used on Ford powered units only.

1шт.

1

H565549

HYDRAULIC PUMP - large (See Figure 60 for parts list)

1шт.

Used on Wisconsin powered units only.

1шт.

2

H577486

TUBE

SUCTION TUBE

1шт.

Used on Ford powered units only.

1шт.

3

H524710

SUCTION TUBE 1.5" OD x 12.187, 8.375" L

1шт.

Used on Wisconsin powered units only.

1шт.

4

H81414

HOSE

SUCTION HOSE

1шт.

Used on Ford powered units only.

1шт.

5

H139584

SUCTION HOSE

1шт.

Used on Wisconsin powered units only.

1шт.

6

H42804

HOSE CLAMP

2шт.

7

H746503

RING, SNAP

SNAP RING

2шт.

8

H26492

KEY

(1/4" sq. x 3/4")

1шт.

9

H76190

PUMP

GEAR - large pump drive

1шт.

10

H44727

GASKET

- pump mounting

1шт.

11

H746107

GASKET

SEAL WASHER

2шт.

12

H710632

BOLT

HHCS (1/2" x 1-1/4" NC)

2шт.

13

H130161

FITTING

ADAPTER - straight

1шт.

14

H53835

ADAPTER - 90 degrees

1шт.

15

H749606

PLUG (1/4" pipe)

1шт.

16

H132365

HOSE

(3/4" x 30" - 3/4" M.P. - 1-1/16" O.R.B.)

1шт.

17

H537043

LOCK VALVE

HIGH-SPEED - conveyor valve asm (See Figure 62 for parts list)

1шт.

18

H573733

TUBE,0.75" OD x 18, 6.625" L

- "out" port conveyor valve

1шт.

19

H228775

HOSE ASSY.

HOSE (3/4" x 14" - 3/4" M.P. - 1-1/16" J.I.C. male)

1шт.

20

H750018

TEE

(3/4" x 3/4" x 3/4" pipe)

1шт.

21

H753954

NIPPLE, LUBE

NIPPLE (3/4" all thread)

1шт.

22

H753392

TEE

(3/4" x 1/2" x 1/2" pipe)

1шт.

23

H749630

PLUG

(1/2" pipe) - Used only if machine does not have flow divider

1шт.

24

H55152

HOSE ASSY.

HOSE (1/2" x 16" - 1/2" M.P. - 7/8" J.I.C. Fe. Sw.)

1шт.

25

H45583

FLANGE

PUMP FLANGE

2шт.

Used on Wisconsin powered units only.

1шт.

26

H709956

BOLT

HHCS (3/8" x 2-1/2" NC)

2шт.

26

H709949

BOLT

HHCS (3/8" x 3-1/4" NC)

1шт.

27

H738013

LOCK NUT

NUT (3/8" NC - lock)

3шт.

28

H738468

WASHER

FLAT WASHER (3/8" SAE)

3шт.

29

H710251

SCREW

HHCS (7/16" x 1-1/4" NC)

2шт.

30

H739227

WASHER, LOCK

LOCK WASHER (7/16")

2шт.

31

H195321

ADAPTER

- straight

1шт.

32

H745182

O-RING

O RING

3шт.

33

H755322

O-RING

O RING

1шт.

34

H745216

O-RING

O RING

1шт.

35

H132639

TUBE NUT

ADAPTER - special w/1/4" orifice (Do not use if backhoe is installed)

1шт.

36

H197517

HOSE ASSY.

HOSE (1/2" x 21" - 1/2" M.P. - 7/8" JIC Fe. Sw.) flow divider to special adapter

1шт.

37

H203190

VALVE SPRING

SPRING - suction hose, also for Case 207.

1шт.

Used on Ford powered units only.

1шт.
