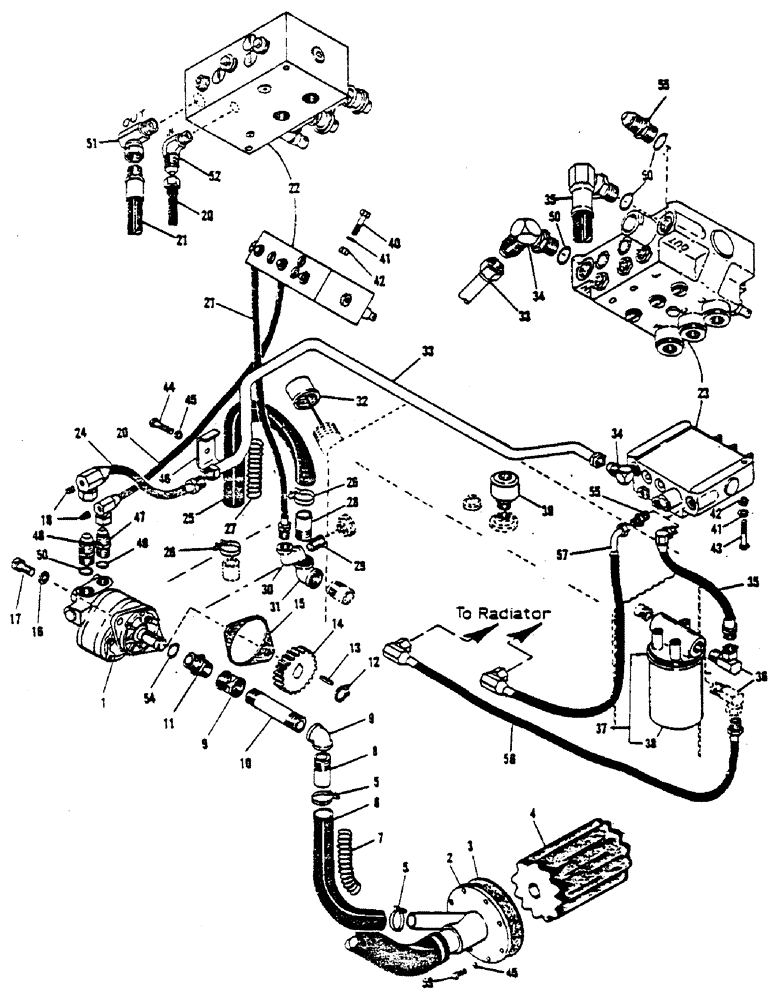

Запчасти Case 1000 (18) - HYDRAULIC LINES - PRIORITY PUMP CIRCUIT, OIL FILTERS

1

H561258

PUMP

PRIORITY PUMP ASM (See figure 60 for parts list)

1шт.

2

H506048

FILTER CAP

1шт.

3

H43794

GASKET

FILTER GASKET

1шт.

4

H43802

FILTER CARTRIDGE

1шт.

5

H164145

HOSE CLAMP

2шт.

6

H34678

HOSE ASSY.

SUCTION HOSE (1" x 13-1/2")

1шт.

7

H33233

VALVE SPRING

HOSE SPRING (Wisconsin engine only)

1шт.

7

H203190

VALVE SPRING

HOSE SPRING (Ford engine only)

1шт.

8

H30650

NIPPLE, LUBE

SPECIAL NIPPLE

1шт.

9

H749721

ELBOW (3/4" x 90 degrees - pipe)

2шт.

10

H749002

NIPPLE (3/4 " x 4" - pipe)

1шт.

11

218-5022

HYD CONNECTOR,1 1/16"-12, O-Ring x 3/4"-16, Pipe

ADAPTER - straight

1шт.

12

H746487

RING, SNAP

SNAP RING

2шт.

13

H35147

KEY

(3/16" sq. x 49/64")

1шт.

14

H25510

GEAR

- small pump drive

1шт.

15

H238469

GASKET

GASKET - pump mounting

1шт.

16

H746099

SEAL ASSY.

SEAL WASHER

2шт.

17

H710244

X

HHCS (7/16" x 1" NC)

2шт.

18

H749598

PLUG

(1/8" pipe)

2шт.

20

H236646

HOSE ASSY.

HOSE (3/8" x 28" - 3/4" x 90 degrees JIC Fe. Sw. - 3/4 " JIC Fe. Sw.)

1шт.

21

H102368

HOSE ASSY.

HOSE (1/2" x 18-1/2" - 1/2" M.P. - both ends)

1шт.

22

H520742

VALVE

STEERING & CLUTCH VALVE ASM (See figure 62 for parts lists), Serial Range: -5068

1шт.

22

H576124

LOCK VALVE

STEERING & CLUTCH VALVE ASM (See figure 62 for parts lists), Start Serial: 5068

1шт.

23

H540179

VALVE

BOOM - tilt - slow speed valve asm (See figure 64 for parts lists), Serial Range: 16500-16610

1шт.

23

H594507

LOCK VALVE

BOOM - tilt - slow speed valve asm (See figure 64 for parts lists), Start Serial: 16610

1шт.

24

H229583

HOSE ASSY.

HOSE (1/2" x 14" - 7/8" x 90 degrees JIC Fe. Sw. - 7/8" JIC male) Ford engines

1шт.

Taped hole for testing pressure, for service use H244558.

1шт.

24

H244566

HOSE ASSY.

HOSE (1/2" x 18" - 7/8" x 90 degrees JIC Fe. Sw. - 7/8" JIC male) Wisconsin engine

1шт.

25

H138859

HOSE ASSY.

RESERVOIR TO RESERVOIR (1" x 18")

1шт.

26

H164145

HOSE CLAMP

2шт.

27

H33233

VALVE SPRING

HOSE SPRING

1шт.

28

H30650

NIPPLE, LUBE

SPECIAL NIPPLE

1шт.

29

H748939

FITTING

NIPPLE (1/2" all thread)

1шт.

30

H749705

ELBOW UNION

ELBOW (1/2" x 90 degrees - pipe)

1шт.

31

H749721

ELBOW (3/4" x 90 degrees - pipe)

1шт.

32

H524892

CAP & DIPSTICK ASM

1шт.

33

H573766

TUBE,0.625" OD

- "in" port - slow-speed valve

1шт.

34

86527

90 ELBOW,7/8" - 14 JIC x 3/4" - 16 ORB

ADAPTER - 90 degrees

1шт.

35

H593715

HOSE (1/2" x 11-3/4" x 90 degrees O.R.B. - 1/2" M.P.)

1шт.

All Wisconson and Ford units w/o radiator/oil cooler.

1шт.

36

H53827

SPECIAL ADAPTER

1шт.

37

H568014

FILTER CARTRIDGE

RETURN FILTER ASM, Includes: Ref. 38

1шт.

38

H215780

RETURN FILTER CARTRIDGE

1шт.

39

H501684

BREATHER

AIR BREATHER

1шт.

40

H709550

BOLT

HHCS (5/16" x 3-1/2" NC)

2шт.

41

H738450

WASHER

FLAT WASHER (5/16" SAE)

4шт.

42

230-4215

NUT,5/16"-18, GA

NUT (5/16" NC - lock)

4шт.

43

H709501

BOLT

HHCS (5/16" x 2-1/4" NC)

2шт.

44

H709451

BOLT (SPREADER)

HHCS (5/16" x 1" NC)

1шт.

45

H738450

WASHER

LOCK WASHER (5/16")

9шт.

46

H46888

CLAMP

TUBE CLAMP

1шт.

47

H112573

ADAPTER

- straight

1шт.

48

H35386

ROD, CONNECTING

ADAPTER - straight

1шт.

49

H745174

O-RING

O RING

1шт.

50

H745166

O-RING

O RING

3шт.

51

H49684

TUBE NUT

ADAPTER - 90 degrees

1шт.

52

H169847

ADAPTER

- 90 degrees

1шт.

53

H749440

BOLT

HHCS (5/16" x 5/8" NC)

8шт.

54

H745182

O-RING

O RING

1шт.

55

H112573

ADAPTER

FITTING - straight

1шт.

All Ford units with radiator/oil cooler.

1шт.

56

H247981

HOSE ASSY.

HOSE (1/2" x 26") 7/8" x 90 degrees JIC Fe. Sw. - 1/2" M.P.

1шт.

All Ford units with radiator/oil cooler.

1шт.

57

H247502

HOSE ASSY.

HOSE (1/2" x 22") 3/4" x 90 degrees JIC Fe. Sw. - 7/8" JIC Fe. Sw.)

1шт.

All Ford units with radiator/oil cooler.

1шт.
