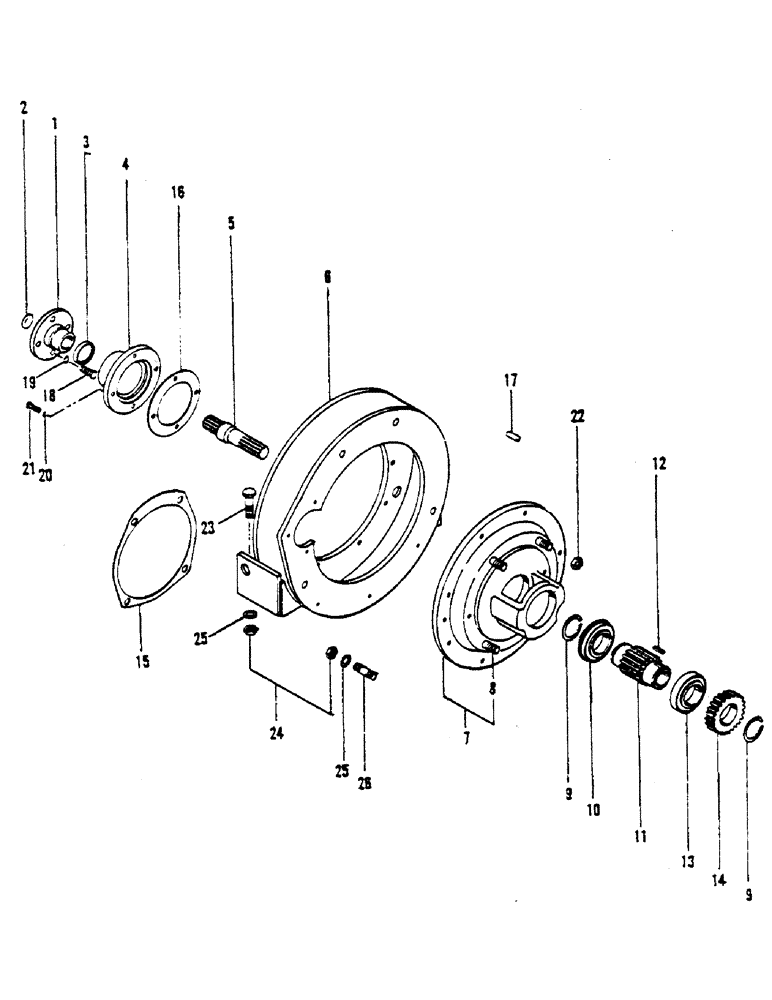

Запчасти Case 1000 (17C) - CASE 207 ENGINE - PUMP DRIVE - P.T.O. ADAPTER

1

H331710

PINION

HUB - drive

1шт.

2

H42564

PLUG

1шт.

3

H749218

OIL SEAL,44.45mm ID x 63.65mm OD x 7.95mm Thk

OIL SEAL

1шт.

4

H42515

RETAINER

BEARING RETAINER

1шт.

5

H124263

SHAFT

-, Serial Range: engine-P.T.O.

1шт.

6

H619791

FLYWHEEL HOUSING

1шт.

7

H606103

ADAPTER

ASM, Includes: Ref. 8

1шт.

8

H297408

STUD

4шт.

9

H746735

RING, SNAP

SNAP RING

2шт.

10

A31209

BALL BEARING,49.99mm ID x 89.98mm OD x 20mm W

BEARING

1шт.

11

H42531

GEAR - pinion

1шт.

12

H42598

KEY

(5/16 x 7/8)

1шт.

13

H747196

BEARING

1шт.

14

H42549

GEAR

- pump drive

1шт.

15

H42580

GASKET

1шт.

16

H42572

GASKET

1шт.

17

H755272

DOWEL

PIN (3/8 x 1 - dowel)

4шт.

18

H723650

HHCS (7/16 x 1-3/4 NF)

6шт.

19

192-22

LOCK WASHER,7/16"

WASHER, LOCK, 7/16"

6шт.

20

113-208

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

8шт.

21

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

8шт.

22

131-1219

LOCK NUT,5/8"-11, GC

NUT, LOCK, 5/8"-11, GC

4шт.

23

A30135

BOLT

HHCS (5/8 x 2-1/2 NC - H.T.)

2шт.

24

25-1110

NUT,5/8"-18, G5

(5/8 NC hex)

4шт.

25

193-14

LOCK WASHER,Ext Tooth, 5/8"

WASHER, LOCK, Ext Tooth, 5/8"

4шт.

26

A29334

STUD (5/8 x 2 NC)

2шт.
