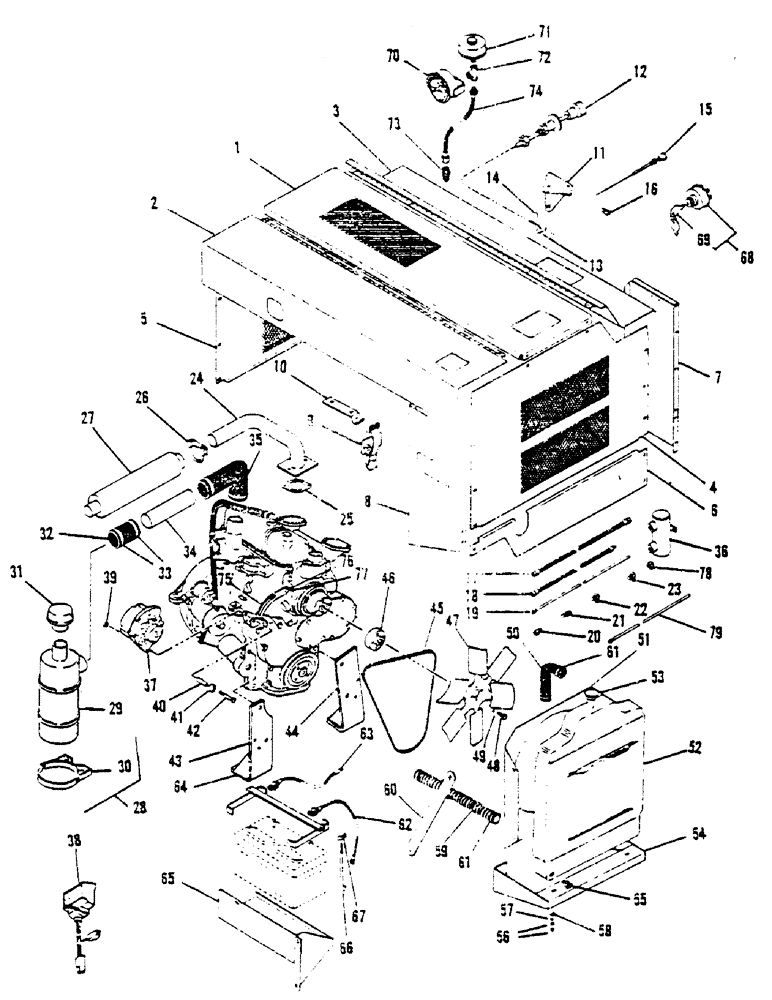

Запчасти Case 1000 (17A) - CASE 207 ENGINE - HOOD - MUFFLER - RADIATOR

1

H620799

MOUNTING ASM - hood

1шт.

2

H620781

HOOD - front

1шт.

3

H620773

HOOD

HOOD - rear

1шт.

4

H620807

SPARE PART COVER - left

1шт.

5

H620955

COVER ASSY

COVER - right

1шт.

6

H326736

ANGLE - support

1шт.

7

H326751

CHANNEL

CHANNEL - rear mtg

1шт.

8

H326769

CHANNEL - front mtg

1шт.

9

H196758

LATCH ASSY.

LATCH - hood

4шт.

10

H248302

CATCH

CATCH - strike

4шт.

11

H326033

BRKT - control cable

1шт.

12

H615096

CONTROL BLOCK

THROTTLE CONTROL

1шт.

13

H327494

JOINT TURNING

SWIVEL

1шт.

14

132-328

COTTER PIN,1/16" x 1/2"

PIN, SPLIT (COTTER), 1/16" x 1/2"

1шт.

15

H501916

CABLE

KILL CONTROL

1шт.

16

H139576

JOINT TURNING

SWIVEL

1шт.

17

H546002

LINE

SPARE PART GAS LINE - 45" long (7/16 Fe Swv)

1шт.

18

H50302

LINE

SPARE PART FUEL LINE - 34" long (7/16 Fe Swv x 1/8 MP)

1шт.

19

H580902

TUBE,0.25" OD x 5.25" L

BLEED LINE - 45" long 3/8 - 24 tube nut)

1шт.

20

222-741

HYD CONNECTOR,7/16"-20 45 Degree Fl x 1/8" NPT Fem

ADAPTER - straight (1/8 FMP x 7/16 - 20)

1шт.

21

221-803

SPARE PART FITTING - straight (7/16 - 20 x 1/4 MP)

1шт.

22

222-765

ELBOW,90 Degree, 1/2"-20, 45 Degree Fl x 1/8" NPT

ELBOW - 90 degrees (1/8 MP x 1/2 - 20)

1шт.

23

222-763

ELBOW,90 Degree, 7/16"-20, 45 Degree Fl x 1/4" NPT

FITTING - 90 degrees (1/4 MP x 7/16 - 20)

1шт.

24

H621045

PIPE CLAMP

SPARE PART EXHAUST PIPE ASM

1шт.

25

G46853

MANIFOLD GASKET

GASKET - exhaust

1шт.

26

H68403

CLAMP

CLAMP - muffler

1шт.

27

H130138

MUFFLER

MUFFLER

1шт.

28

H535948

CLEANER ASSY.

AIR CLEANER ASM, Includes: Ref. 29 - 31

1шт.

P/N H129536, Cleaner.

1шт.

H129551---BANDS

1шт.

P/N H129544 Cap.

1шт.

REF. 28 FOR SERVICE USE

1шт.

29

H151969

ELEMENT

ELEMENT

1шт.

30

H129551

BAND

BAND ASM

2шт.

31

H129544

CAP

CAP

1шт.

32

H158592

HOSE,57.20 mm ID x 101.60 mm, SAE 20R2

Air Cleaner

1шт.

33

214-260

HOSE CLAMP,#36, 1.81" - 2.75", Type F Worm

HOSE CLAMP, #36, 1.81/2.75 Type F Worm

4шт.

34

H328708

TUBE - air cleaner

1шт.

35

H342642

HOSE ASSY.

HOSE - air cleaner

1шт.

36

H576595

PUMP

FUEL PUMP ASM

1шт.

37

H527259

ALTERNATOR

ALTERNATOR

1шт.

37

87297244

REMAN-ALTERNATOR

Reman for New PN H527259

1шт.

37

87297245

CORE-ALTERNATOR

Return Number

1шт.

37

103804A1GV

ALTERNATOR

Value, 12V, 72A

1шт.

37

103804A1R

REMAN-ALTERNATOR

Remanufactured Alternator, 12 volt 72 ampere

1шт.

37

103804A1C

CORE-ALTERNATOR

Return Number

1шт.

37

ZAP804A1R

REMAN-ALTERNATOR

Remanufactured 12 VOLT, 100 AMP Alternator (Higher Amp version of 72 amp 103804A1R)

1шт.

37

103804A1C

CORE-ALTERNATOR

Return Number

1шт.

38

H107516

GOVERNOR

REGULATOR - voltage

1шт.

39

230-4216

LOCK NUT,3/8"-16, GA

NUT (3/8 NC hex - lock)

1шт.

40

D56002

SPARE PART SPACER

1шт.

41

D56004

SPARE PART SPACER

1шт.

42

113-241

BOLT,Hex, 3/8" - 16 x 3", Gr 5

BOLT, Hex, 3/8"-16 x 3", G5

1шт.

43

H621227

ENGINE MOUNT

1шт.

44

H621235

ENGINE MOUNT

1шт.

45

H325910

BELT

SPARE PART BELT

1шт.

46

A37191

BUSHING

SPACER - fan

1шт.

47

D27436

FAN

FAN

1шт.

48

113-120

BOLT,Hex, 5/16" - 18 x 1-3/4", Gr 5

BOLT, Hex, 5/16"-18 x 1 3/4", G5

4шт.

49

192-20

LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND

WASHER, LOCK, 5/16"

4шт.

50

H332551

RADIATOR HOSE,2.00" ID x 5.25", SAE 20R4 CLASS R

Upper

5шт.

51

H325902

SPARE PART

SHROUD - fan

1шт.

52

D69172

RADIATOR

RADIATOR

1шт.

53

A39359

CAP

CAP - radiator

1шт.

54

H620856

MOUNT - radiator

1шт.

55

217-103

COCK, DRAIN

COCK - drain

1шт.

56

87016560

JAM NUT,Jam, 3/8"-16, G5

NUT, Jam, 3/8"-16, G5

4шт.

57

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

2шт.

58

195-103

WASHER,5/16"

WASHER (3/8 - flat)

2шт.

59

A51576

HOSE ASSY.

HOSE - lower

1шт.

60

H325753

SPARE PART BRACE - radiator

1шт.

61

214-258

HOSE CLAMP,#28, 1.31" - 2.25", Type F Worm

HOSE CLAMP, #28, 1.31/2.25 Type F Worm

4шт.

62

H185306

CABLE PULLING GRIP

SPARE PART CABLE - battery (Positive)

1шт.

63

H106096

CABLE PULLING GRIP

CABLE - battery (Negative)

1шт.

64

H578302

BATTERY BOX

HOLD DOWN - battery

1шт.

65

H536235

SPARE PART BOX - battery

1шт.

66

H30825

BOLT

BOLT - battery hold down

2шт.

67

129-419

WING NUT,5/16"-18

NUT (5/16 NC - wing)

2шт.

68

H71498

SWITCH

IGNITION SWITCH & KEYS, Includes: Ref. 69

1шт.

69

A24509

KEY

KEY - ignition start, Set of 2

1шт.

70

H331350

GAUGE - oil pressure

1шт.

71

H139634

SWITCH

PRESSURE SWITCH

1шт.

72

221-421

TEE,1/8" NPT

TEE (1/8 - pipe)

1шт.

73

221-803

SPARE PART ADAPTER

1шт.

74

H157032

GAUGE ASSY.

HOSE - switch

1шт.

75

H325761

SPARE PART STRAP - alt. adj

1шт.

76

113-206

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

BOLT, Hex, 3/8"-16 x 3/4", G5, Full Thd

1шт.

77

195-103

WASHER,5/16"

NUT (3/8 NC hex - lock)

1шт.

78

222-762

ELBOW,90 Degree, 7/16"-20, 45 Degree Fl x 1/8" NPT

ELBOW, 90º, 7/16"-20, 45º Fl x 1/8" NPT

1шт.

79

H628180

FUEL TUBE,36" L

FUEL LINE (ong) 36" L

1шт.
