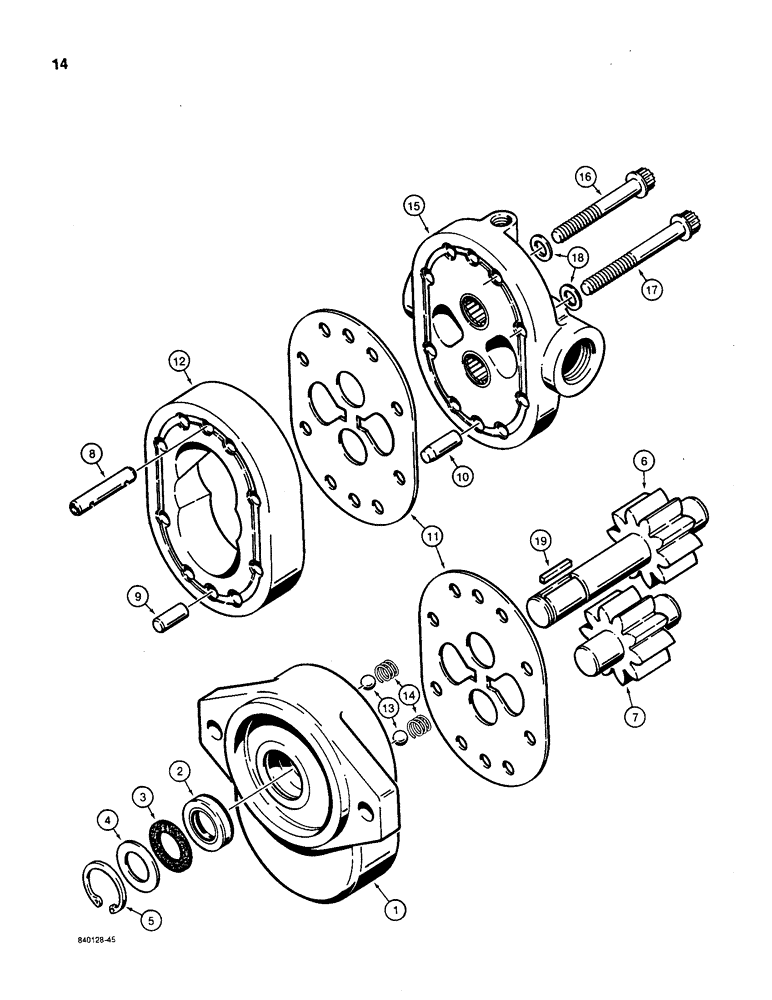

Запчасти Case CASE (14) - H654814 HYDRAULIC MOTOR

H654814

MOTOR

ASSEMBLY - hydraulic, Hydra-Borer drive, new, Includes: Ref. 1 - 12

1шт.

HR654814

REMAN-HYD MOTOR

MOTOR ASSEMBLY - hydraulic, Hydra-Borer drive, remanufactured, component component parts shown on this figure do not apply to the remanufactured assembly, Includes: Ref. 1 - 12

1шт.

HC654814

CORE-MONITOR

RETURN NUMBER - use this part number to return the motor core for credit, Includes: Ref. 1 - 12

1шт.

1

H660316

HOUSING

- motor

1шт.

2

A11528

PIN,7.81mm OD x 14.29mm L

- dowel, housing

2шт.

3

H660332

GEAR

AND SHAFT - drive, must also replace H660324 driven gear (Ref. 4) as a matched set

1шт.

4

H660324

GEAR

- driven, must also replace H660332 drive gear (Ref. 3) as a matched set

1шт.

5

H758599

O-RING,2.989" ID x 3.129" OD

- housing seal

1шт.

6

N13533

PLATE

COVER - pump housing

1шт.

7

166-28

12 PT SCREW,Flg, 5/16" - 18 x 1 1/2", Gr 8

BOLT - Ferry head, 5/16" - 18 NC x 1-1/2"

8шт.

8

H263608

SEAL

- shaft, output

1шт.

9

H418004

WASHER

- backup, output shaft seal

1шт.

10

H94490

WASHER

- flat, special

1шт.

11

A36277

SNAP RING,1.125", Int, #112

seal 1.125", Int, #112

1шт.

12

H413575

KEY

- drive shaft

1шт.
