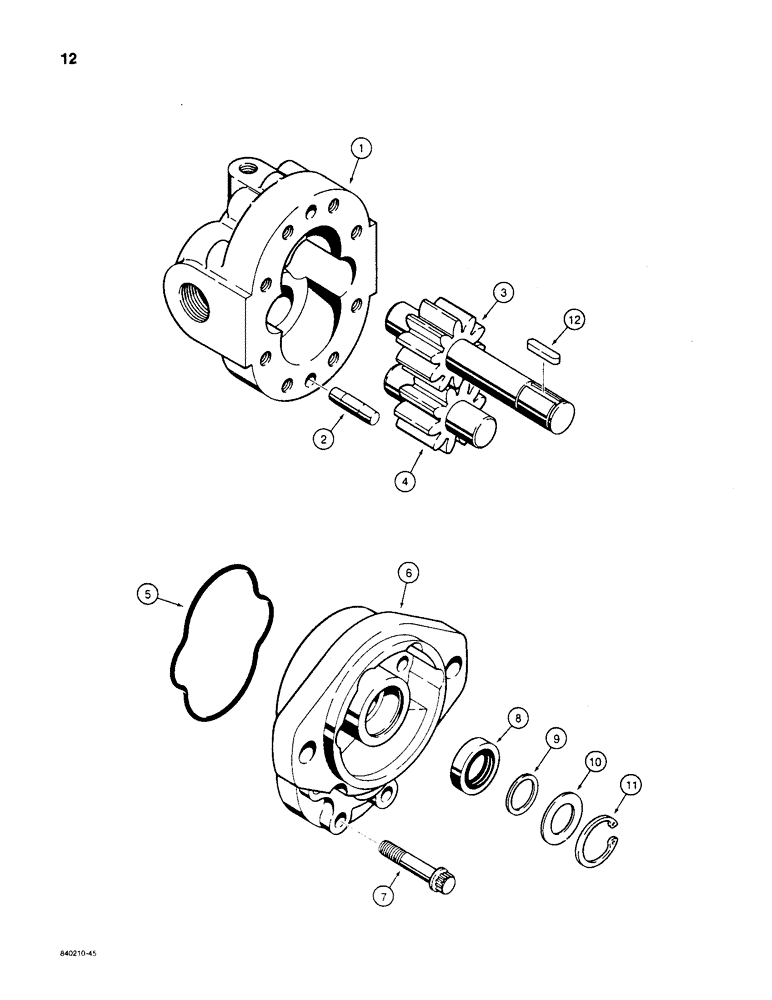

Запчасти Case CASE (12) - H525527 HYDRAULIC MOTOR

H525527

MOTOR HOUSING

MOTOR ASSEMBLY - hydraulic, Hydra-Borer drive, complete assembly no longer available, order one 221-84 reducer and one H654814 motor assembly, parts list figure 14, Includes: Ref. 1 - 19

1шт.

1

H103002

PLATE ASSY.

HOUSING - output shaft end

1шт.

2

H263608

SEAL

- shaft, output

1шт.

Part of seal kit P/N H599704

1шт.

3

A41346

RING

WASHER - special, backup

1шт.

Part of seal kit P/N H599704

1шт.

4

H94490

WASHER

- special

1шт.

Part of seal kit P/N H599704

1шт.

5

A36277

SNAP RING,1.125", Int, #112

seal 1.125", Int, #112

1шт.

Part of seal kit P/N H599704

1шт.

6

H52019

GEAR WHEEL

GEAR - drive

1шт.

7

H52027

SHAFT

GEAR - driven

1шт.

8

H47746

DOWEL

PIN - dowel, 5/16" x 1-21/32" long, housing

1шт.

9

H358754

PIN

- dowel, 5/16" x 3/4" long, housing

1шт.

10

H395111

PIN

- dowel, 5/16" x 7/8" long, housing

1шт.

11

H31328

PLATE ASSY.

PLATE - thrust

2шт.

Part of seal kit P/N H599704

1шт.

12

H47753

BODY

HOUSING - center

1шт.

13

211-312

BALL,13/32" Dia

- steel

2шт.

Part of seal kit P/N H599704

1шт.

14

H104406

SPRING

- ball

2шт.

Part of seal kit P/N H599704

1шт.

15

H501494

PLATE ASSY.

HOUSING - port end

1шт.

16

166-33

12 PT SCREW,Flg, 5/16" - 18 x 2 3/4", Gr 8

BOLT - Ferry head, 5/16" - 18 NC x 2-3/4"

4шт.

17

166-35

12 PT SCREW,Flg, 5/16" - 18 x 3 1/4", Gr 8

BOLT - Ferry head, 5/16" - 18 NC x 3-1/4"

4шт.

18

F10897

WASHER

- special, copper

8шт.

Part of seal kit P/N H599704

1шт.

19

H415158

BUCKET TOOTH KEY

KEY - drive shaft

1шт.

H599704

KIT

- seal, Includes Refs. 2, 3, 4, 5, 11, 13, 14 and 18

1шт.
