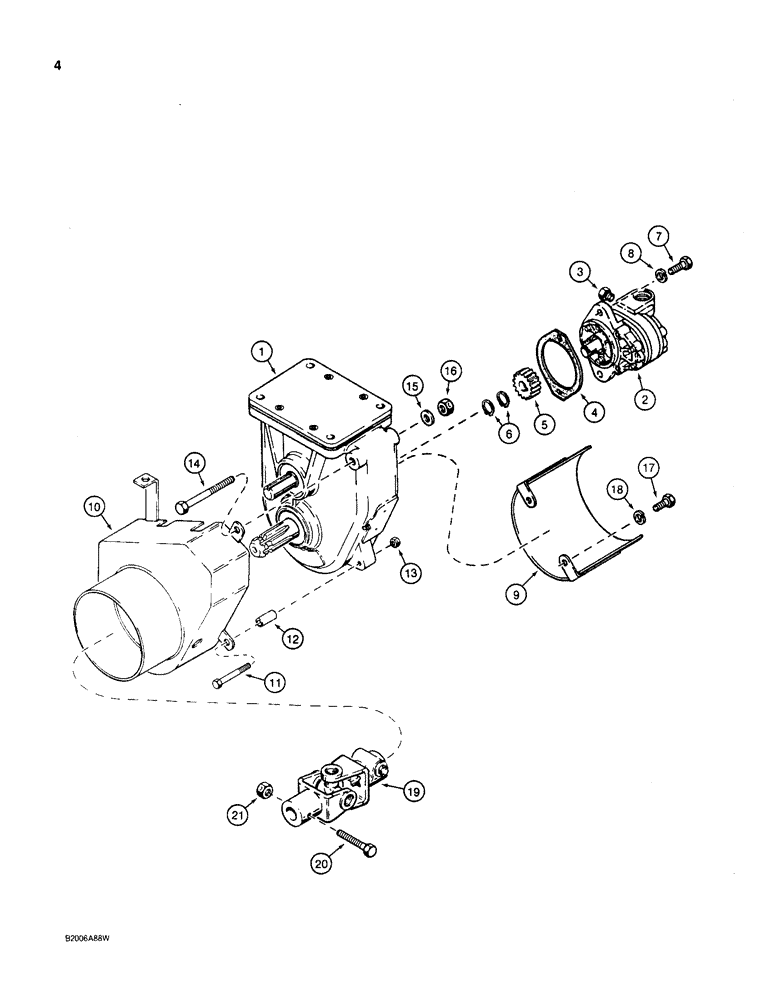

Запчасти Case CASE (04) - MOTOR AND DRIVE SHAFT MOUNTING

1

REF

INSTRUCTION

GEARBOX ASSEMBLY - Hydra-Borer, see figure 6 or 8 for correct gearbox and components

1шт.

2

REF

INSTRUCTION

REDUCER - Hydra-Borer drive, see figure 12 or 14 for correct motor and components

1шт.

3

221-84

REDUCER,Hex, 1/4" x 1/8" NPT

- 1/4" x 1/8" NPT, do not use galvanized, used with H654814 motor assembly

1шт.

4

H32375

GASKET

- motor

1шт.

5

H29223

SPUR

GEAR - input pinion, included with H511105 gearbox

1шт.

5

H426023

SPUR

GEAR - input pinion, included with H666875 gearbox

1шт.

6

A27521

SNAP RING,#68, Ext

RING, Snap, , gear #68, Ext

2шт.

7

113-312

BOLT,Hex, 7/16" - 14 x 1-1/4", Gr 5

2шт.

8

192-22

LOCK WASHER,7/16"

WASHER, LOCK, 7/16"

2шт.

9

H645838

SHIELD

- Hydra-Borer shaft

1шт.

10

H645788

GUARD

- Hydra-Borer, see figure 16, Ref. 34 for guard used with water pump

1шт.

11

113-119

BOLT,Hex, 5/16" - 18 x 2-3/4", Gr 5

1шт.

12

H217174

SPACER

-, Serial Range: gearbox-guard

1шт.

13

131-1215

LOCK NUT,5/16"-18, GC

NUT, LOCK, 5/16"-18, GC

1шт.

14

113-259

BOLT,Hex, 3/8" - 16 x 4-1/2", Gr 5

1шт.

15

195-525

WASHER,3/8", SAE

- flat , 3/8", plated

1шт.

16

131-1216

LOCK NUT,3/8"-16, GC

NUT, LOCK, 3/8"-16, GC

1шт.

17

113-207

BOLT,Hex, 3/8" - 16 x 1", Gr 5

Included with H511105 and H666875 gearboxes Hex, 3/8"-16 x 1", G5, Full Thd

2шт.

18

192-21

LOCK WASHER,3/8"

WASHER, LOCK, , Included with H511105 and H666875 gearboxes 3/8"

2шт.

19

H511113

JOINT

ASSEMBLY - universal, Hydra-Borer attachment, parts list figure 20

1шт.

20

113-2259

BOLT,Hex, 3/8" - 16 x 2-1/2", Gr 2

1шт.

21

131-1216

LOCK NUT,3/8"-16, GC

NUT, LOCK, 3/8"-16, GC

1шт.
