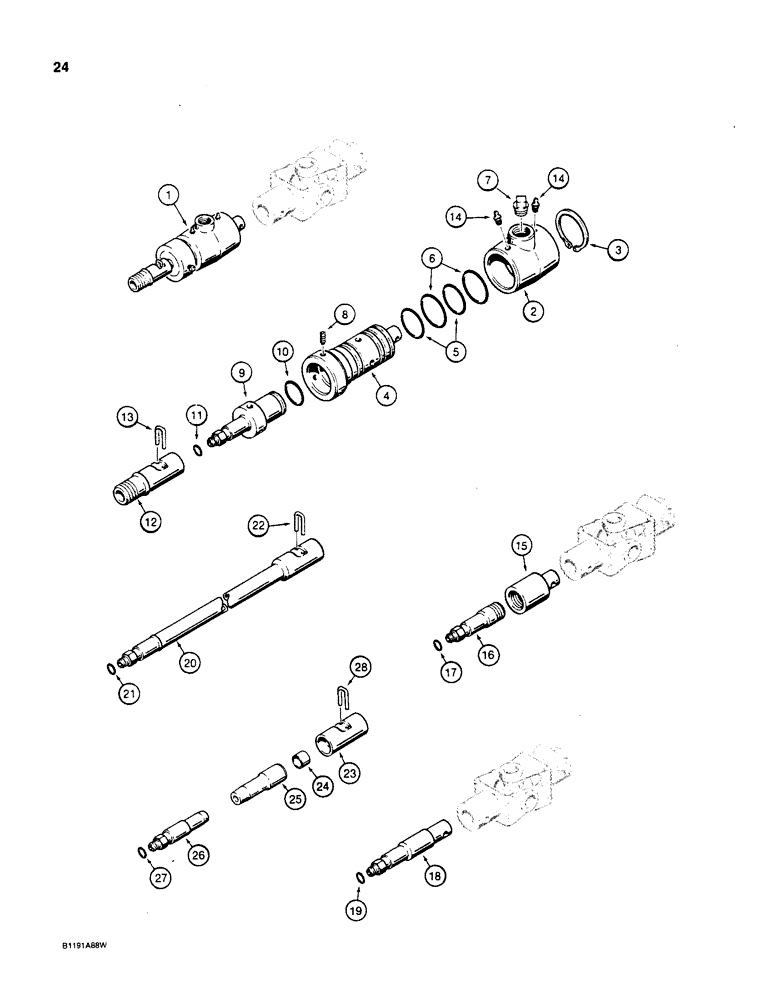

Запчасти Case CASE (24) - COUPLERS, ADAPTERS AND DRILL STEMS

1

H522367

COUPLING

COUPLER ASSEMBLY - water, wet boring, attaches to universal joint on gearbox, Includes: Ref. 2 - 14

1шт.

2

H84228

RING

HOUSING - coupler, water

1шт.

3

F40807

SNAP RING,#225, Ext

RING, Snap, , coupler #225, Ext

1шт.

4

H84236

COUPLING

SLEEVE - coupler

1шт.

5

R20570

O-RING,0.103" Thk x 1.799" ID, -133, Cl 5, 75 Duro

- seal backup

2шт.

6

H749317

OIL SEAL

SEAL - coupler

2шт.

7

353-207

PLUG,Sq Drive, 3/4"-14 NPT

- pipe, square head, 3/4" NPT, used for dry boring, if used

1шт.

8

85-612

SET SCREW,Sq Hd, 3/8"-16 x 3/4"

SCREW - set, square head, 3/8" - 16 NC x 3/4"

3шт.

9

H522359

ADAPTER

COUPLER - quick lock, male

1шт.

10

A27577

O-RING,0.139" Thk x 1.234" ID, -218, Cl 5, 75 Duro

- coupler, large

1шт.

12

H522375

ADAPTER

- drill stem, quick lock female to 1" NPT male

1шт.

13

H94961

STAPLE

CLIP - retainer, quick lock

1шт.

14

86636814

LUBE NIPPLE,1/4"-28 x .52" lg

FITTING - grease, straight, 1/4" - 28 NF

2шт.

15

H83352

ADAPTER

- 1" NPT male, dry boring, attaches to universal joint, if used

1шт.

16

H522383

ADAPTER

- 1" NPT male to quick lock male, if used

1шт.

18

H646901

ADAPTER

- dry boring, quick lock male, attaches to universal joint, if used

1шт.

20

H672563

EXTENSION

STEM - drill, quick lock, 5 foot long

1шт.

Refs. 23 - 26 may also be used to repair ends of Ref. 20 drill stem. See figure 26 for Hydra-Borer boring atachments.

1шт.

20

H672562

ADAPTER

STEM - drill, quick lock, 10 foot long

1шт.

Refs. 23 - 26 may also be used to repair ends of Ref. 20 drill stem. See figure 26 for Hydra-Borer boring atachments.

1шт.

22

H94961

STAPLE

CLIP - retainer, quick lock

1шт.

H672594

COUPLING

COUPLER ASSEMBLY - quick lock, female, Includes: Ref. 23 - 25

1шт.

23

H434272

COUPLING

COUPLER - quick lock, female

1шт.

May be used to repair ends of Ref. 20 drill stem.See figure 26 for Hydra-Borer boring atachments.

1шт.

24

H434276

COUPLING

BUSHING - shaft, O-ring seat

1шт.

May be used to repair ends of Ref. 20 drill stem.See figure 26 for Hydra-Borer boring atachments.

1шт.

25

H434271

COUPLING

SHAFT - stub

1шт.

May be used to repair ends of Ref. 20 drill stem.See figure 26 for Hydra-Borer boring atachments.

1шт.

26

H434273

NIPPLE, LUBE

COUPLER - quick lock, male

1шт.

May be used to repair ends of Ref. 20 drill stem.See figure 26 for Hydra-Borer boring atachments.

1шт.

28

H94961

STAPLE

CLIP - retainer, quick lock

1шт.

11

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk, Coupler, small

1шт.

17

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk, Adapter, if used

1шт.

19

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk, Adapter, if used

1шт.

21

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk, Drill stem

1шт.

27

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk, Coupler

1шт.
