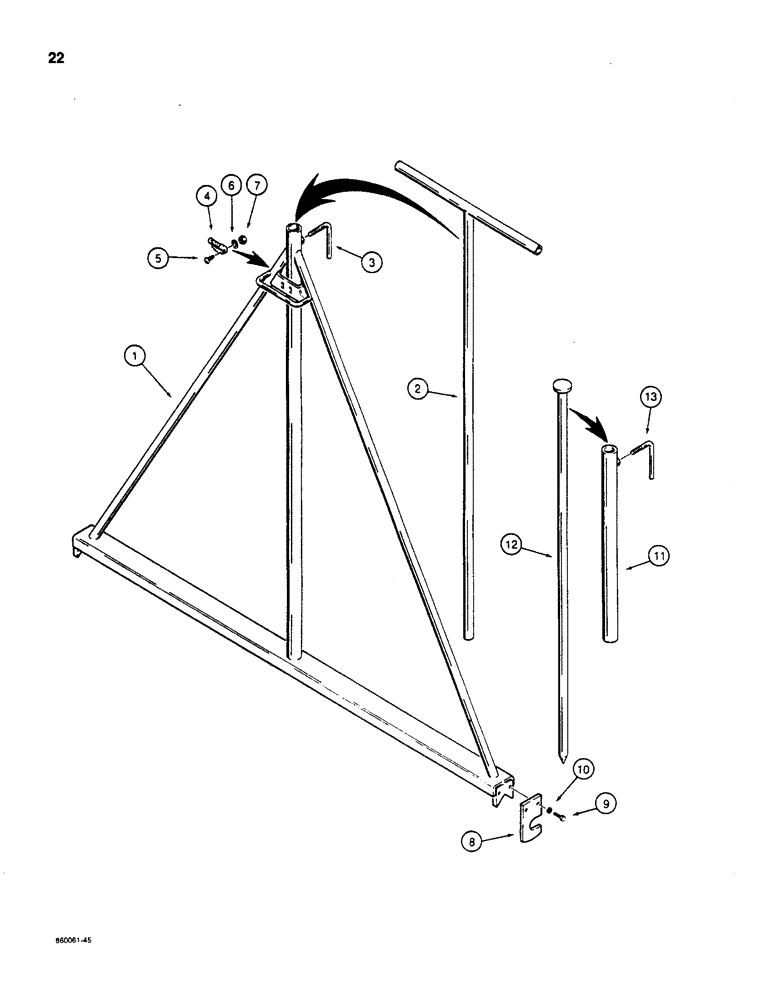

Запчасти Case CASE (22) - DRILL STEM LEVEL FRAME

1

H521377

STEM

FRAME - drill stem level

1шт.

2

H521385

HANDLE

- frame

1шт.

3

H71472

TUBE,0.375" OD x 3.25, 2.25" L

LOCK - handle adjustment

1шт.

4

H346015

LEVEL

- frame

1шт.

5

182-8

SCREW

- machine, pan head slotted, No. 4 - 40 NC x 5/8"

2шт.

6

192-103

LOCK WASHER,#4

WASHER - light lock, No. 4

2шт.

7

129-13

NUT,#4-40

2шт.

8

H92544

GUIDE

- drill stem

2шт.

9

113-103

BOLT,Hex, 5/16" - 18 x 1", Gr 5

4шт.

10

192-20

LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND

WASHER, LOCK, 5/16"

4шт.

11

H511139

TUBE

- guide anchor

2шт.

12

H511121

GUIDE

SHAFT - guide anchor

2шт.

13

H71472

TUBE,0.375" OD x 3.25, 2.25" L

LOCK - tube adjustment

2шт.
