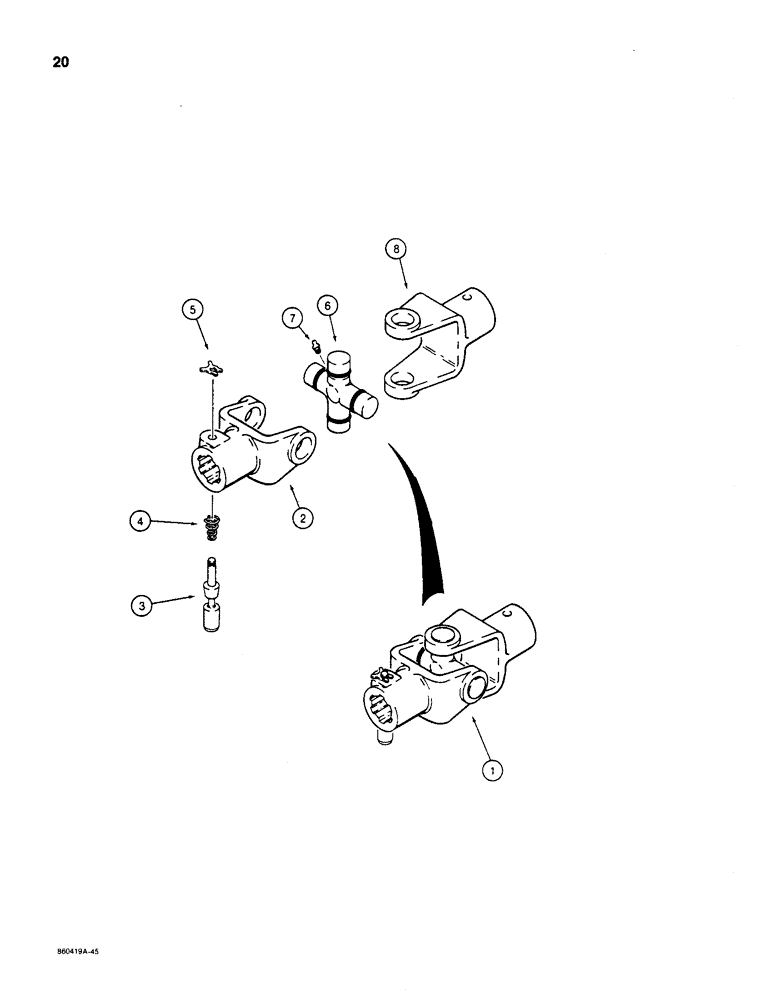

Запчасти Case CASE (20) - ATTACHMENT UNIVERSAL JOINT

1

H511113

JOINT

ASSEMBLY - universal, complete assembly not available, service with individual components listed below, Includes: Ref. 1 - 8

1шт.

H71142

YOKE

ASSEMBLY - splined, Includes: Ref. 2 - 5

1шт.

2

NSS

NOT SOLD SEPARAT

YOKE - splined

1шт.

H658179

SET OF PARTS

KIT - universal joint retaining, Includes: Ref. 3 - 5

1шт.

H658179 KIT HAS 1-3/4" LONG PIN. IF CUSTOMER PIN IS 2 1/4", KIT IS 182951A1. PER VENDOR, 182591A1 IS CORRECT KIT FOR THE H511113 U-JOINT ASSY.

1шт.

3

NSS

NOT SOLD SEPARAT

PIN - clevis, retainer

1шт.

4

NSS

NOT SOLD SEPARAT

SPRING - retainer

1шт.

5

NSS

NOT SOLD SEPARAT

RETAINER - pin

1шт.

H71167

JOURNAL

CROSS ASSEMBLY - universal joint, Includes: Ref. 6 and 7

1шт.

6

NSS

NOT SOLD SEPARAT

CROSS - universal joint

1шт.

7

219-11

LUBE NIPPLE,1/4" - 28 NPTF

GREASE FITTING - straight, 1/4" - 28 NF taper

1шт.

8

H71159

YOKE

- boring attachments

1шт.
