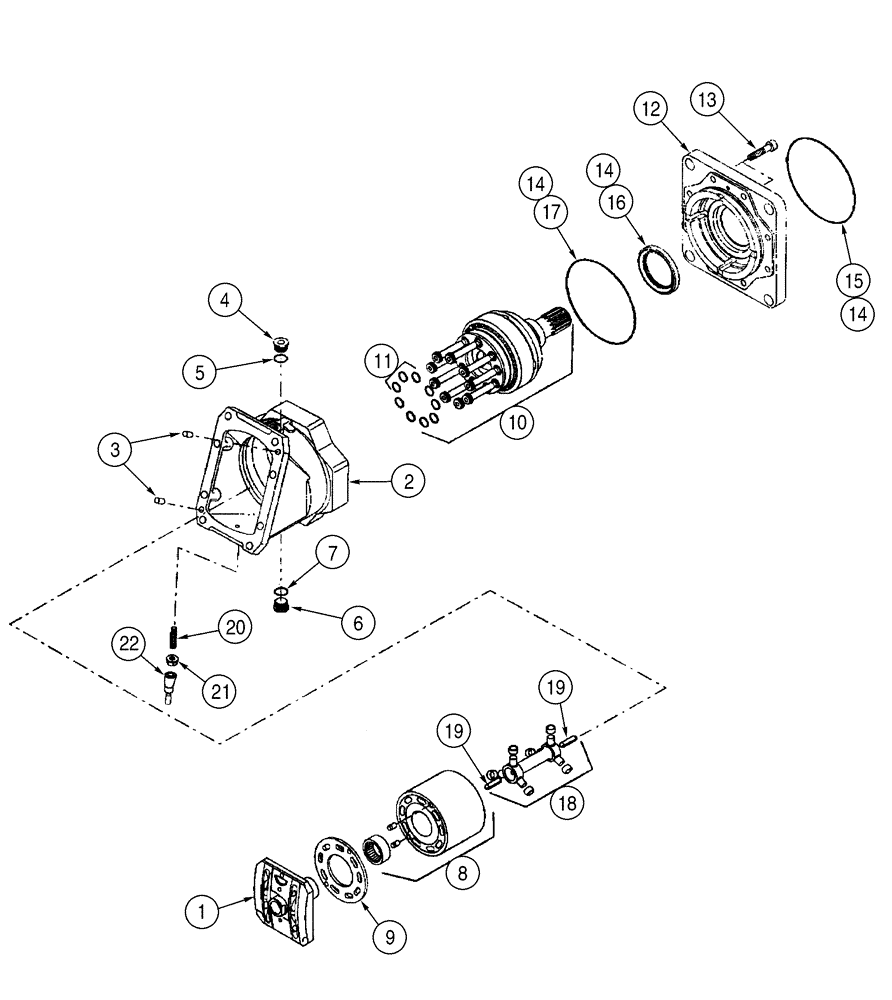

Запчасти Case 960 (06-34) - MOTOR ASSY GROUND DRIVE (06) - POWER TRAIN

385343A2

MOTOR

Includes 6-81, 6-83

1шт.

1

434265A1

FLANGE

1шт.

2

NSS

NOT SOLD SEPARAT

Housing

1шт.

3

F23124

AXLE PIN

2шт.

4

9841223

PLUG,1-1/16" - 12 ORB

Incl. 5

1шт.

5

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

1шт.

6

9841223

PLUG,1-1/16" - 12 ORB

Incl. 7

1шт.

7

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

1шт.

8

434267A1

BLOCK ASSY.

Cylinder Block

1шт.

9

434268A1

PLATE

1шт.

10

434281A1

SHAFT ASSY.

Includes 11

1шт.

11

434290A1

KIT

Piston Ring Kit

1шт.

12

434282A1

HOUSING, BEARING

1шт.

13

864-8025

HEX SOC SCREW,M8 x 25mm, Cl 8.8

8шт.

14

434287A1

KIT

Includes 15 - 17

1шт.

15

434266A1

O-RING

1шт.

16

NSS

NOT SOLD SEPARAT

Seal

1шт.

17

NSS

NOT SOLD SEPARAT

O-Ring

1шт.

18

434288A1

KIT

Shaft, Includes 19

1шт.

19

434289A1

PIN

2шт.

20

434292A1

SET SCREW

1шт.

21

434293A1

SPECIAL NUT

1шт.

22

434294A1

CAP

1шт.
