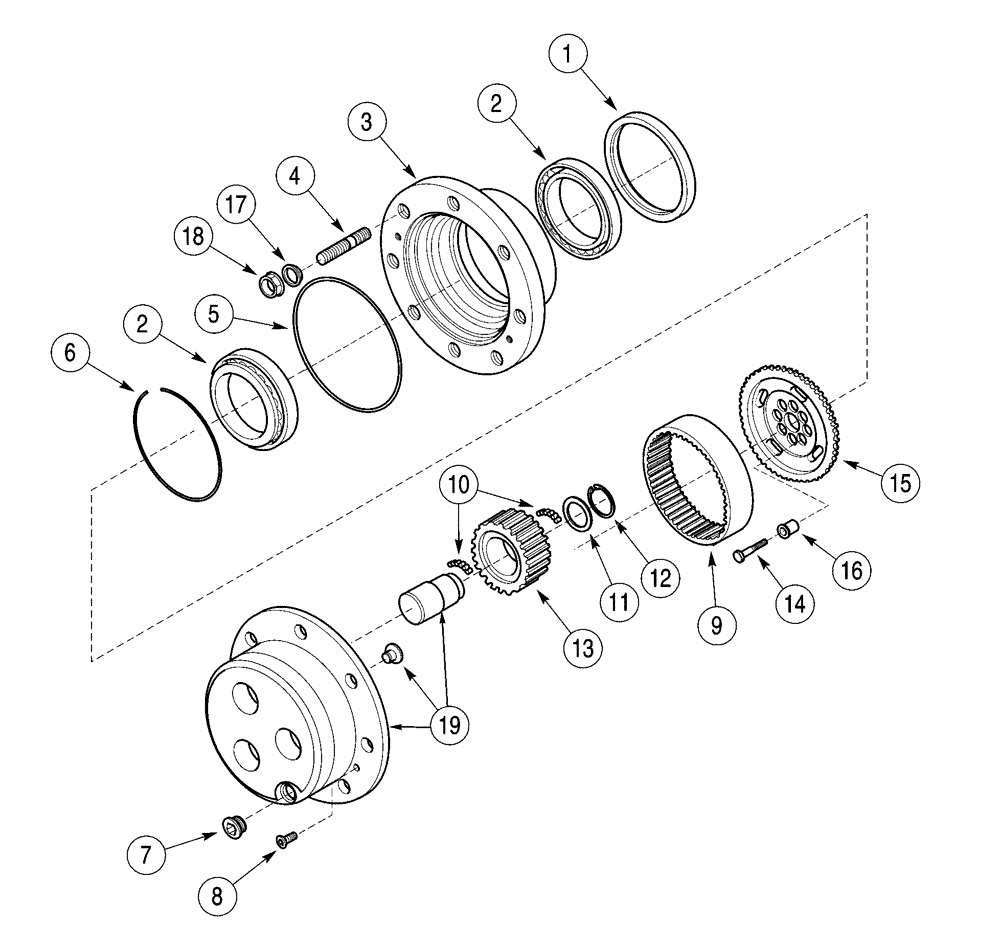

Запчасти Case 960 (06-24) - AXLE, FRONT HUB, WHEEL AND PLANETARY CARRIER (06) - POWER TRAIN

393982A1

AXLE, FRONT

Includes 6-51 - 6-63

1шт.

1

247546A1

OIL SEAL,150mm ID x 180mm OD x 14.50mm W

2шт.

2

K395101

TAPERED BEARING,109.5mm ID x 126mm x 21.4mm L

4шт.

3

410023A1

HUB

2шт.

4

1349196C1

STUD

16шт.

5

100552A1

O-RING,215.57mm ID x 220.81mm OD x 2.62mm Thk

2шт.

6

100559A1

SPECIAL RING

2шт.

7

100557A1

PLUG, DRAIN,M30 x 2

2шт.

8

K395082

SCREW,M8 x 20mm

M8 x 20

4шт.

9

247548A1

RING GEAR

Planetary Ring

2шт.

10

247550A1

NEEDLE BEARING,5 mm OD x 10 mm

Package Of 10

336шт.

11

247556A1

THRUST WASHER,35.1mm ID x 45mm OD x 2.4mm Thk

6шт.

12

247557A1

RING, SNAP

RING SNAP

6шт.

13

247551A1

SUN GEAR

6шт.

14

353361A1

LOCK BOLT

M12 x 45

12шт.

15

247555A1

CROWN WHEEL

Wheel

2шт.

16

353362A1

CENTERING RING

12шт.

17

86981718

LOCK WASHER,M20.5, Spring

16шт.

18

86981719

WHEEL NUT,Wheel, Flg, M20 x 1.5

M20

16шт.

19

247549A1

HOUSING

Planetary Gear Carrier

2шт.
