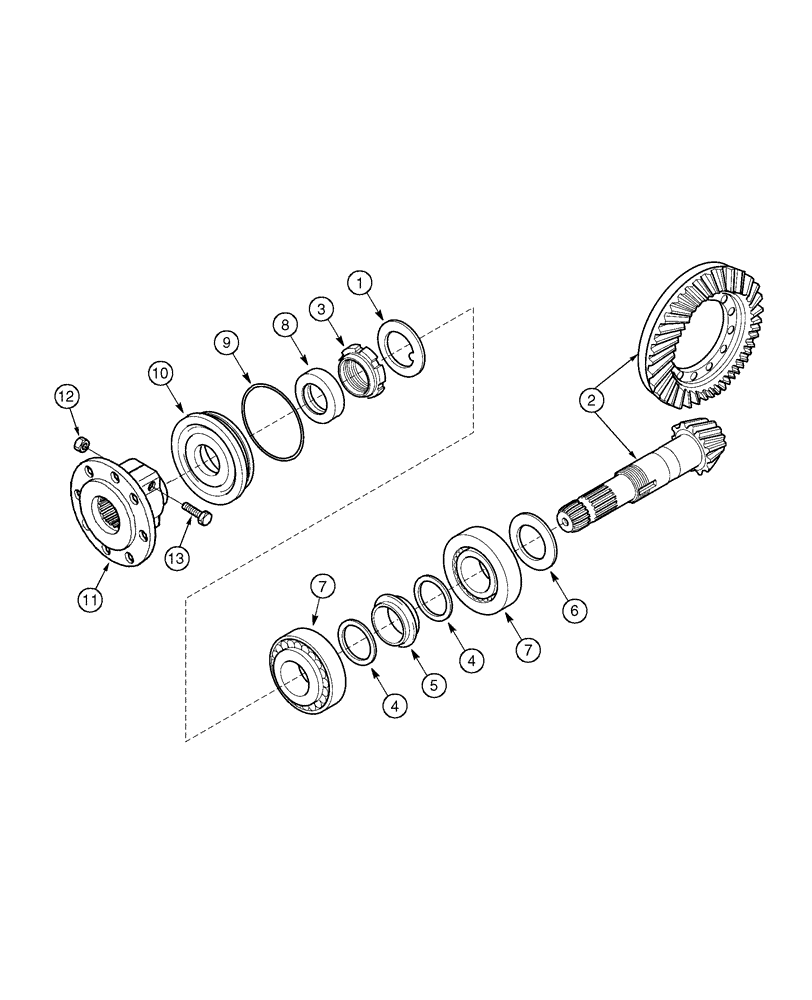

Запчасти Case 960 (06-20) - AXLE, FRONT GEAR, BEVEL AND PINION SET (06) - POWER TRAIN

393982A1

AXLE, FRONT

Front, Includes 6-51 - 6-63

1шт.

418227A1

KIT

Bevel Gear Set, Includes 1 - 5

1шт.

1

N7536

WASHER,41mm ID x 62mm OD x 2mm Thk

1шт.

2

410025A1

GEAR

1шт.

3

K261014

RING NUT,M40 x 1.5

1шт.

4

1349059C1

WASHER,40.5mm ID x 50mm OD x 2mm Thk

2шт.

5

1349058C1

SPACER

Collapsible

1шт.

6

140954A1

SHIM,2.50mm Thk

(0.098")

1шт.

6

140953A1

SHIM,2.60mm Thk

(0.102")

1шт.

6

140951A1

SHIM,2.70mm Thk

(0.106")

1шт.

6

140949A1

SHIM,2.80mm Thk

(0.110")

1шт.

6

140948A1

SHIM,2.90mm Thk

(0.114")

1шт.

6

140943A1

SHIM,3.00mm Thk

(0.118")

1шт.

6

140944A1

SHIM,3.10mm Thk

(0.122")

1шт.

6

140945A1

SHIM,3.20mm Thk

(0.125")

1шт.

6

140946A1

SHIM,3.30mm Thk

(0.129")

1шт.

6

140947A1

SHIM,3.40mm Thk

(0.133")

1шт.

7

K395090

TAPERED BEARING,40mm ID x 90mm OD

2шт.

8

K262143

OIL SEAL,16mm W, 35mm ID x 52mm OD

1шт.

9

238-5152

O-RING,0.103" Thk x 3.237" ID, -152, Cl 5, 75 Duro

1шт.

10

128570A1

FLANGE

Oil Seal

1шт.

11

410026A1

FLANGE

1шт.

12

K965414

NUT

M10

2шт.

13

514-723

BOLT,Hex, M10 x 1.25 x 60mm, Cl 8.8

M10 x 60

2шт.
