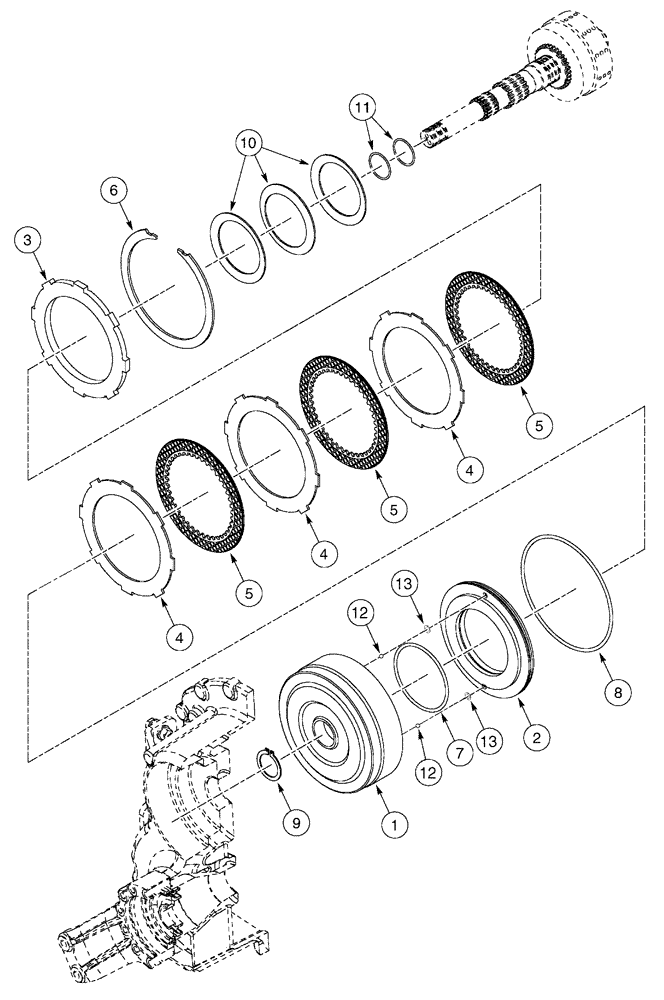

Запчасти Case 960 (06-16) - TRANSMISSION CLUTCH, DRIVE RATIO (06) - POWER TRAIN

358034A2

TRANSMISSION

Includes 6-37 - 6-49, 7-3

1шт.

1

363459A1

CLUTCH HOUSING

1шт.

2

363460A1

PISTON

1шт.

3

363463A1

BACK PLATE

1шт.

4

1285974C1

BRAKE PLATE

Master Clutch Separator

3шт.

5

1285975C2

CLUTCH DISC

CLUTCH DISK , Master Clutch Friction

3шт.

6

1963876C1

SNAP RING,249mm OD, Internal

1шт.

7

238-5160

O-RING,0.103" Thk x 5.25" ID, -160, Cl 5, 75 Duro

1шт.

8

238-5174

O-RING,0.103" Thk x 8.737" ID, -174, Cl 5, 75 Duro

1шт.

9

800-1152

SNAP RING,M52, External

1шт.

10

93129C1

BELLEVILLE WASHER

3шт.

11

K261826

SEAL,0.103" Thk x 1.862" ID, -134, Cl 5, 75 Duro

2шт.

12

511-1060

BALL,6mm Dia

2шт.

13

408498A1

RING

External

2шт.
