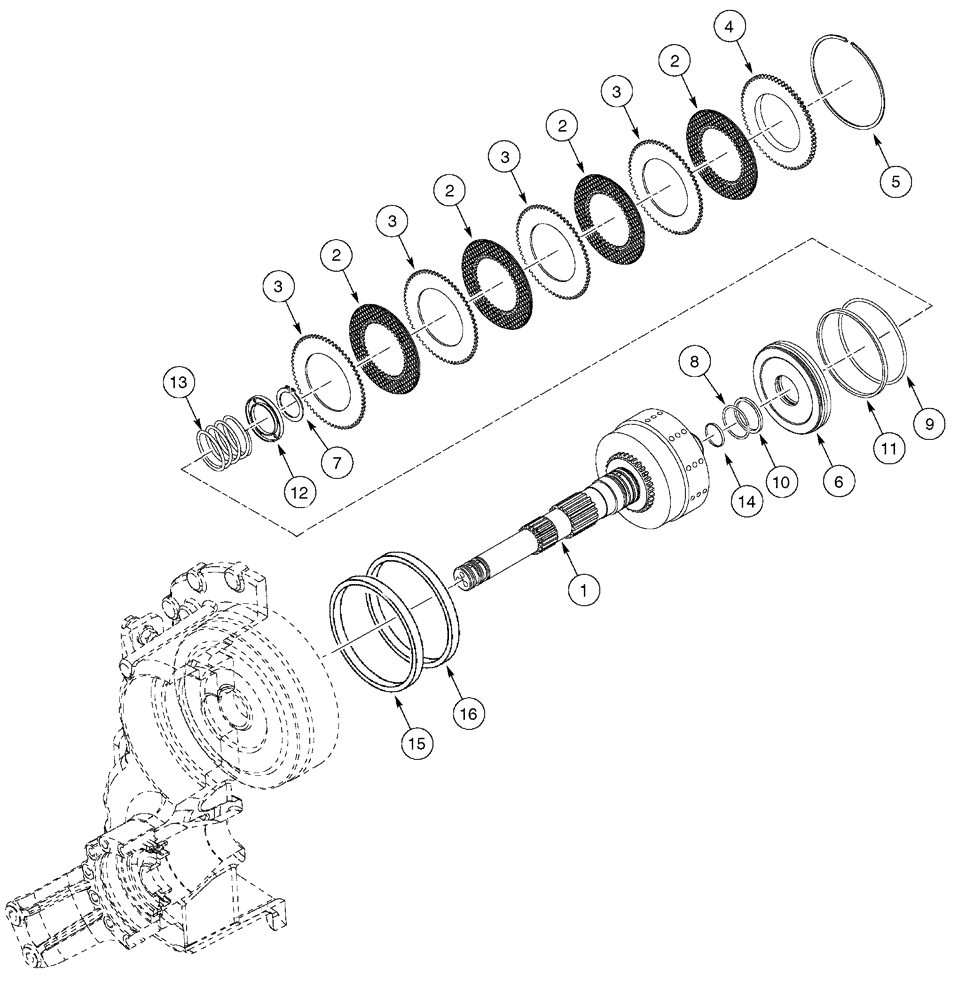

Запчасти Case 960 (06-15) - TRANSMISSION CLUTCH, DIRECT DRIVE (06) - POWER TRAIN

358034A2

TRANSMISSION

Includes 6-37 - 6-49, 7-3

1шт.

1

408482A1

SHAFT

Clutch

1шт.

2

345334A1

FACING

4шт.

3

345335A2

PLATE

4шт.

4

345336A1

CLUTCH DRIVING PLATE

Clutch

1шт.

5

345337A1

RING

1шт.

6

329889A1

PISTON

1шт.

7

100-16175

SNAP RING,#175, Ext

1шт.

8

238-5137

O-RING,0.103" Thk x 2.05" ID, -137, Cl 5, 75 Duro

1шт.

9

238-5158

O-RING,0.103" Thk x 4.737" ID, -158, Cl 5, 75 Duro

1шт.

10

A159297

SEAL,47.2mm ID x 54.1mm OD x 3.1mm Thk

SEALRING , Clutch Piston

1шт.

11

329896A1

SEAL,128.35mm ID x 135.63mm OD x 2.92mm Thk

1шт.

12

A188044

RETAINER

Piston Return Spring

1шт.

13

A188080

SPRING

Piston Return

1шт.

14

408480A1

BUSHING

1шт.

15

408493A1

BUSHING

1шт.

16

408494A1

BUSHING

1шт.
