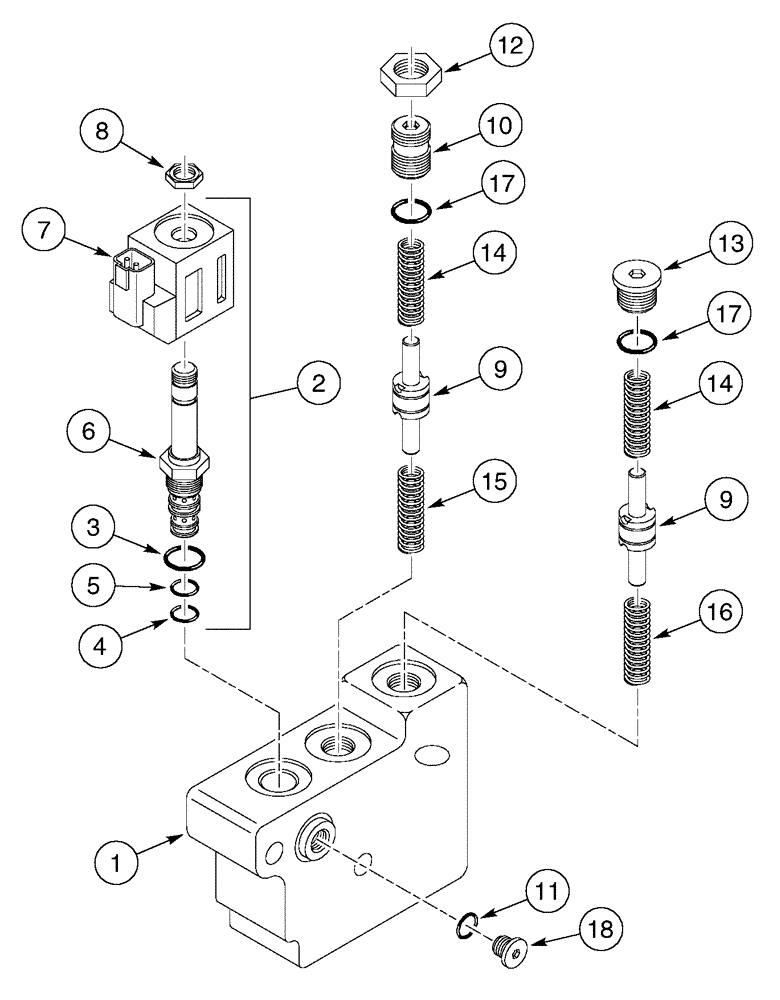

Запчасти Case 960 (06-12) - TRANSMISSION VALVE, BRAKE (06) - POWER TRAIN

358034A2

TRANSMISSION

Includes 6-37 - 6-49, 7-3

1шт.

383591A2

VALVE, CONTROL

Includes 1 - 18

1шт.

1

NSS

NOT SOLD SEPARAT

Housing

1шт.

2

349295A1

SOLENOID VALVE

Includes 3 - 8

1шт.

3

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1шт.

4

238-5013

O-RING,0.07" Thk x 0.426" ID, -13, Cl 5, 75 Duro

1шт.

5

238-5014

O-RING,0.07" Thk x 0.489" ID, -14, Cl 5, 75 Duro

1шт.

6

NSS

NOT SOLD SEPARAT

Valve, Check

1шт.

7

298614A1

SOLENOID

Solenoid

1шт.

8

349292A1

JAM NUT,Hex, 1/2" - 2, RH Thd

1шт.

9

386539A1

SPOOL

Regulator

2шт.

10

233780A2

PLUG

Adjusting, Includes 17

1шт.

11

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1шт.

12

218-1278

BHD LOCK NUT,Blkhd, 3/4"-16

1шт.

13

71100209

PLUG,Hex Soc, 3/4"-16 ORB

Incl Ref 17

1шт.

14

244946A1

SPRING

2шт.

15

244947A1

SPRING

1шт.

16

383590A2

TENSION SPRING

1шт.

17

238-5114

O-RING,0.103" Thk x 0.612" ID, -114, Cl 5, 75 Duro

2шт.

18

278548

PLUG,Hex, 7/16"-20 ORB

Incl 11

1шт.
