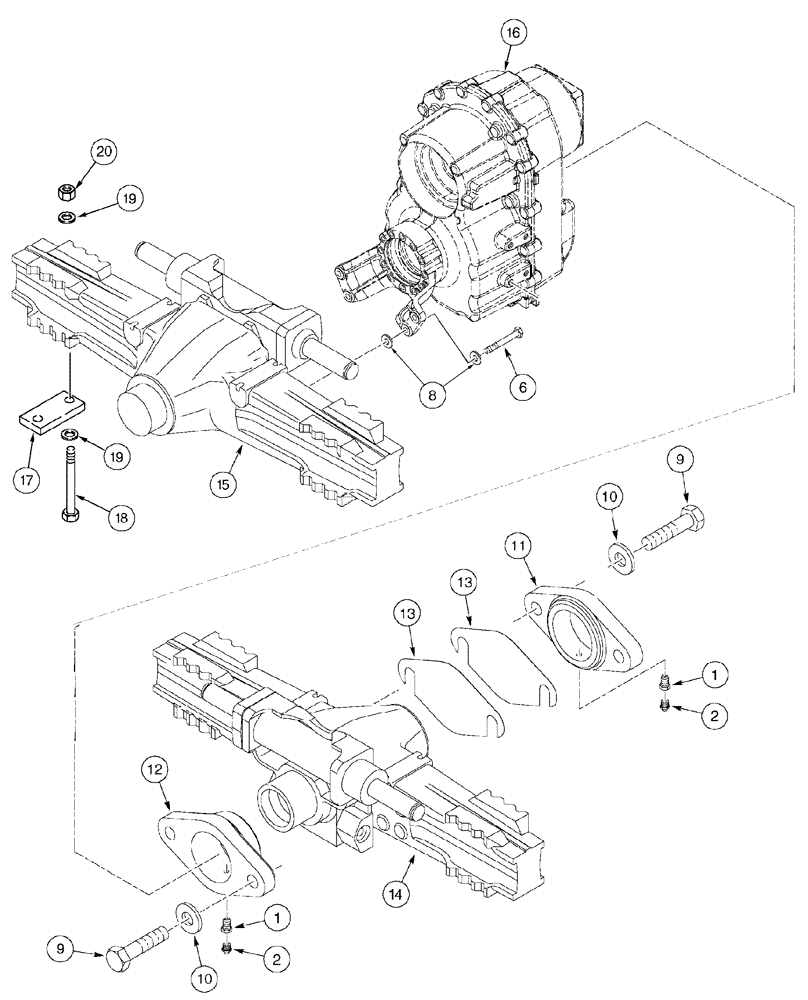

Запчасти Case 960 (06-10) - MOUNTING AXLE AND TRANSMISSION (06) - POWER TRAIN

1

D136218

SCREW

Locating

2шт.

2

219-17

LUBE NIPPLE,3/16" NPTF

2шт.

6

827-12100

BOLT,Hex, M12 x 1.75 x 100mm, Cl 10.9

4шт.

8

896-15012

WASHER,13.5mm ID x 28mm OD x 4mm Thk

13,5 x 28 x 4 mm

4шт.

9

26-2048

BOLT,Hex, 1-1/4" - 7 x 3", Gr 8

1-1/4 x 3

4шт.

10

H426858

WASHER

1-1/4

4шт.

11

H433408

TRUNNION

Front

1шт.

12

407398A1

TRUNNION

Rear

1шт.

13

H433359

SHIM,1.52mm Thk

2шт.

14

393982A1

AXLE, FRONT

Front, See Page(s) 6-51 - 6-63

1шт.

15

393983A1

AXLE, FRONT

Rear, See Page(s) 6-67 - 6-79

1шт.

16

358034A2

TRANSMISSION

See Page(s) 6-37 - 6-49

1шт.

17

387837A1

BAR

Clamp

2шт.

18

413-16160

BOLT,Hex, 1" - 8 x 10", Gr 5

1 x 10

4шт.

19

H426833

WASHER

1-1/16 x 1-7/8 x 9/64, Hardened

8шт.

20

232-41116

LOCK NUT,1"-8, GC

4шт.
