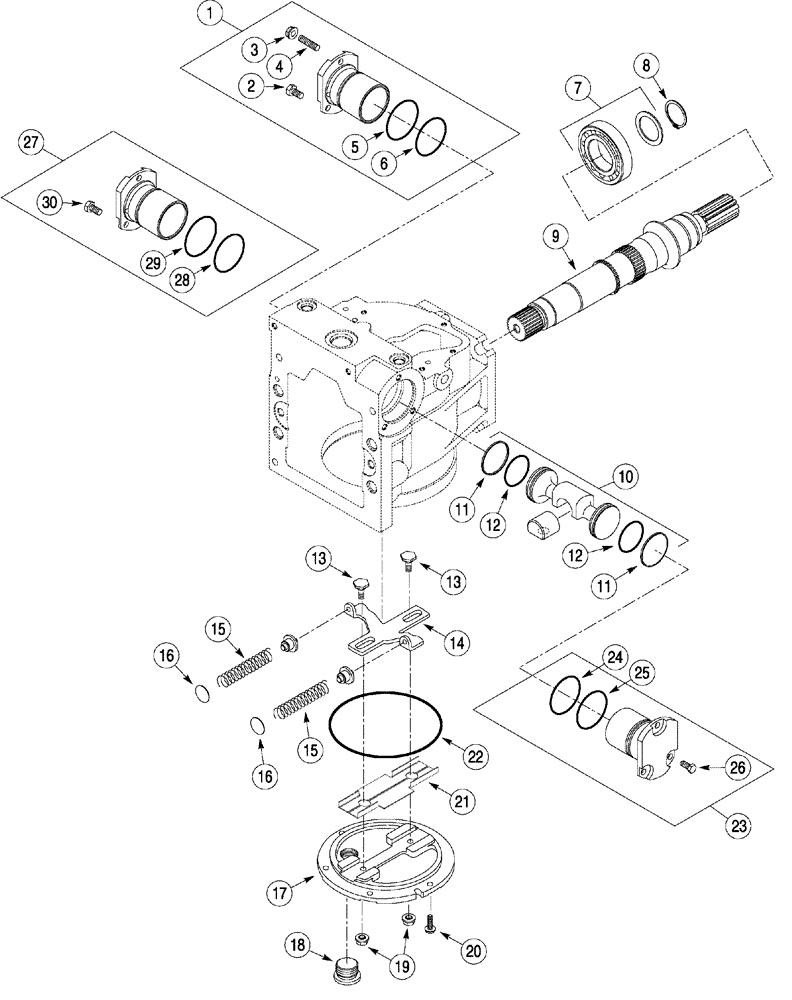

Запчасти Case 960 (06-08) - PUMP ASSY, TANDEM (06) - POWER TRAIN

383978A2

PUMP

Includes 6-9 - 6-33

1шт.

383977A2

PUMP

Ground Drive, Rear

1шт.

383976A2

PUMP

Attachment Drive, Front

1шт.

1

434305A1

KIT

Servo Cylinder, Includes 2 - 6, 383976A2 Pump Only

1шт.

2

627-8016

BOLT,Hex, M8 x 1.25 x 16mm, Cl 10.9, Full Thd

383976A2 Pump Only

3шт.

3

105649A1

NUT

383976A2 Pump Only

1шт.

4

107835A1

ADJUSTMENT SCREW

383976A2 Pump Only

1шт.

5

238-7135

O-RING,0.103" Thk x 1.925" ID, -135, Cl 7, 75 Duro

1шт.

6

434306A1

O-RING

383976A2 Pump Only

1шт.

7

434334A1

ROLLER BEARING

1шт.

8

100-11156

SNAP RING,#156, Ext

1шт.

9

434333A1

SHAFT

14 T

1шт.

10

434308A1

KIT

Servo Piston, Includes 11, 12

1шт.

11

434309A1

O-RING

2шт.

12

238-5127

O-RING,0.103" Thk x 1.424" ID, -127, Cl 5, 75 Duro

2шт.

13

434302A1

POST

2шт.

14

434301A1

LEVEL

1шт.

15

434303A1

SPRING

2шт.

16

419348A1

SHIM

2шт.

17

434300A1

COVER

Slide

1шт.

18

9841223

PLUG,1-1/16" - 12 ORB

1шт.

19

105649A1

NUT

2шт.

20

105650A1

SCREW

6шт.

21

434304A1

INSERT

1шт.

22

238-5160

O-RING,0.103" Thk x 5.25" ID, -160, Cl 5, 75 Duro

1шт.

23

434307A1

KIT

Servo Cylinder, Includes 24 - 26

1шт.

24

434306A1

O-RING

1шт.

25

238-7135

O-RING,0.103" Thk x 1.925" ID, -135, Cl 7, 75 Duro

1шт.

26

627-8016

BOLT,Hex, M8 x 1.25 x 16mm, Cl 10.9, Full Thd

3шт.

27

434307A1

KIT

Servo Cylinder, Includes 28 - 30, 383977A2 Pump Only

1шт.

28

434306A1

O-RING

383977A2 Pump Only

1шт.

29

238-7135

O-RING,0.103" Thk x 1.925" ID, -135, Cl 7, 75 Duro

383977A2 Pump Only

1шт.

30

627-8016

BOLT,Hex, M8 x 1.25 x 16mm, Cl 10.9, Full Thd

383977A2 Pump Only

3шт.
