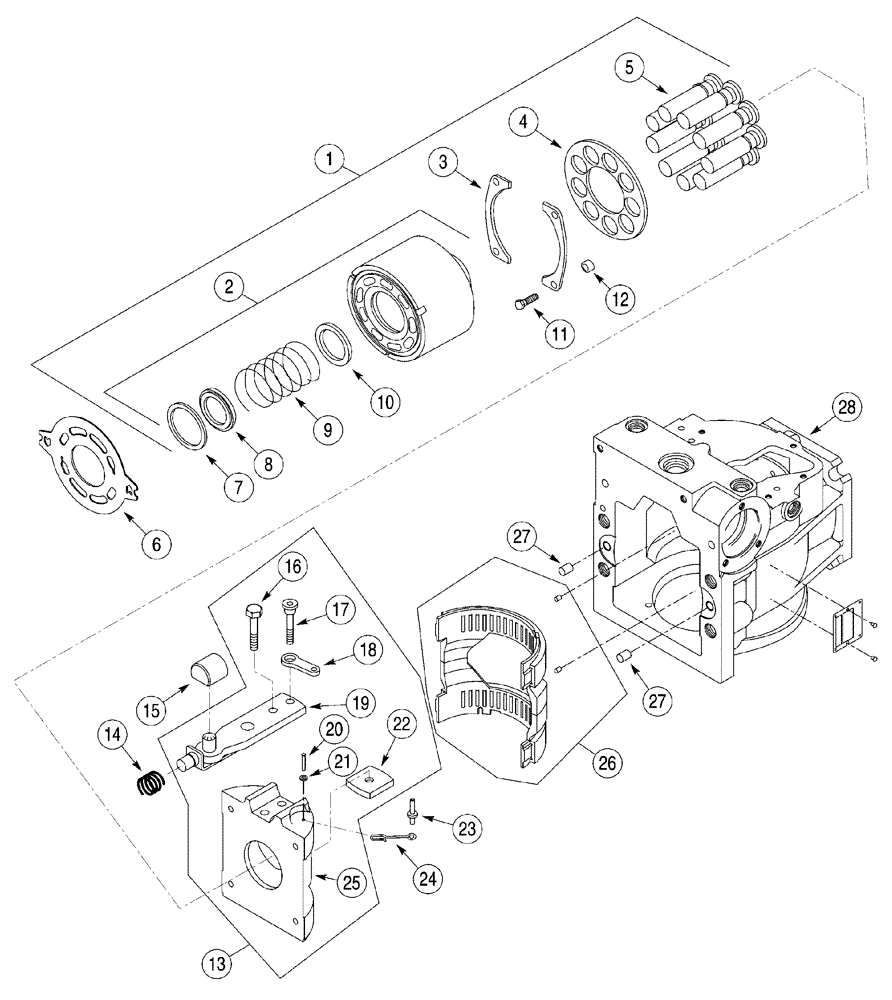

Запчасти Case 960 (06-07) - PUMP ASSY, TANDEM (06) - POWER TRAIN

383978A2

PUMP

Includes 6-9 - 6-33

1шт.

383977A2

PUMP

Ground Drive, Rear

1шт.

383976A2

PUMP

Attachment Drive, Front

1шт.

1

434339A1

KIT

Cylinder, Includes 2 - 5, 11, 12

1шт.

2

NSS

NOT SOLD SEPARAT

Cylinder Assy, Block, Includes 7 - 10

1шт.

3

NSS

NOT SOLD SEPARAT

Retainer

2шт.

4

NSS

NOT SOLD SEPARAT

Guide

1шт.

5

NSS

NOT SOLD SEPARAT

Piston Assy, Welded

9шт.

6

434298A1

PLATE

1шт.

7

NSS

NOT SOLD SEPARAT

Ring, Retaining

1шт.

8

NSS

NOT SOLD SEPARAT

Spring

1шт.

9

NSS

NOT SOLD SEPARAT

Spring

1шт.

10

NSS

NOT SOLD SEPARAT

Spring

1шт.

11

NSS

NOT SOLD SEPARAT

Screw

4шт.

12

NSS

NOT SOLD SEPARAT

Spacer

4шт.

383978A2

PUMP

Includes 6-9 - 6-33

1шт.

383977A2

PUMP

Ground Drive, Rear

1шт.

383976A2

PUMP

Attachment Drive, Front

1шт.

13

434299A1

PLATE ASSY.

Variable Swashplate, Includes 14 - 25

1шт.

14

105643A1

SPRING

1шт.

15

105656A1

BLOCK

1шт.

16

NSS

NOT SOLD SEPARAT

Screw

1шт.

17

NSS

NOT SOLD SEPARAT

Screw

1шт.

18

NSS

NOT SOLD SEPARAT

Link, Feedback

1шт.

19

NSS

NOT SOLD SEPARAT

Arm Assy, Servo

1шт.

20

NSS

NOT SOLD SEPARAT

Pin, Spiral

1шт.

21

NSS

NOT SOLD SEPARAT

Washer

1шт.

22

NSS

NOT SOLD SEPARAT

Guide, Swashplate

1шт.

23

370465A1

PIN

1шт.

24

183868A1

LINK

1шт.

25

NSS

NOT SOLD SEPARAT

Plate, Variable Swashplate

1шт.

26

434297A1

BEARING ASSY

1шт.

27

F23124

AXLE PIN

2шт.

28

NSS

NOT SOLD SEPARAT

Housing

1шт.
