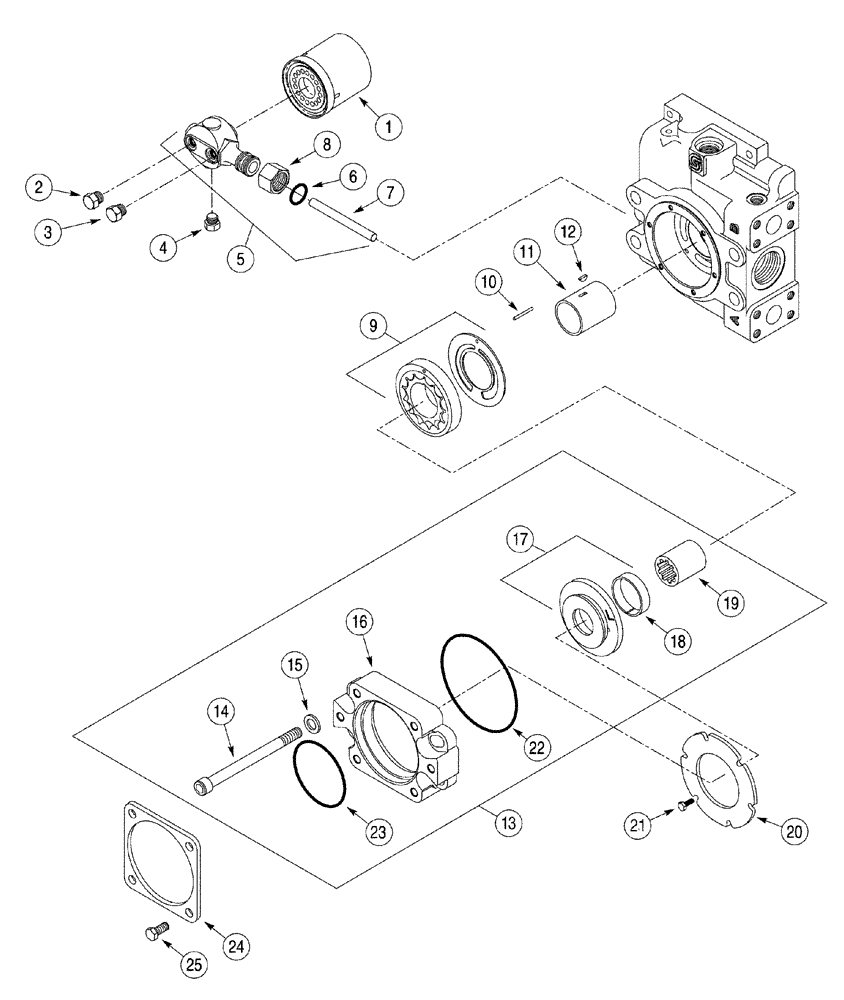

Запчасти Case 960 (06-06) - PUMP ASSY, TANDEM (06) - POWER TRAIN

383978A2

PUMP

Includes 6-9 - 6-33

1шт.

383977A2

PUMP

Ground Drive, Rear

1шт.

383976A2

PUMP

Attachment Drive, Front

1шт.

1

414348A1

FILTER

1шт.

2

76349

PLUG,9/16" - 18 ORB

1шт.

3

76349

PLUG,9/16" - 18 ORB

1шт.

4

76349

PLUG,9/16" - 18 ORB

1шт.

5

414347A1

KIT

1шт.

6

237-8016

O-RING,0.07" Thk x 1.171" ID, -16 Cl 8

1шт.

7

419351A1

TUBE

1шт.

8

419350A1

NUT

1шт.

9

434313A1

SET

Charge Pump

1шт.

10

37-1220

DOWEL,1/8" x 1 1/4"

1шт.

11

434314A1

SHAFT

1шт.

12

126-109

WOODRUFF KEY,#3, 1/8" x 1/2", HT

1шт.

13

434327A1

FLANGE

Includes 14 - 23, 383976A2 Front Pump Only

1шт.

13

434341A1

FLANGE

Includes 14 - 23, 383977A2 Rear Pump Only

1шт.

14

434331A1

SCREW

Socket Head

4шт.

15

434330A1

WASHER

4шт.

16

370476A1

ADAPTER

Flange, 383976A2 Front Pump Only

1шт.

16

434343A1

ADAPTER

Flange, 383977A2 Rear Pump Only

1шт.

17

370474A1

COVER ASSY

Pump, Includes 18

1шт.

18

105668A1

BUSHING

1шт.

19

434328A1

COUPLING

383976A2 Front Pump Only

1шт.

19

434342A1

COUPLING

383977A2 Rear Pump Only

1шт.

20

105679A1

LARGE PLATE

PLATE, LARGE

1шт.

21

628-6016

BOLT,Hex, M6 x 16mm, Cl 10.9, Full Thd

6шт.

22

238-5158

O-RING,0.103" Thk x 4.737" ID, -158, Cl 5, 75 Duro

1шт.

23

370460A1

O-RING

383976A2 Front Pump Only

1шт.

23

238-5042

O-RING,0.07" Thk x 3.239" ID, -42, Cl 5, 75 Duro

383977A2 Rear Pump Only

1шт.

24

434332A1

COVER

Cover, 383976A2 Front Pump Only

1шт.

24

N13258

PLATE

Cover, 383977A2 Rear Pump Only

1шт.

25

13-818

BOLT,Hex, 1/2" - 13 x 1-1/8", Gr 5, Full Thd

383976A2 Front Pump Only

4шт.

25

13-614

BOLT,Hex, 3/8" - 16 x 7/8", Gr 5, Full Thd

383977A2 Rear Pump Only

4шт.
