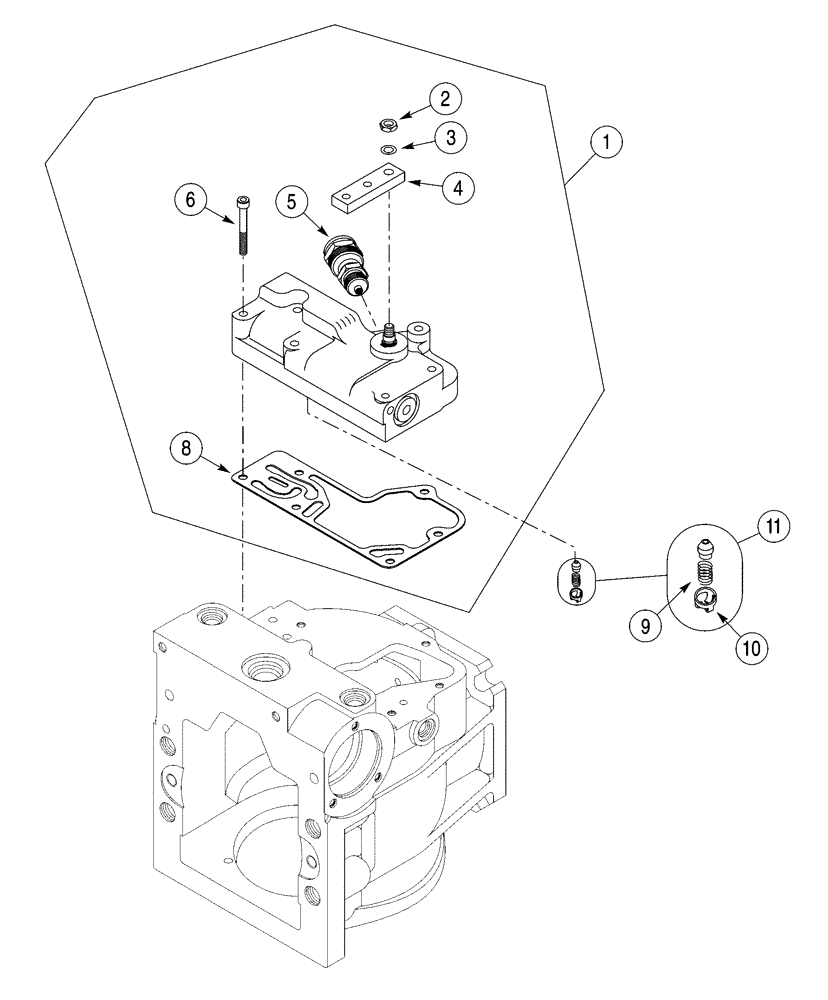

Запчасти Case 960 (06-05) - PUMP ASSY, TANDEM (06) - POWER TRAIN

383978A2

PUMP

Includes 383977A2, 383976A2, Includes 6-9 - 6-33

1шт.

383977A2

PUMP

Ground Drive, Rear

1шт.

383976A2

PUMP

Attachment Drive, Front

1шт.

1

434344A1

KIT

Includes 2 - 7, 383977A2 Pump Only

1шт.

1

434337A1

KIT

Includes 2 - 6, 383976A2 Pump Only

1шт.

2

NSS

NOT SOLD SEPARAT

Nut

1шт.

3

NSS

NOT SOLD SEPARAT

Washer, Lock

1шт.

4

NSS

NOT SOLD SEPARAT

Handle, Control

1шт.

5

105695A3

SWITCH

Neutral Start Switch

1шт.

6

105694A1

SCREW

6шт.

7

105674A1

SCREW

383977A2 Pump Only, Not Illustrated

2шт.

8

NSS

NOT SOLD SEPARAT

Gasket, Mounting

1шт.

9

NSS

NOT SOLD SEPARAT

Spring

1шт.

10

NSS

NOT SOLD SEPARAT

Spring

1шт.

11

105704A1

KIT

0,032, Includes 9, 10, 383976A2 Pump Only

1шт.

11

434345A1

KIT

Includes 9, 10, 383977A2 Pump Only

1шт.
