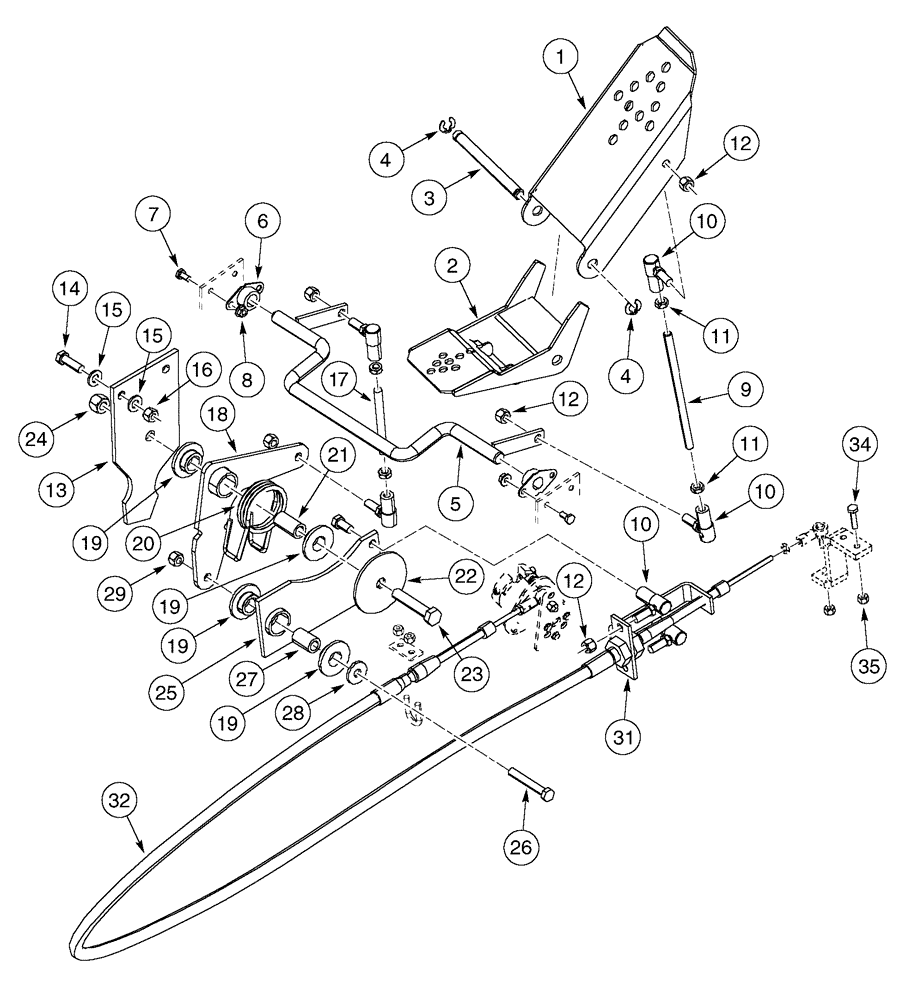

Запчасти Case 960 (06-02) - CONTROLS GROUND DRIVE (06) - POWER TRAIN

1

H403816

PEDAL

Forward Ground Drive Control

1шт.

2

H672181

PEDAL

Heel, Reverse Ground Drive Control

1шт.

3

H403840

PIN

1шт.

4

D143415

SNAP RING,0.50” ID, Klipring

1/2, Pedal Pin

2шт.

5

386226A1

SHAFT

Control

1шт.

6

H755785

FLANGED BEARING,15.88mm ID

Flange

2шт.

7

413-48

BOLT,Hex, 1/4" - 20 x 1/2", Gr 5

4шт.

8

231-5144

SERRATED NUT,Flg, USR, 1/4"-20

4шт.

9

398314A1

ROD

Pedal Control

1шт.

10

D38296

JOINT

3/8, Fem

6шт.

11

425-156

JAM NUT,Jam, 3/8"-24, G5

4шт.

12

232-4616

LOCK NUT,3/8"-24, GC

6шт.

13

382163A1

BRACKET

Bellcrank Mounting

1шт.

14

413-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

2шт.

15

496-21041

WASHER,13/32" x 13/16" x .089", HDN

6шт.

16

232-4116

NUT,3/8"-16, GC

2шт.

17

H439053

ROD

1шт.

18

H674224

PIVOT

Cable Drive

1шт.

19

D128616

BUSHING

Plastic

4шт.

20

H436303

SPRING

Centering

1шт.

21

H435694

SPACER

Bellcrank Pivot

1шт.

22

H436215

WASHER

13,4 x 80 x 3,4 mm

1шт.

23

413-840

BOLT,Hex, 1/2" - 13 x 2-1/2", Gr 5

1/2 x 2-1/2

1шт.

24

232-4118

NUT,1/2"-13, GC

1шт.

25

382162A1

LINK

1шт.

26

413-640

BOLT,Hex, 3/8" - 16 x 2-1/2", Gr 5

1шт.

27

H439075

SPACER

Bellcrank Pivot

1шт.

28

496-41041

WASHER,13/32" x 1 1/8" x .134"

Hardened

1шт.

29

232-4116

NUT,3/8"-16, GC

1шт.

30

414-612

BOLT,Hex, 3/8" - 24 x 3/4", Gr 5

2шт.

31

H439055

BRACKET

Drive Cable

1шт.

32

H674226

CABLE ASSY.

See Page(s) 6-3

1шт.

33

388055A2

LEVER

Pump

1шт.

34

413-416

BOLT,Hex, 1/4" - 20 x 1", Gr 5

2шт.

35

230-4214

LOCK NUT,1/4"-20, GA

2шт.
