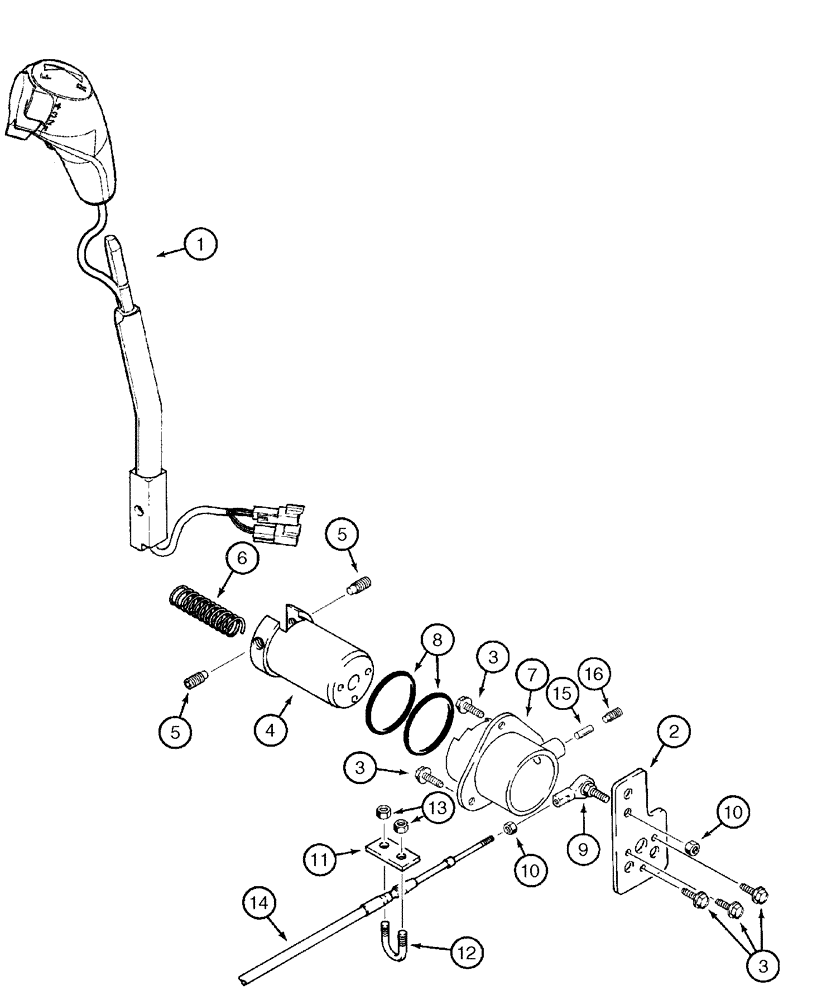

Запчасти Case 960 (06-01) - CONTROLS GROUND DRIVE (06) - POWER TRAIN

1

388484A1

HANDLE

1шт.

2

133602A1

LARGE PLATE

PLATE, LARGE

1шт.

3

H438153

SCREW,Hex Washer, #10 - 24 x 1/2"

No. 10 x 1/2

6шт.

4

136779A1

SHAFT

Control Pivot

1шт.

5

H438152

SET SCREW

Special

2шт.

6

H438122

SPRING

Locking

1шт.

7

H674569

ANCHOR

Control Handle

1шт.

8

S5625

O-RING,1.864" ID x 2.004" OD x 0.07"

2шт.

9

H358374

PIVOT,1/4" - 28 x 1-1/3"

1/4 NF, Fem, Cable End

2шт.

10

425-154

JAM NUT,Jam, 1/4"-28, G5

2шт.

11

H373779

LARGE PLATE

PLATE, LARGE

1шт.

12

H166421

HARDWARE

1шт.

13

232-4114

LOCK NUT,1/4"-20, GC

2шт.

14

H674226

CABLE ASSY.

See Page(s) 6-7

1шт.

15

H438119

PAD

Friction, Control Handle Mount

1шт.

16

H438151

SET SCREW

Special

1шт.
