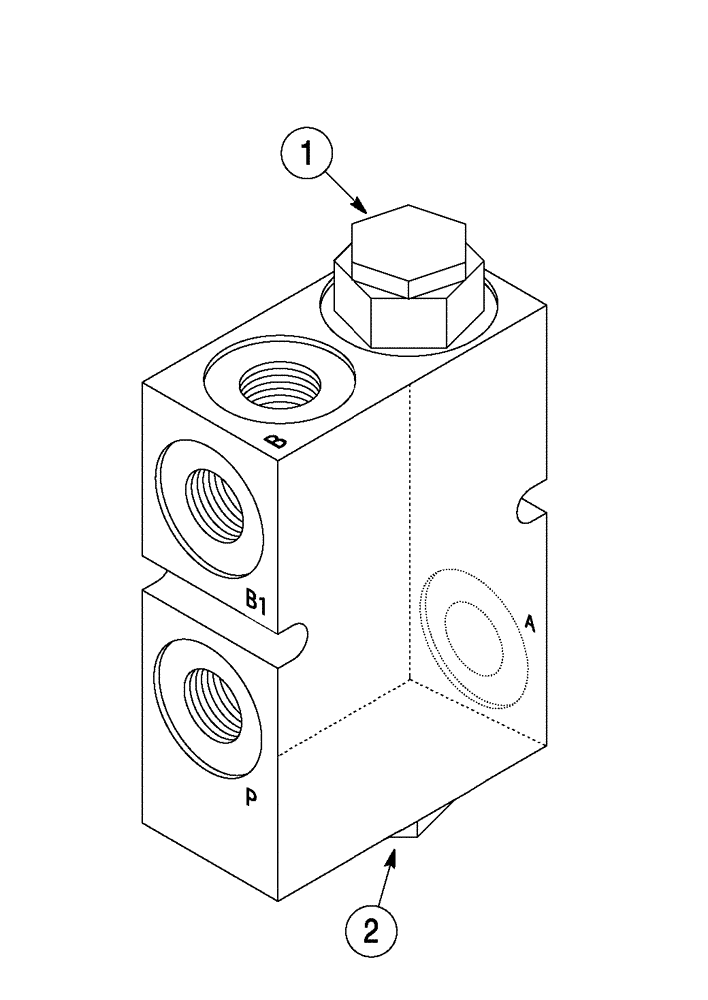

Запчасти Case 960 (05-11) - VALVE ASSY, LOCKOUT (05) - STEERING

H674608

VALVE

Lockout, Includes 1 - 3, For Mounting, See Page(s) 8-105

1шт.

1

130808A1

VALVE, PRESSURE RELI

EF

1шт.

2

130810A1

VALVE, PRESSURE RELI

EF

1шт.

3

130812A1

PISTON

Not Illustrated, Includes 110466A1

1шт.

110466A1

SEAL KIT

Seal, Includes 237-6008, 238-5012, L31330

1шт.

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1шт.

238-5012

O-RING,0.07" Thk x 0.364" ID, -12, Cl 5, 75 Duro

1шт.

L31330

BACK-UP RING,109mm ID x 128.81mm OD x 12mm Thk

1шт.

NSS

NOT SOLD SEPARAT

Ring

1шт.
