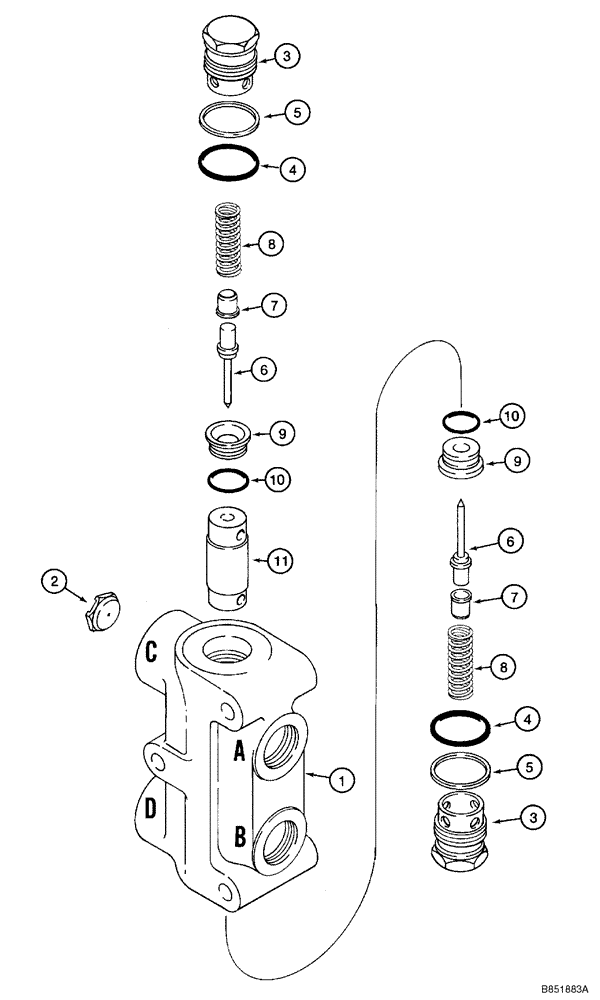

Запчасти Case 960 (05-10) - VALVE ASSY, LOCKOUT (05) - STEERING

H672547

VALVE

Steering, Trencher Boom Lift, Reel Carrier Lift, Includes 1 - 11, See Page(s) 5-19, 8-123, 8-127

1-2шт.

1

H267948

VALVE BODY

1шт.

2

H270603

ORIFICE

1шт.

A43525

PLUG

Includes 3 - 5

2шт.

3

NSS

NOT SOLD SEPARAT

Plug

1шт.

4

238-6116

O-RING,0.103" Thk x 0.737" ID, -116, Cl 6, 90 Duro

1шт.

5

S302062

BACK-UP RING

1шт.

6

F88777

PLUNGER

2шт.

7

N13488

EYE

2шт.

8

A43533

VALVE SPRING

2шт.

N13369

SEAT ASSY.

Poppet, Includes 9, 10

2шт.

9

NSS

NOT SOLD SEPARAT

Seat

1шт.

10

238-6016

O-RING,0.07" Thk x 0.614" ID, -16, Cl 6, 90 Duro

1шт.

11

N13489

PLUNGER

1шт.
