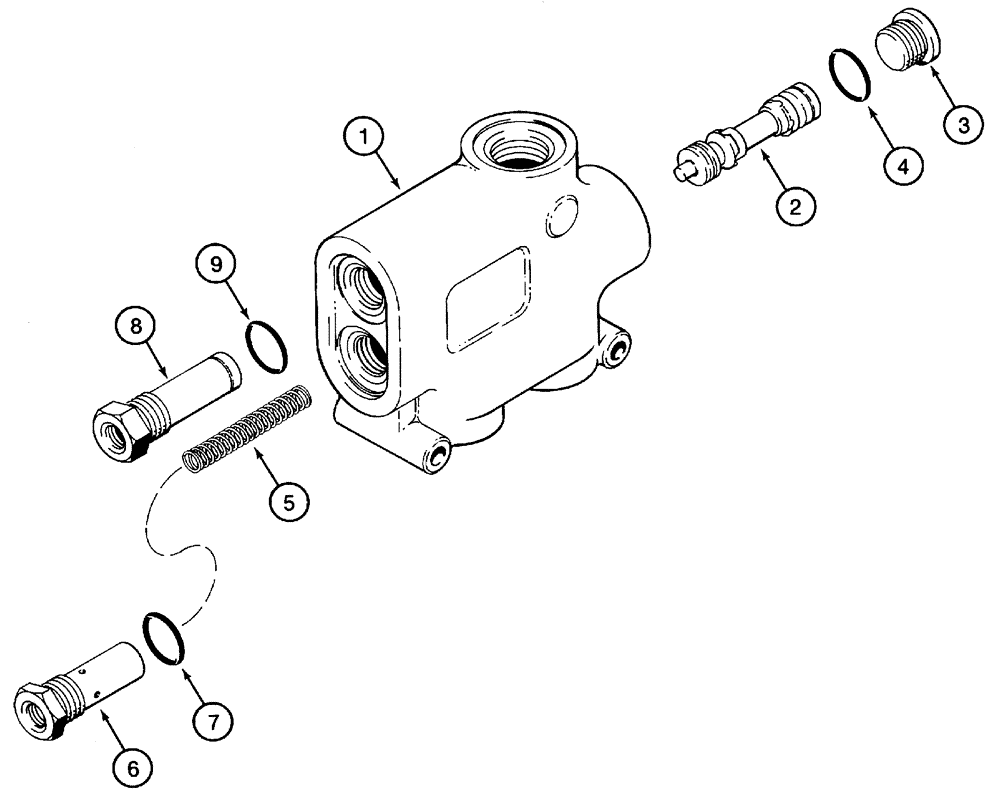

Запчасти Case 960 (05-09) - VALVE ASSY PRIORITY FLOW DIVIDER (05) - STEERING

H672904

VALVE

Includes 1 - 9, See Page(s) 5-9

1шт.

1

H436407

BODY

1шт.

2

H436366

SPOOL

Valve

1шт.

3

H436367

PLUG

Includes 4

1шт.

4

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1шт.

5

H436365

SPRING

1шт.

6

H436408

PLUG

1шт.

7

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1шт.

N7163

CARTRIDGE

Relief, Includes 8, 9

1шт.

8

NSS

NOT SOLD SEPARAT

Cartridge, Relief

1шт.

9

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1шт.
