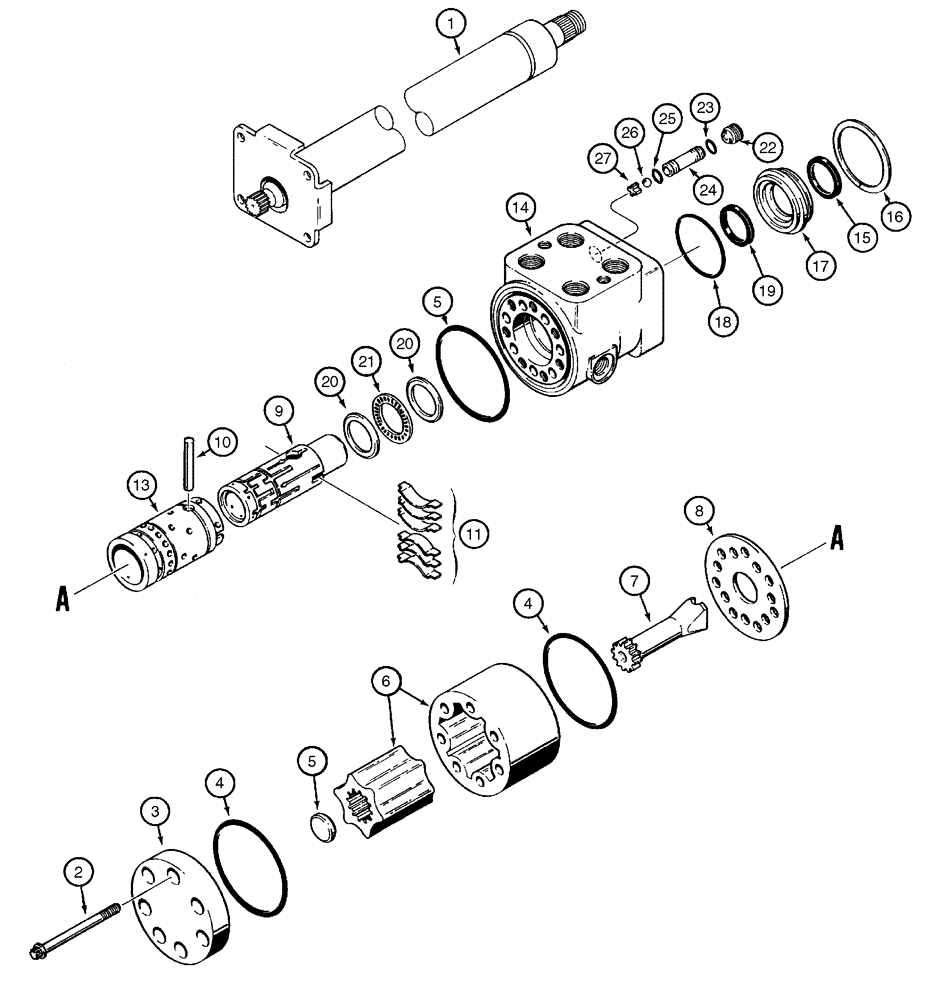

Запчасти Case 960 (05-07) - VALVE ASSY STEERING CONTROL (05) - STEERING

1

H672220

STEERING COLUMN

Component Parts Not Serviced Separately

1шт.

141535A1

VALVE

Steering Control, Includes 3 - 27

1шт.

2

371196A1

SCREW,5/16" x 1 3/4"

5/16 x 1-3/4

7шт.

3

135867A1

CAP

End

1шт.

135882A1

SEAL KIT

Seal, Includes 4, 15, 18, 19, 23, 25

1шт.

4

238-5040

O-RING,0.07" Thk x 2.864" ID, -40, Cl 5, 75 Duro

End Cap

3шт.

5

K964246

SPACER

Drive Shaft

1шт.

6

135868A1

ROTOR

1шт.

7

L30878

DRIVE SHAFT

Gerotor

1шт.

8

135869A1

PLATE

1шт.

9

NSS

NOT SOLD SEPARAT

Spool

1шт.

10

135874A1

PIN

1шт.

N14250

KIT

Set Of 6, Includes 11, 12

1шт.

11

L30889

SPRING

6шт.

12

NSS

NOT SOLD SEPARAT

Spacer, Not Illustrated, If Used

2шт.

13

NSS

NOT SOLD SEPARAT

Sleeve

1шт.

14

NSS

NOT SOLD SEPARAT

Body, Valve

1шт.

15

697494R91

OIL SEAL

1 ID, Outer

1шт.

16

S110169

WASHER

1шт.

17

S110170

BUSHING

1шт.

18

238-5225

O-RING,0.139" Thk x 1.859" ID, -225, Cl 5, 75 Duro

1шт.

19

201893H1

SEALING RING

Square Section, Outer

1шт.

20

D82804

RACE

Bearing, Thrust

2шт.

21

G13609

THRUST BEARING,25.4mm ID x 39.67mm OD x 1.98mm W

1шт.

22

D82805

SET SCREW

1шт.

23

238-5012

O-RING,0.07" Thk x 0.364" ID, -12, Cl 5, 75 Duro

Outer

1шт.

24

D82806

VALVE SEAT

Ball

1шт.

25

L30893

O-RING,1/16" Thk x 5/16" ID

Inner

1шт.

26

211-1310

BALL,5/16" Dia

5/16; 24, Chrome Alloy Steel

1шт.

27

L35368

RETAINER

Check Ball

1шт.
