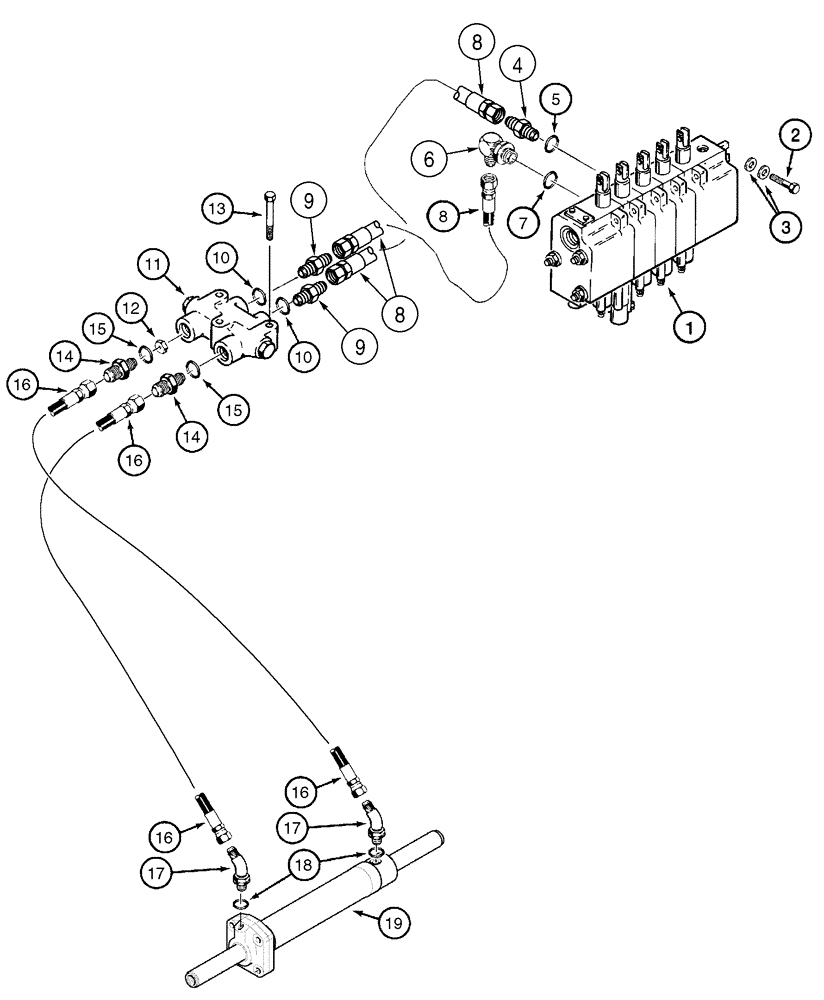

Запчасти Case 960 (05-06) - HYDRAULICS STEERING, REAR (05) - STEERING

1

H674793

VALVE

See Page(s) 8-31 - 8-45

1шт.

2

414-512

BOLT,Hex, 5/16" - 24 x 3/4", Gr 5

3шт.

3

895-11008

WASHER,9mm ID x 16mm OD x 1.6mm Thk

6шт.

4

218-5058

HYD CONNECTOR,9/16" - 18 Male JIC x 3/4" - 18 Male ORB

9/16 fl x 3/4 Or, Includes 5

1шт.

5

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1шт.

6

218-5128

ELBOW,90° Elbow, 9/16" - 18 Male JIC x 3/4" - 16 Male ORB

Incl. 7

1шт.

7

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1шт.

8

H169151

HYDRAULIC HOSE,6.35 mm ID x 609.60 mm, SAE 100R1

Lockout Valve

2шт.

9

218-5058

HYD CONNECTOR,9/16" - 18 Male JIC x 3/4" - 18 Male ORB

Includes 10

2шт.

10

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1шт.

11

H672547

VALVE

See Page(s) 5-31, Includes 12

1шт.

12

H270603

ORIFICE

1шт.

13

814-8050

BOLT,Hex, M8 x 1.25 x 50mm, Cl 8.8

2шт.

14

218-5058

HYD CONNECTOR,9/16" - 18 Male JIC x 3/4" - 18 Male ORB

Includes 15

2шт.

15

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1шт.

16

H171041

HOSE

SPARE PART , 1457 mm

2шт.

17

218-5148

ELBOW,45 Degree Elbow, 9/16" - 18 Male JIC x 3/4" - 16 Male ORB

Includes 18

2шт.

18

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1шт.

19

1957963C1

CYLINDER ASSY.

Steering, See Page(s) 6-53

1шт.
