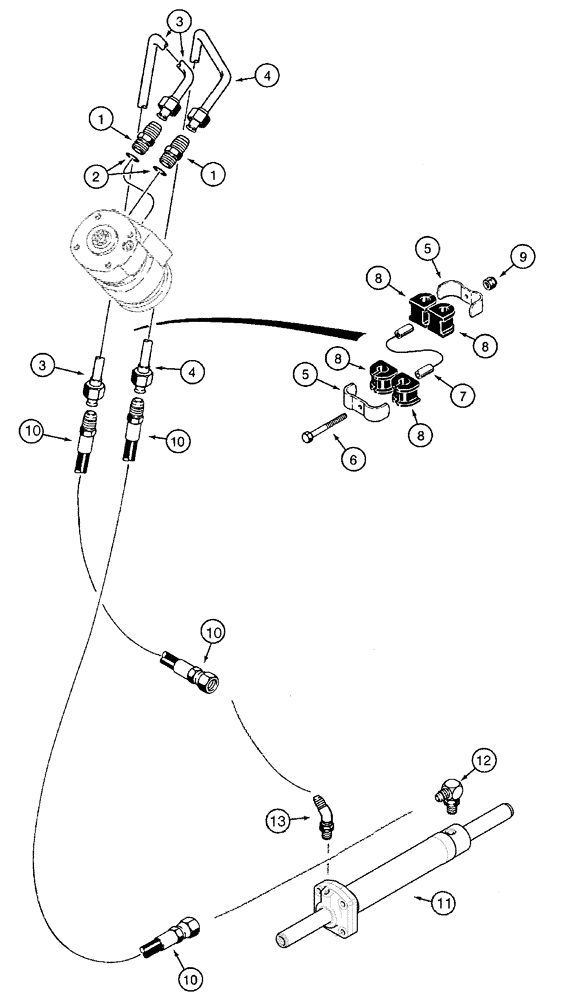

Запчасти Case 960 (05-05) - HYDRAULICS STEERING, FRONT (05) - STEERING

1

218-5059

HYD CONNECTOR,3/4"-16, 37 Degree x 3/4"-16, O-Ring

Incl. 2

2шт.

2

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1шт.

3

H672268

TUBE,12.7 mm OD

1шт.

4

H672271

TUBE,12.7 mm OD

1шт.

5

D68646

CLAMP

2шт.

6

413-640

BOLT,Hex, 3/8" - 16 x 2-1/2", Gr 5

1шт.

7

D76195

SPACER,10.31mm ID x 15.88mm OD x 17.78mm L

2шт.

8

D67296

GROMMET

4шт.

9

230-4216

LOCK NUT,3/8"-16, GA

1шт.

10

H433672

HYDRAULIC HOSE,9.52 mm ID x 1200.00 mm, SAE 100R1

2шт.

11

1957963C1

CYLINDER ASSY.

Steering, See Page(s) 6-53

1шт.

12

218-5128

ELBOW,90° Elbow, 9/16" - 18 Male JIC x 3/4" - 16 Male ORB

1шт.

13

218-5148

ELBOW,45 Degree Elbow, 9/16" - 18 Male JIC x 3/4" - 16 Male ORB

1шт.
