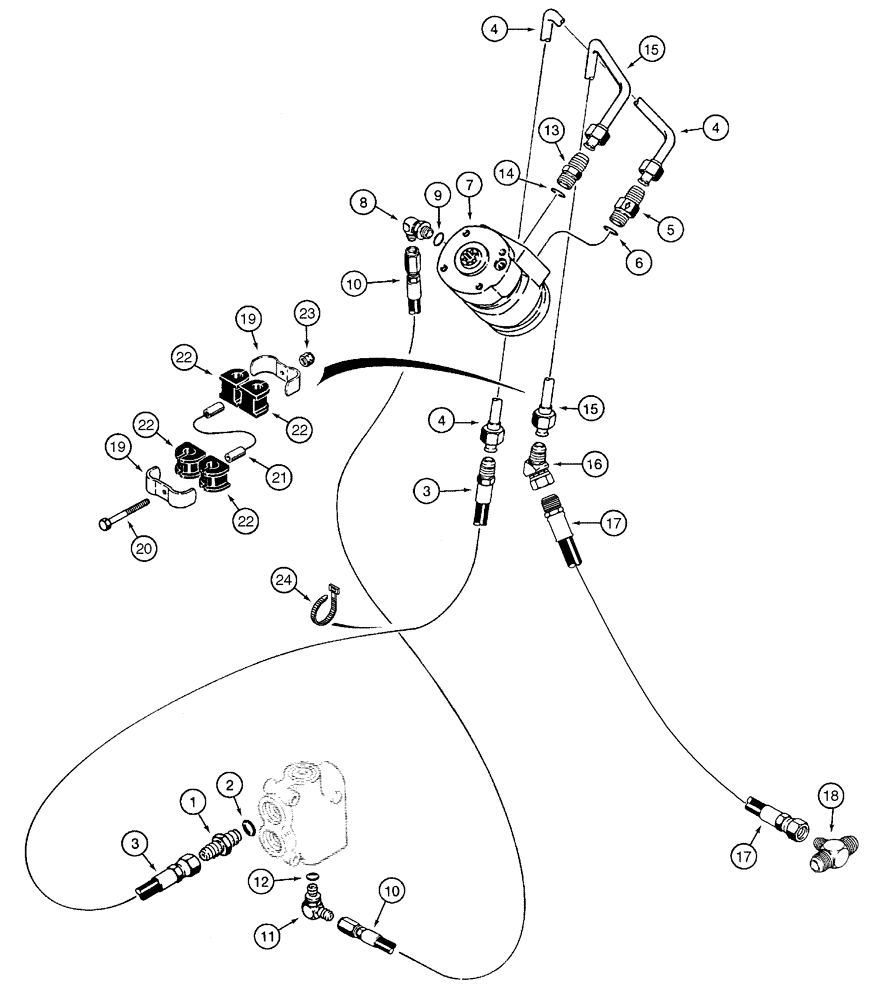

Запчасти Case 960 (05-04) - HYDRAULICS STEERING, FRONT (05) - STEERING

1

218-5059

HYD CONNECTOR,3/4"-16, 37 Degree x 3/4"-16, O-Ring

Incl. 2

1шт.

2

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1шт.

3

H433671

HOSE

1000 mm

1шт.

4

426968A1

TUBE

1шт.

5

L104449

LOCK VALVE

Steering, Includes 6

1шт.

6

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1шт.

7

141535A1

VALVE

Steering, See Page(s) 5-21

1шт.

8

218-5103

90 ELBOW,90 Degree Elbow, 7/16" - 20 Male JIC x 7/16" - 20 Male ORB

7/16 fl x adj Or, Includes 9

1шт.

9

237-6004

O-RING,0.072" Thk x 0.351" ID, -904, Cl 6, 90 Duro

1шт.

10

L52207

HYDRAULIC HOSE,0.25" ID x 63.00", SAE 100R1

Priority Valve

1шт.

11

218-5103

90 ELBOW,90 Degree Elbow, 7/16" - 20 Male JIC x 7/16" - 20 Male ORB

7/16 fl x adj Or, Includes 12

1шт.

12

237-6004

O-RING,0.072" Thk x 0.351" ID, -904, Cl 6, 90 Duro

1шт.

13

218-5059

HYD CONNECTOR,3/4"-16, 37 Degree x 3/4"-16, O-Ring

Incl. 14

1шт.

14

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1шт.

15

H674951

TUBE,12.7 mm OD

Valve to Return Hose

1шт.

16

218-5173

ELBOW,45 Degree Elbow, 3/4" - 16 Male JIC x 3/4" - 16 Female JIC

1шт.

17

H439123

HOSE

690 mm, Tube to Tee, See Page(s) 8-23

1шт.

18

218-1578

TEE,37 Degree, 1 1/16"-12 x 3/4"-16, Br

1шт.

19

D68646

CLAMP

2шт.

20

413-640

BOLT,Hex, 3/8" - 16 x 2-1/2", Gr 5

1шт.

21

D76195

SPACER,10.31mm ID x 15.88mm OD x 17.78mm L

Clamp

2шт.

22

D67296

GROMMET

4шт.

23

230-4216

LOCK NUT,3/8"-16, GA

1шт.

24

L18337

CABLE TIE,9.95"-12.1" lg

CABLE STRAP , 15 in

1шт.
