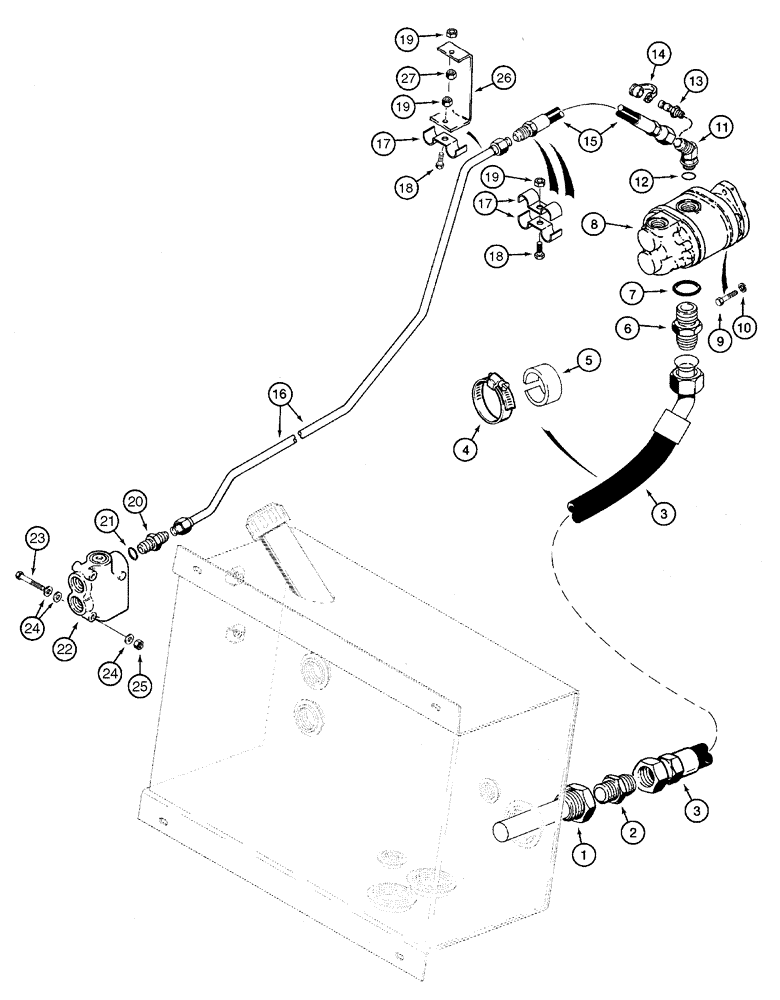

Запчасти Case 960 (05-03) - HYDRAULICS STEERING, FRONT (05) - STEERING

Reservoir To Pump

1шт.

1

H434204

BAFFLE

1шт.

2

218-449

HYD CONNECTOR,1-5/8" - 12 Male JIC x 1-1/4" - 11-1/2 Male NPTF

1-5/8 fl x 1-1/4 PT

1шт.

3

H433853

HOSE

1300 mm (51 in)

1шт.

4

214-1428

HOSE CLAMP,#28, 1.31" - 2.25", Type F Worm

1шт.

5

H201301

GUARD

1шт.

6

218-5072

HYD CONNECTOR,1-5/8" - 12 Male JIC x 1-5/8" - 12 Male ORB

1-5/8 fl x Or, Includes 7

1шт.

7

237-6020

O-RING,0.118" Thk x 1.475" ID, -920, Cl 6, 90 Duro

1шт.

8

371386A1

PUMP, HYDRAULIC

See Page(s) 5-27

1шт.

9

614-10030

BOLT,Hex, M10 x 1.5 x 30mm, Cl 8.8, Full Thd

2шт.

10

892-11010

LOCK WASHER,M10

2шт.

11

H434165

ELBOW

Includes 12

1шт.

12

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

1шт.

13

H434164

COUPLING

1шт.

14

H434163

DUST CAP

1шт.

15

H244913

HYDRAULIC HOSE,12.70 mm ID x 431.80 mm, SAE 100R2

Dual Pump

1шт.

Reservoir To Pump

1шт.

16

381676A2

TUBE

Valve Supply

1шт.

17

A12032

CLAMP

5шт.

18

413-524

BOLT,Hex, 5/16" - 18 x 1-1/2", Gr 5

3шт.

19

230-4215

NUT,5/16"-18, GA

4шт.

20

218-5062

HYD CONNECTOR,7/8"-14, 37 Degree x 7/8"-14, O-Ring

7/8 fl x Or, Includes 21

1шт.

21

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

1шт.

22

H672904

VALVE

Priority Flow Divider, See Page(s) 5-29

1шт.

23

814-8070

BOLT,Hex, M8 x 1.25 x 70mm, Cl 8.8

2шт.

24

895-11008

WASHER,9mm ID x 16mm OD x 1.6mm Thk

6шт.

25

832-41308

NUT,M8 x 1.25, Cl 10

2шт.

26

399339A1

BRACKET

1шт.

27

413-516

BOLT,Hex, 5/16" - 18 x 1", Gr 5

1шт.
