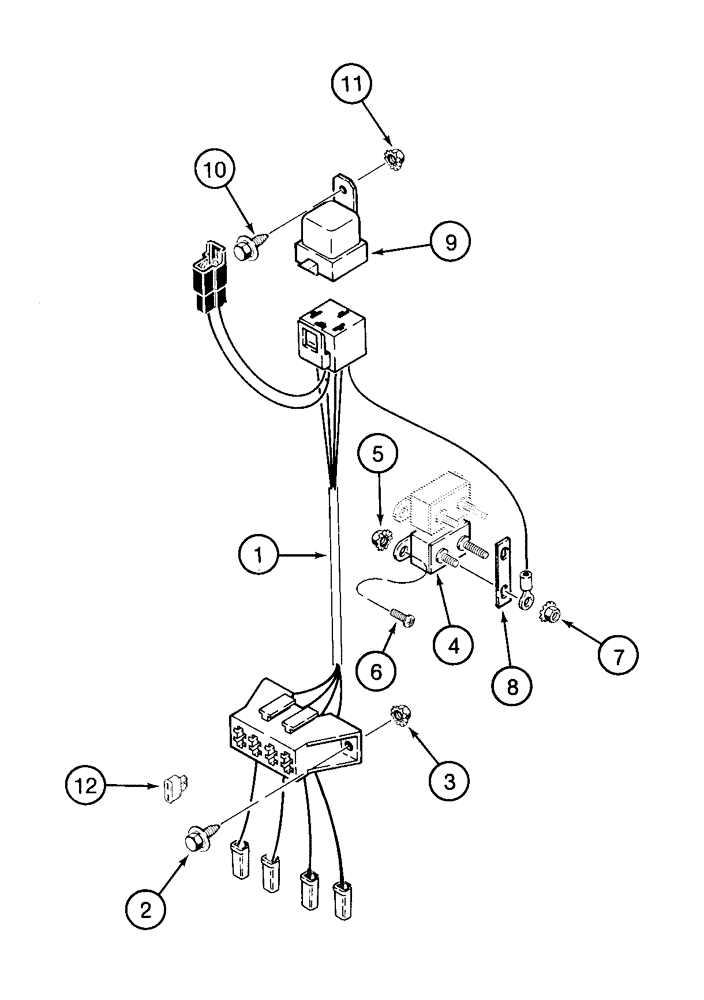

Запчасти Case 960 (04-12) - HARNESS, ACCESSORY POWER (04) - ELECTRICAL SYSTEMS

1

H674547

HARNESS

1шт.

2

363-31012

SCREW,Hex Wash Hd, #10-24 x 3/4"

No. 10 x 3/4 in

2шт.

3

193-1004

NUT,Keps, #10 - 24, w/ Ext Tooth LW

No. 10

2шт.

4

A22877

BREAKER,40A

40 amp

1шт.

5

193-1000

NUT,Keps, w/LW,#10-32

No. 10 NF

2шт.

6

440-1088

SCREW,Cross Pan Hd, #8-32 x 1/2"

2шт.

7

193-1002

NUT,Keps, #8 - 32, w/ Ext Tooth LW

2шт.

8

245860C1

BAR

1шт.

9

1983394C1

RELAY

1шт.

10

363-31012

SCREW,Hex Wash Hd, #10-24 x 3/4"

No. 10 x 3/4 in

1шт.

11

193-1004

NUT,Keps, #10 - 24, w/ Ext Tooth LW

No. 10

1шт.

12

A149801

FUSE,Lt Blue, 15 Amp

15 amp, Light Blue

2шт.
