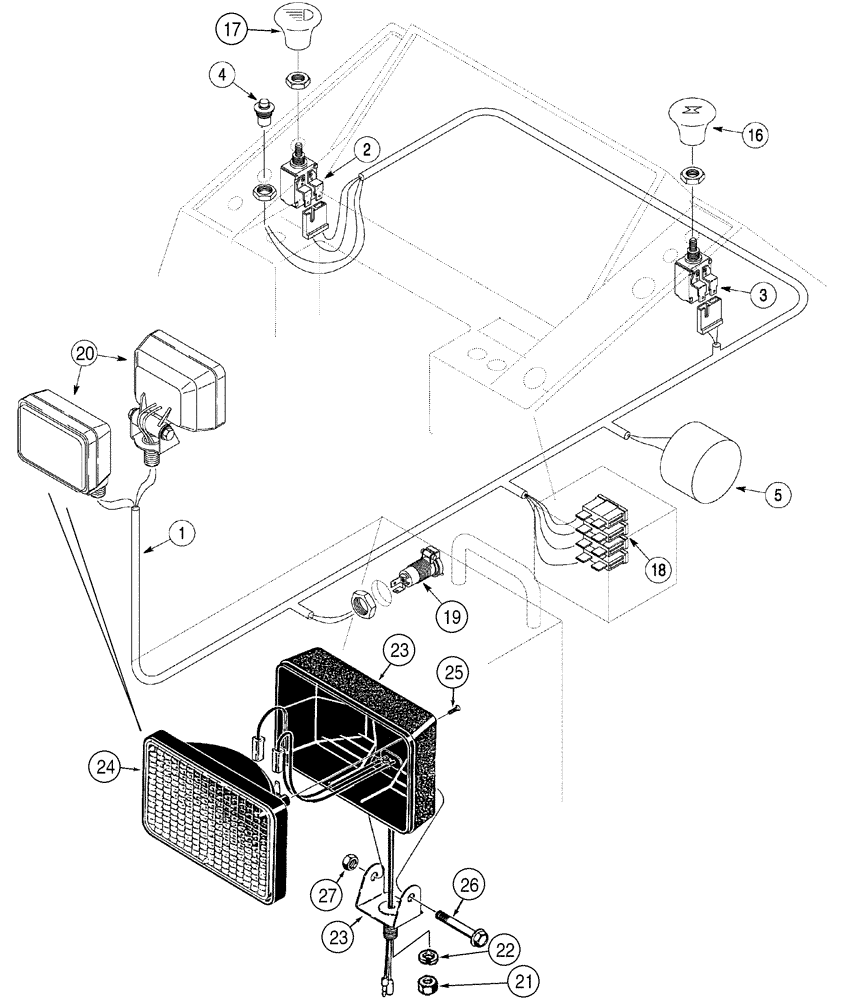

Запчасти Case 960 (04-11) - HARNESS, SPECIAL WIRING (04) - ELECTRICAL SYSTEMS

European Models

1шт.

1

223534A1

HARNESS

Special Wiring

1шт.

2

D74330

SWITCH

Electrical

1шт.

3

D74330

SWITCH

Electrical PTO

1шт.

4

D141486

SWITCH

Horn

1шт.

5

D123205

HORN

12V

1шт.

6

864-5012

HEX SOC SCREW,M5 x 12mm, Cl 8.8

1шт.

7

824-1405

NUT,M5, Cl 5

1шт.

8

D122734

SUPPORT

1шт.

9

L30866

LOCK NUT

7/8

1шт.

10

95-81207

WASHER,0.53" ID x 0.81" OD x 0.07" Thk

17/32 x 13/16 x 1/16

1шт.

11

413-520

BOLT,Hex, 5/16" - 18 x 1-1/4", Gr 5

5/16 x 1-1/4

1шт.

12

425-105

NUT,5/16"-18, G5

2шт.

13

495-11034

WASHER,5/16", SAE

(11/32 x 11/16 x 1/16")

2шт.

14

492-11031

LOCK WASHER,5/16"

2шт.

16

178112A1

BUTTON

Electrical Accessory

1шт.

17

108314A1

BUTTON

Working Light Symbol

1шт.

18

A149800

FUSE,10 Amp

10 amp

4шт.

19

E47038

CONNECTION

Electrical

1шт.

European Models

1шт.

20

D126237

HEADLIGHT

12V, Work Lamp, Includes 21 - 27

2шт.

21

425-108

NUT,1/2" - 13, Gr 5

1шт.

22

80679

LOCK WASHER,1/20.507 CST ZND

1шт.

23

NSS

NOT SOLD SEPARAT

Body

1шт.

24

N13125

LAMP

Sealed Beam

1шт.

25

273-5048

SELF-TAP SCREW,Slotted Flat Hd, #8 x 1/2"

2шт.

26

121-232

SERRATED BOLT,Hex, 5/16" - 18 x 2", Gr 5

1шт.

27

231-1445

NUT,5/16"-18, GB

1шт.
