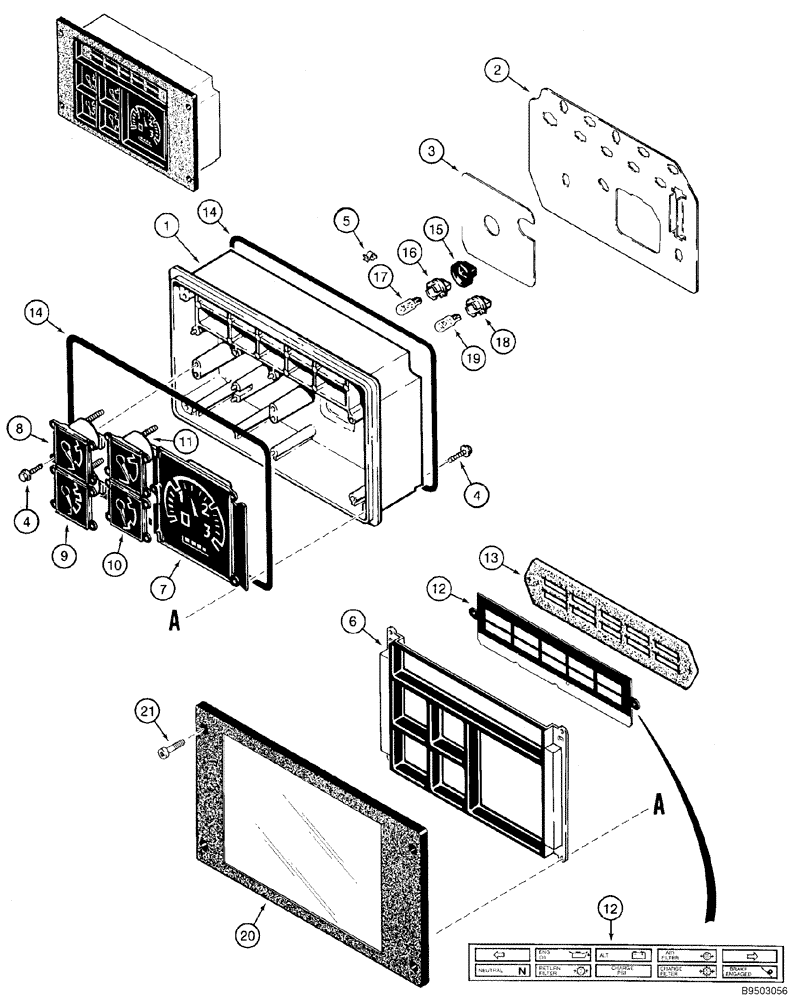

Запчасти Case 960 (04-08) - INSTRUMENT CLUSTER (04) - ELECTRICAL SYSTEMS

141759A1

CLUSTER

Includes 1 - 20

1шт.

A191114

HOUSING

Includes 1 - 5

1шт.

1

NSS

NOT SOLD SEPARAT

Housing

1шт.

2

NSS

NOT SOLD SEPARAT

Circuit, Electrical, Printed

1шт.

3

NSS

NOT SOLD SEPARAT

Gasket, Housing

1шт.

4

NSS

NOT SOLD SEPARAT

Screw, Special

12шт.

5

NSS

NOT SOLD SEPARAT

Clip, Gauges

12шт.

6

A45007

LENS

1шт.

7

N13543

TACHOMETER

Tachometer, Includes Hourmeter

1шт.

8

N13542

GAUGE

Water Temperature

1шт.

9

A47688

ELECTRICAL GAUGE

Fuel Level

1шт.

10

N6807

ELECTRICAL GAUGE

Voltmeter

1шт.

11

A187987

GAUGE

Temperature

1шт.

12

141760A1

LENS

Identification, Warning Lamps

1шт.

13

D71342

GASKET,3.05mm Thk

Lens

1шт.

14

D71343

GASKET,4.45mm Thk x 249.68mm ID

2шт.

15

D71344

COVER

Lamp Socket

3шт.

16

A47125

PEDESTAL

Green

3шт.

17

W10478

LAMP

No. 194

3шт.

18

A47123

SOCKET/RECEPTACLE

9шт.

19

D71346

TAIL LAMP,12V

No. 168

9шт.

20

N14225

SHIELD

1шт.

21

440-1108

SCREW,Cross Pan Hd, #10-24 x 1/2"

4шт.
