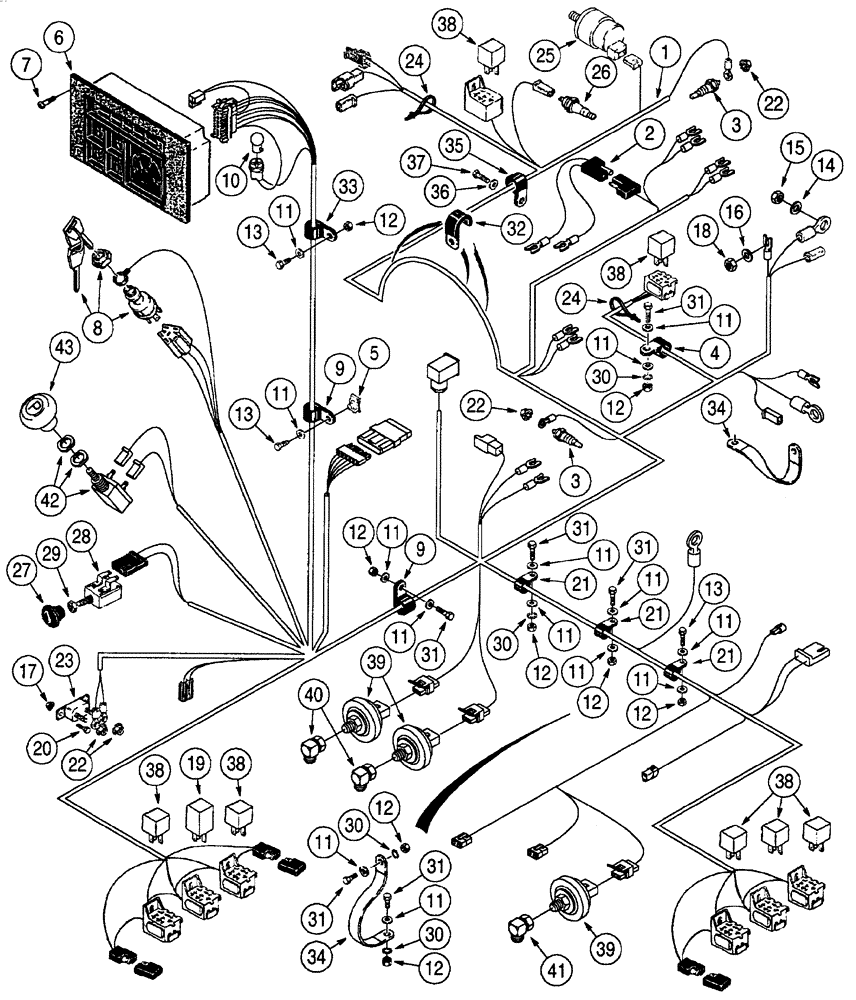

Запчасти Case 960 (04-07) - HARNESS, ENGINE MOUNTING AND CONNECTIONS (04) - ELECTRICAL SYSTEMS

1

377065A3

HARNESS

Engine

1шт.

2

H436183

CONNECTOR, ELEC

CONNECTOR

1шт.

3

A166057

TEMPERATURE SENDER,1/2" - 14 NPTF

Temperature

1шт.

4

515-23159

CLAMP,5/8", Insul, 3/8" Bolt

1шт.

5

H436650

1шт.

6

141759A1

CLUSTER

See Page(s) 4-27

1шт.

7

440-1108

SCREW,Cross Pan Hd, #10-24 x 1/2"

4шт.

8

282775A1

IGNITION SWITCH

Includes Padded Keys 1964831C2

1шт.

9

D88052

CLAMP,25.4mm ID, 10.31mm Bolt Hole, P Type

2шт.

10

D71346

TAIL LAMP,12V

No. 168

1шт.

11

495-11034

WASHER,5/16", SAE

(11/32 x 11/16 x 1/16")

14шт.

12

232-4115

LOCK NUT,5/16"-18, GC

8шт.

13

413-520

BOLT,Hex, 5/16" - 18 x 1-1/4", Gr 5

5/16 x 1-1/4

3шт.

14

493-41033

LOCK WASHER,0.33" ID x 0.61" OD x 0.03" Thk

1шт.

15

825-1408

NUT,M8, Cl 8

1шт.

16

493-41020

LOCK WASHER,Ext Tooth, #10

1шт.

17

193-1002

NUT,Keps, #8 - 32, w/ Ext Tooth LW

6шт.

18

825-1405

NUT,M5, Cl 8

1шт.

19

224787A1

RELAY

Time Delay

1шт.

20

440-1088

SCREW,Cross Pan Hd, #8-32 x 1/2"

6шт.

21

515-22190

CLAMP,3/4", Insul, 5/16" Bolt

3шт.

22

193-1000

NUT,Keps, w/LW,#10-32

No. 10 NF

4шт.

23

303884A1

BREAKER

15 amp

1шт.

24

L18337

CABLE TIE,9.95"-12.1" lg

CABLE STRAP , 15 in

2шт.

25

293797A1

RESTRICTION SWITCH

1шт.

26

277016A1

PRESSURE SWITCH

Engine Oil, M10, Includes 637-62081

1шт.

637-62081

O-RING,1.6mm Thk x 8.1mm ID, Cl 6, 90 Duro

1шт.

27

D88134

KNOB

1шт.

D74330

SWITCH

Shut-off, Includes 28, 29

1шт.

28

NSS

NOT SOLD SEPARAT

Switch

1шт.

29

N7557

NUT

3/8 NF

1шт.

30

493-41039

LOCK WASHER,Ext Tooth, 3/8"

4шт.

31

413-524

BOLT,Hex, 5/16" - 18 x 1-1/2", Gr 5

6шт.

32

A37179

CLIP

6шт.

33

515-23302

CLAMP,1 3/16", Insul, 3/8" Bolt

1шт.

34

D73383

STRAP

2шт.

35

515-25127

CLAMP,1/2", Insul, 1/2" Bolt

1шт.

36

495-11047

WASHER,7/16", SAE

(15/32 x 59/64 x 1/16")

1шт.

37

814-12016

BOLT,Hex, M12 x 1.75 x 16mm, Cl 8.8, Full Thd

1шт.

38

314451A1

RELAY

40 amp, 12V, Sealed, Heavy Duty

7шт.

39

251905A2

SWITCH

Charge Pump

3шт.

40

218-5283

ELBOW,90 Degree, 7/16"-20, 37 Degree x 9/16"-18, O-Ring

7/16 fl x 9/16 Or, Includes 237-6006

2шт.

41

218-5103

90 ELBOW,90 Degree Elbow, 7/16" - 20 Male JIC x 7/16" - 20 Male ORB

7/16 fl x adj Or, Includes 237-6004

1шт.

42

141100A1

IGNITION SWITCH

Switch, SPDT Push-Pull

1шт.

43

141063A1

BUTTON

Knob, Parking Brake

1шт.
