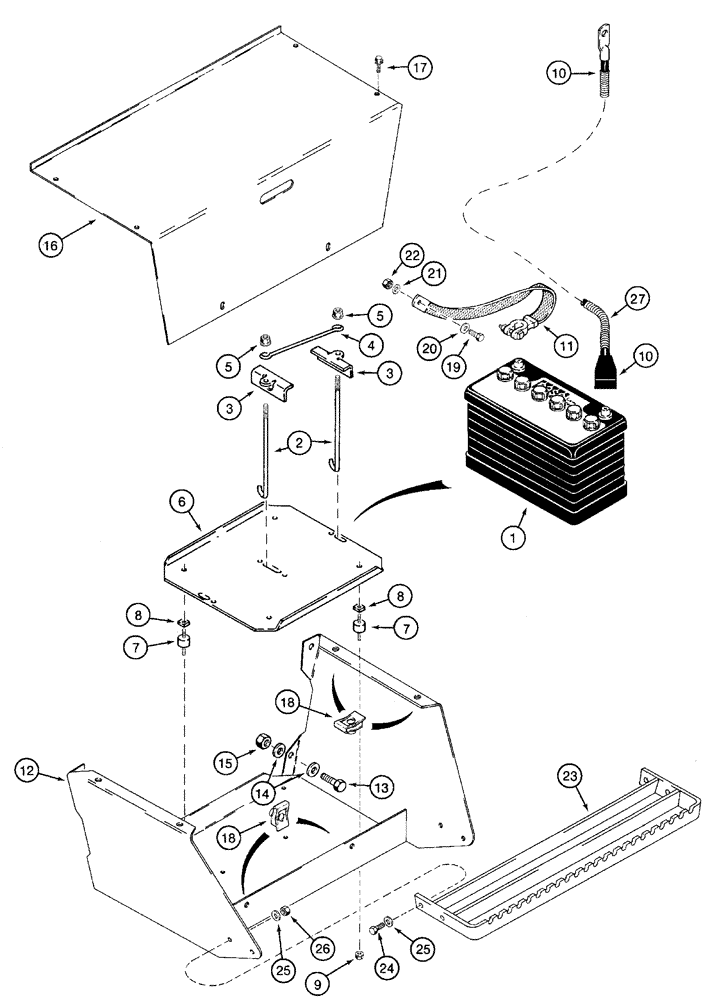

Запчасти Case 960 (04-04) - BATTERY CABLES (04) - ELECTRICAL SYSTEMS

1

A187928

WET BATTERY

BATTERY WET , 12 V, Service Replacement

1шт.

2

H436311

BOLT

J-Type

2шт.

3

D125079

BRACKET

2шт.

4

D135073

BRACKET

1шт.

5

231-5146

FLANGE NUT,3/8"-16

2шт.

6

H673486

LARGE PLATE

PLATE, LARGE , Battery

1шт.

7

H359216

MOUNTING PARTS

4шт.

8

224-2245

SQUARE NUT,Sq, 5/16"-18, G2

4шт.

9

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

4шт.

10

H433291

CABLE

1755 mm (69-3/32 in), Positive, Conduit

1шт.

11

D83485

CABLE,300mm L

Negative Ground

1шт.

12

H674882

BRACKET

Battery Mounting

1шт.

13

413-824

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5

4шт.

14

496-21053

WASHER,17/32" x 1 1/16" x .134"

Hardened

8шт.

15

232-4118

NUT,1/2"-13, GC

4шт.

16

H438914

COVER

1шт.

17

121-107

SERRATED BOLT,Hex, 5/16" - 18 x 1", Gr 5

6шт.

18

H346650

NUT

6шт.

19

413-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

1шт.

20

496-21041

WASHER,13/32" x 13/16" x .089", HDN

1шт.

21

493-41039

LOCK WASHER,Ext Tooth, 3/8"

1шт.

22

232-4116

NUT,3/8"-16, GC

1шт.

23

H672373

STEP

1шт.

24

413-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

4шт.

25

495-11041

WASHER,0.406" ID x 0.812" OD x 0.065" W

(13/32 x 13/16 x 1/16")

8шт.

26

232-4116

NUT,3/8"-16, GC

Battery

4шт.

27

H434808

LOOM

1шт.
