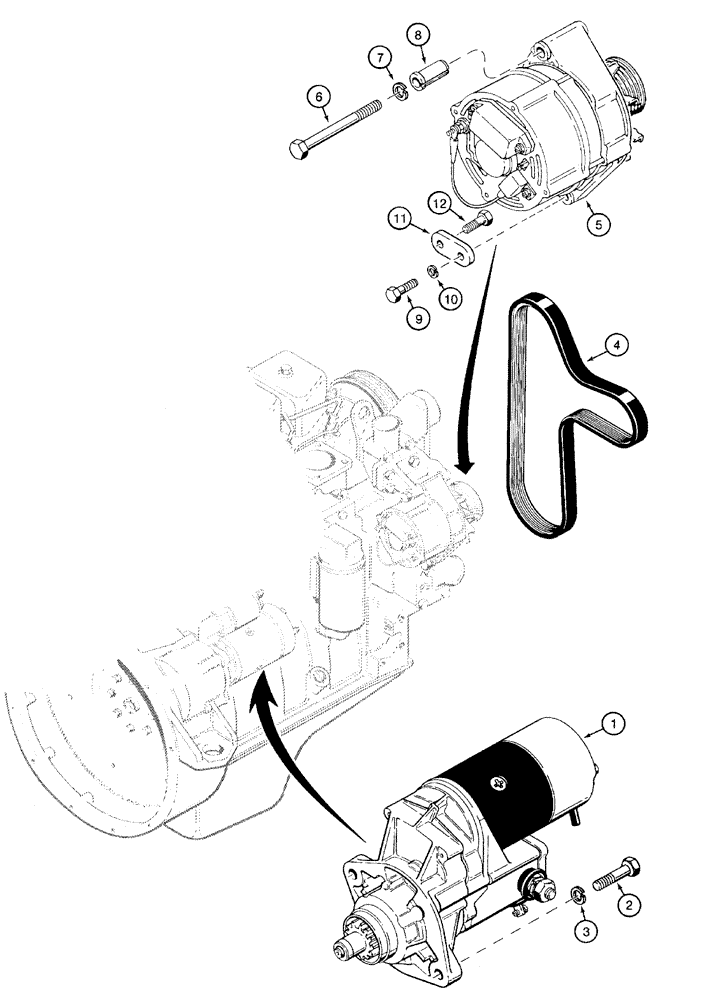

Запчасти Case 960 (04-03) - STARTER MOUNTING ALTERNATOR MOUNTING (04) - ELECTRICAL SYSTEMS

1

1987559C1

STARTING MOTOR

Engine, See Page(s) 4-3

1шт.

1

86982709R

REMAN-STARTER,12V, 2.5kW

Remanufactured, Starter, 12 volt, 2.5KW

1шт.

1

86982709C

CORE-STARTER,12V, 2.5kW

Return Part Number

1шт.

1

104452A2R

REMAN-STARTER

Remanufactured Starter 12 volt, 2.5KW

1шт.

1

104452A1C

CORE-STARTER

Return Part Number, Starter 12 volt, 2.5KW

1шт.

2

814-10040

BOLT,Hex, M10 x 1.5 x 40mm, Cl 8.8

2шт.

3

892-11010

LOCK WASHER,M10

2шт.

4

J911557

V-BELT,27.92mm W x 1422.4mm L, 8 Ribs

Fan and Alternator

1шт.

5

A187873

ALTERNATOR,12V, 65A

12V, 65 amp, See Page(s) 4-9

1шт.

5

AR187873

REMAN-ALTERNATOR

65A 12V

1шт.

5

AC187873

CORE-ALTERNATOR

Return Part Number

1шт.

5

A187873GV

ALTERNATOR

Value, 12V, 65A

1шт.

6

814-10110

BOLT,Hex, M10 x 1.5 x 110mm, Cl 8.8

1шт.

7

892-11010

LOCK WASHER,M10

1шт.

8

J902469

SPACER

Alternator Mounting

1шт.

9

614-8035

BOLT,Hex, M8 x 1.25 x 35mm, Cl 8.8, Full Thd

Full Threads

1шт.

10

896-15008

WASHER,9mm ID x 21mm OD x 2.5mm Thk

9 x 21 x 2,5 mm

1шт.

11

J903089

SUPPORT

Alternator Mounting

1шт.

12

614-8020

BOLT,Hex, M8 x 1.25 x 20mm

1шт.
