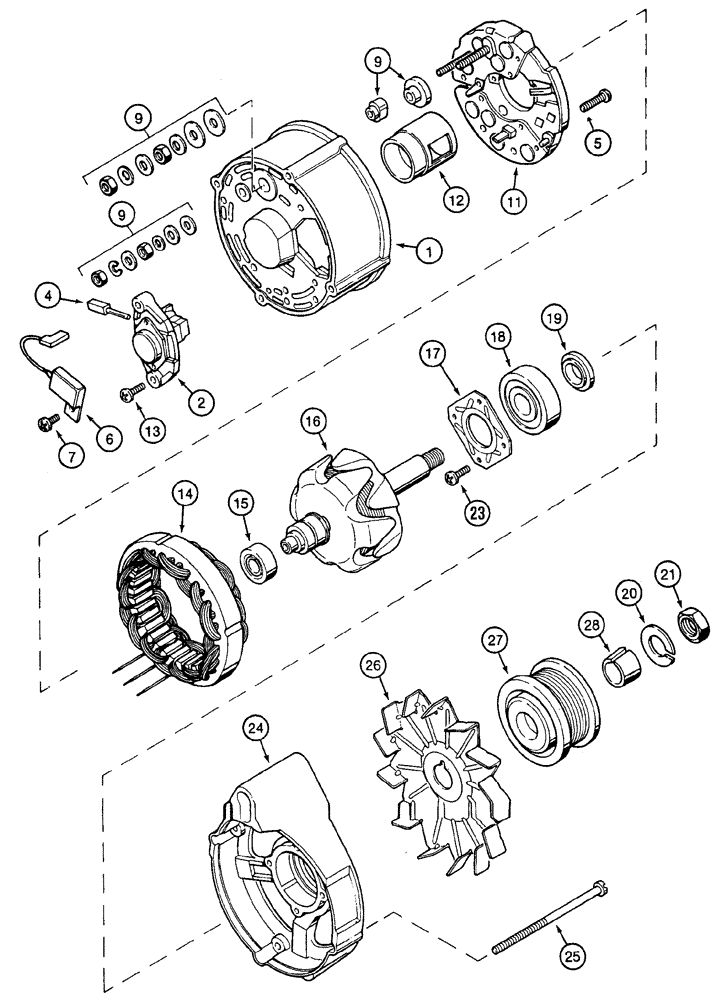

Запчасти Case 960 (04-02) - ALTERNATOR (04) - ELECTRICAL SYSTEMS

A187873

ALTERNATOR,12V, 65A

12V, 65 amp, Consists Of 1 - 25

1шт.

AR187873

REMAN-ALTERNATOR

65A 12V

1шт.

AC187873

CORE-ALTERNATOR

Return number

1шт.

A187873GV

ALTERNATOR

Value, 12V, 65A

1шт.

1

A187903

COVER

Collector Ring End

1шт.

2

A187906

VOLTAGE REGULATOR

1шт.

4

1964968C1

COMMUTATOR BRUSH

Set Of Two

1шт.

5

1530431C1

BOLT,Hex, 1 1/4" - 7 x 7", Gr 8, W/ Wshr

With Washer

1шт.

6

3079134R1

CAPACITOR

1шт.

7

840-1510

SCREW,Pan, M5 x 10mm, Cl 4.8

1шт.

9

A187904

MULTIPOLE CONNECTOR

Hardware

1шт.

11

360330A1

RECTIFIER

1шт.

12

A187899

INNER SHIELD

1шт.

13

A187504

SCREW

2шт.

14

1964964C1

ROTOR

1шт.

15

A186186

BALL BEARING,12mm ID x 32mm OD x 10mm W

1шт.

16

1964964C1

ROTOR

1шт.

17

A187901

FIXING PLATE

1шт.

18

A186183

BALL BEARING,17 mm ID x 47 mm OD x 14 mm

1шт.

3078897R1

SET OF PARTS

Includes 19 - 23

1шт.

19

NSS

NOT SOLD SEPARAT

Ring

1шт.

20

NSS

NOT SOLD SEPARAT

Washer

1шт.

21

NSS

NOT SOLD SEPARAT

Nut

1шт.

22

NSS

NOT SOLD SEPARAT

Key, Not Used In This Application

1шт.

23

NSS

NOT SOLD SEPARAT

Screw

4шт.

A187873

ALTERNATOR,12V, 65A

12V, 65 amp, Consists Of 1 - 25

1шт.

24

A186192

STATOR

Drive End

1шт.

25

A186193

BOLT,Pan, Cross Recess Phillips, M5 x 110mm

1шт.

26

221425R1

FAN

Not Included In Assembly, Purchase Separately

1шт.

27

J908560

PULLEY

Not Included In Assembly, Purchase Separately

1шт.

28

J908563

RETAINER

Not Included In Assembly, Purchase Separately

1шт.
