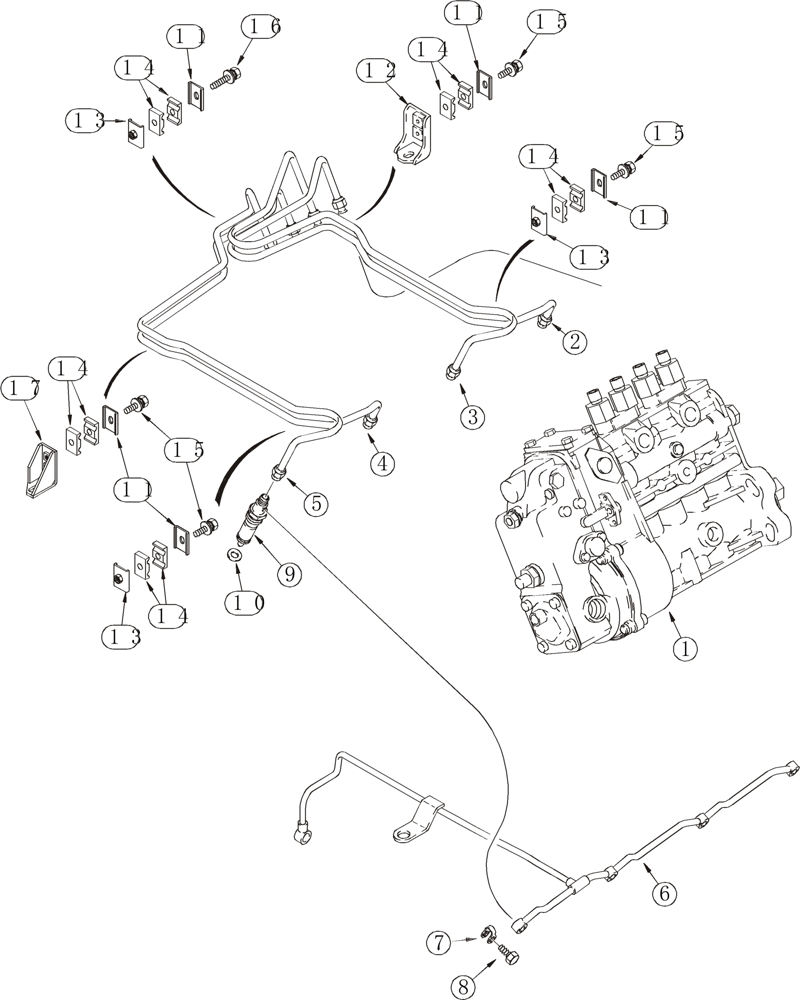

Запчасти Case 960 (03-04) - FUEL INJECTION SYSTEM (03) - FUEL SYSTEM

1

J933290

PUMP, FUEL INJECTION

PUMP, INJECTION , See Page(s) 3-19

1шт.

2

J932157

FUEL TUBE,1.8 mm ID x 6.35 mm OD x 750 mm L

No. 1

1шт.

3

J932158

FUEL TUBE,1.8 mm ID x 6.35 mm OD x 750 mm L

No. 2

1шт.

4

J932159

FUEL TUBE,1.8 mm ID x 6.35 mm OD x 750 mm L

No. 3

1шт.

5

J932160

FUEL TUBE,750 mm L

No. 4

1шт.

6

J927633

TUBE

Manifold Fuel

1шт.

7

J903380

SEAL

Connector

4шт.

8

J905307

BANJO BOLT,M6 x 1 x 14.30mm

Drain

4шт.

9

J929490

NOZZLE INJECTION

Fuel Injection, See Page(s) 3-23

4шт.

9

JR929490

REMAN-FUEL INJECTOR

Remanufactured INJECTION NOZZLE

4шт.

9

JC929490

CORE-FUEL INJECTOR

Return Number, INJECTION NOZZLE

4шт.

10

J906659

SEAL

7 mm, Injector Nozzle, Injector Tip

4шт.

11

CURJ904711

CLAMP

5шт.

12

J282942

BRACKET

1шт.

13

J917717

BRACE

3шт.

14

J917746

CLAMP

12шт.

15

J920854

CAPTIVE WASHER SCREW,HWH, M5 x 0.8 x 24.5mm, Cl 8.8

4шт.

16

J920855

CAPTIVE WASHER SCREW

M5 x 35

1шт.

17

J919086

BRACKET

1шт.
