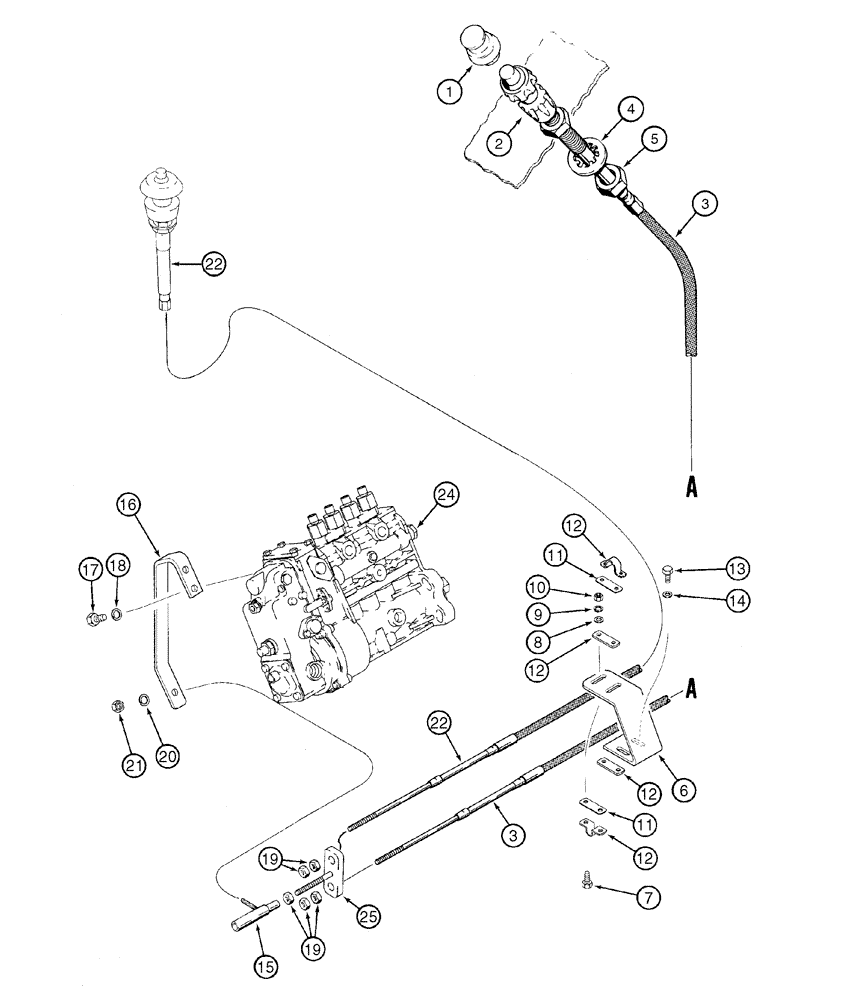

Запчасти Case 960 (03-03) - CONTROLS THROTTLE (03) - FUEL SYSTEM

Models With Backhoe

1шт.

H433128

CABLE

Throttle, Includes 1 - 5

1шт.

1

H358994

COVER

1шт.

2

NSS

NOT SOLD SEPARAT

Lock

1шт.

3

NSS

NOT SOLD SEPARAT

Cable

1шт.

4

493-21078

LOCK WASHER,Int Tooth, 3/4"

3/4

1шт.

5

425-1512

JAM NUT,Jam, 3/4"-10, G5

3/4 NF

1шт.

6

291361A1

SUPPORT

1шт.

7

363-11020

SCREW,Hex Hd, #10-24 x 1 1/4"

No. 10 x 1-1/4

2шт.

8

495-31020

WASHER,#10

(13/64" x 15/32" x 3/64")

2шт.

9

492-11010

LOCK WASHER,#10

2шт.

10

225-14110

NUT,#10-24

2шт.

11

257267A1

PLATE

1шт.

12

L12441

CLAMP

2шт.

13

413-416

BOLT,Hex, 1/4" - 20 x 1", Gr 5

2шт.

14

495-11028

WASHER,1/4", SAE

(9/32 x 5/8 x 1/16")

2шт.

15

278183A1

BALL JOINT

1шт.

16

292000A1

LEVER

1шт.

17

614-6016

BOLT,Hex, M6 x 1 x 16mm, Cl 8.8, Full Thd

2шт.

18

892-11006

LOCK WASHER,M6

2шт.

19

225-14210

NUT,#10-32

5шт.

20

492-11025

LOCK WASHER,1/4"

1шт.

21

425-114

NUT,1/4"-28, G5

1шт.

22

282115A1

CABLE

1шт.

23

321-5288

DECAL

Throttle, See Page(s) 9-193

1шт.

24

J933290

PUMP, FUEL INJECTION

PUMP, INJECTION , See Page(s) 3-19

1шт.

25

257177A1

STEM

1шт.
