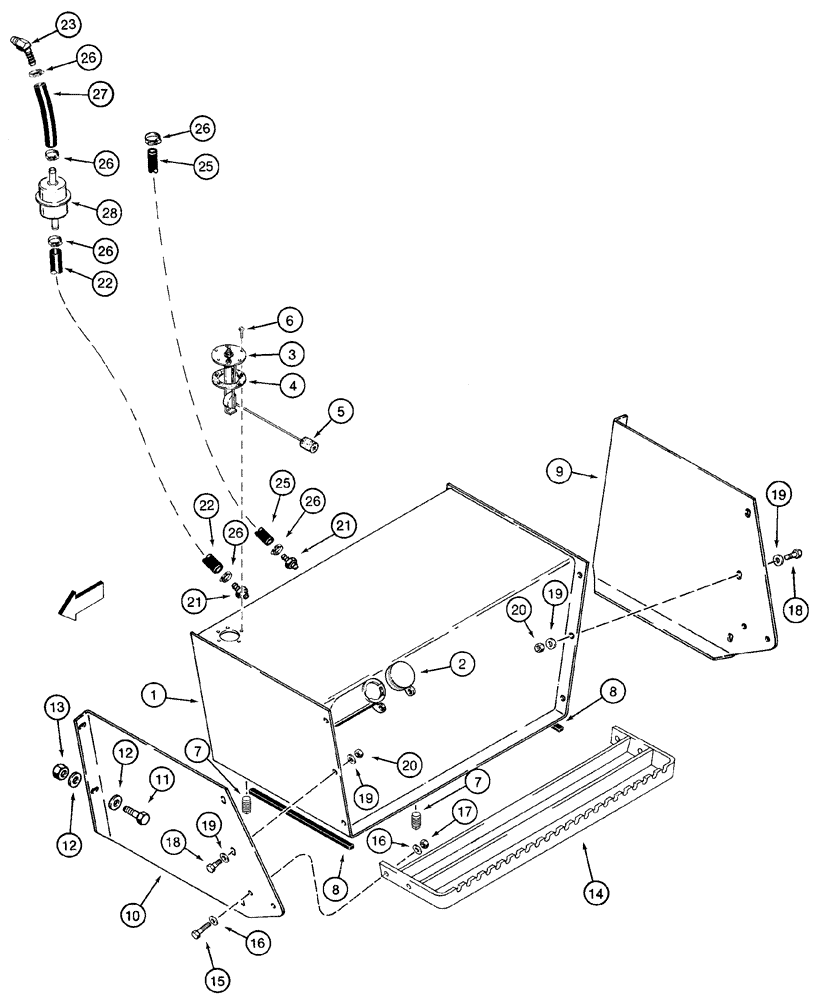

Запчасти Case 960 (03-01) - FUEL LINES TANK (03) - FUEL SYSTEM

H673060

FUEL TANK

Includes 1 - 6

1шт.

1

NSS

NOT SOLD SEPARAT

Tank

1шт.

2

H433699

PLUG

Fuel Tank Filler Neck

1шт.

N13520

SENDER UNIT

Fuel Level Gauge, Includes 3 - 6

1шт.

3

NSS

NOT SOLD SEPARAT

Sender, Fuel Level Gauge

1шт.

4

NSS

NOT SOLD SEPARAT

Gasket, Mounting, Fuel Sender

1шт.

5

NSS

NOT SOLD SEPARAT

Float, Cork, Fuel Sender

1шт.

6

NSS

NOT SOLD SEPARAT

No. 10 x 1/2, Screw, Pan Head Slotted

5шт.

7

217-433

PLUG,Hex Soc, 1/4" - 18 NPTF

2шт.

8

H433912

RUBBER STRIP

12 x 3 x 300 mm

2шт.

9

H436266

BRACKET

Rear

1шт.

10

H436267

BRACKET

Front

1шт.

11

413-828

BOLT,Hex, 1/2" - 13 x 1-3/4", Gr 5

4шт.

12

496-21053

WASHER,17/32" x 1 1/16" x .134"

Hardened

8шт.

13

232-4118

NUT,1/2"-13, GC

4шт.

14

H672373

STEP

Includes 14, 15

1шт.

15

413-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

4шт.

16

496-21041

WASHER,13/32" x 13/16" x .089", HDN

8шт.

17

232-4116

NUT,3/8"-16, GC

4шт.

18

413-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

6шт.

19

496-11034

WASHER,11/32" x 11/16" x 1/16", HDN

12шт.

20

232-4115

LOCK NUT,5/16"-18, GC

6шт.

21

217-125

FITTING,3/8" Hose Barb x 1/4" Male NPTF

3/8 barb x 1/4 PT

2шт.

22

292021A1

FUEL HOSE,9.65 mm ID x 1170.00 mm, SAE 30R7

Suction

1шт.

23

217-293

FITTING,90 Degree Elbow, 3/8" Hose Barb x 1/4" Male NPTF

3/8 barb x 1/4 PT

1шт.

25

292022A1

FUEL HOSE,9.65 mm ID x 1725.00 mm, SAE 30R7

1шт.

26

214-1706

HOSE CLAMP,#06, 0.44" - 0.78", Type M Worm

Fuel Hoses

6шт.

27

292020A1

FUEL HOSE,9.53 mm ID x 290.00 mm, SAE 30R7

Pump

1шт.

28

D139225

FILTER, FUEL

In-Line

1шт.
