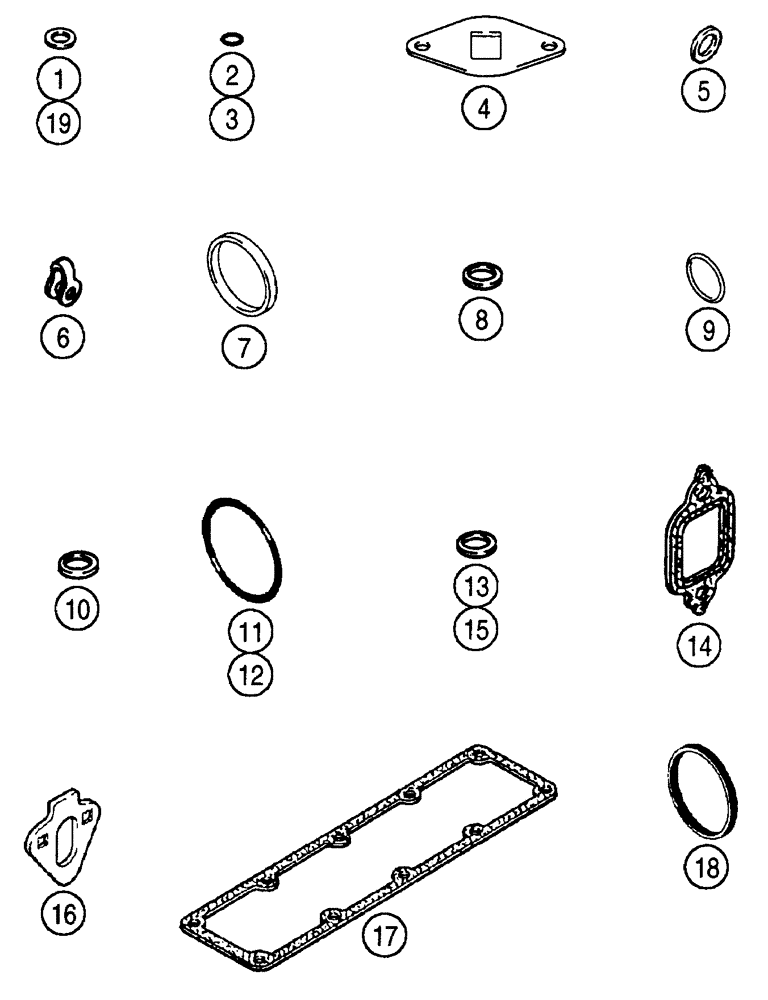

Запчасти Case 960 (02-24) - GASKET KIT (02) - ENGINE

Basic Service Engine

1шт.

A77994

GASKET KIT

Consists Of 1 - 19

1шт.

1

222-993

GASKET,3/8 Tube, Fl, Copper

See Page (s) 2-27, Ref. 22

2шт.

2

238-5013

O-RING,0.07" Thk x 0.426" ID, -13, Cl 5, 75 Duro

Not Used In This Application

2шт.

3

637-62081

O-RING,1.6mm Thk x 8.1mm ID, Cl 6, 90 Duro

See Page(s) 3-21, Ref 27A

1шт.

4

J937706

GASKET,0.79mm Thk

See Page(s) 2-27, REF 11

2шт.

5

J902425

SEALING WASHER,22.2mm ID x 26.9mm OD x 1.75mm Thk

See Page(s) 2-37, REF 12

1шт.

6

J903380

SEAL

See Page(s) 3-11, REF 7

4шт.

7

J903475

SEALING RING,72.39mm ID x 90.39mm OD x 9mm Thk

See Page(s) 2-21, REF 19

1шт.

8

J906659

SEAL

7 mm, See Page(s) 3-11, REF 10; 3-23, REF 3

4шт.

9

J906697

SEAL,Square, 5.16mm Thk x 50.17mm ID

50 mm ID, See Page(s) 2-55, REF 27

1шт.

10

J909356

SEAL,Square, 1.68mm Thk x 15.6mm ID, -16

See Page(s) 3-23, REF 2

4шт.

11

J910517

O-RING

See Page(s) 2-55, REF 34

1шт.

12

J912473

SEAL,157mm ID x 163.18mm OD x 7.03mm Thk

SEALRING , See Page(s) 2-63, REF 2

1шт.

13

J923261

WASHER,7.2mm ID x 15mm OD x 2.5mm Thk

2,5 mm, Not Used In This Application

4шт.

14

J927154

GASKET,0.38mm Thk

See Page(s) 2-25, REF 1

4шт.

15

J930324

SEAL

0,5 mm, Not Used In This Application

4шт.

16

J931059

GASKET

See Page(s) 3-13, REF 4

2шт.

17

J938153

MANIFOLD GASKET,0.8mm Thk

See Page(s) 2-25, REF 4

1шт.

18

J935032

SEAL

See Page(s) 3-21, REF 37

1шт.

19

J935171

SEALING WASHER

12 x 19 x 1,5 mm, See Page(s) 3-13, REF 8

4шт.
