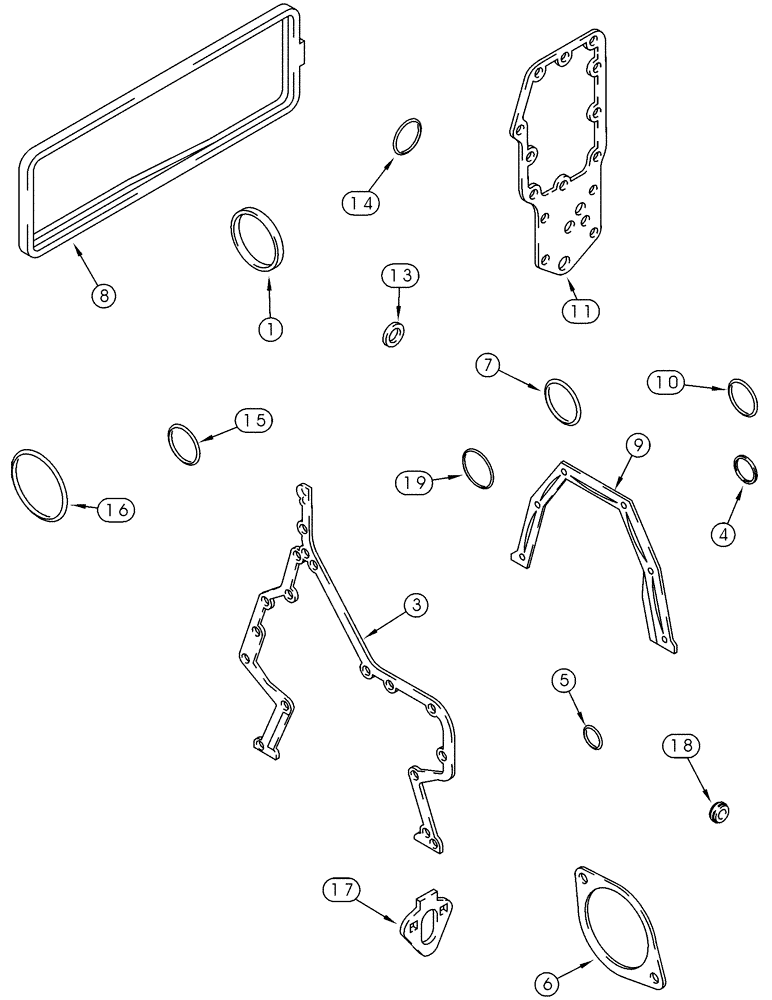

Запчасти Case 960 (02-23) - GASKET KIT (02) - ENGINE

Cylinder Block

1шт.

A77965

SEAL PACKAGE

Consists Of 1 - 18

1шт.

1

J903475

SEALING RING,72.39mm ID x 90.39mm OD x 9mm Thk

See Page(s) 2-21 REF 19

1шт.

3

J938156

GASKET,0.79mm Thk

See Page(s) 2-21 REF 4

1шт.

4

J915772

SEAL,Square, 1.68mm Thk x 29.87mm ID, -25

SEALRING , See Page(s) 2-21 REF 10

1шт.

5

J913994

O-RING

See Page(s) 2-21 REF 13

1шт.

6

J929751

GASKET

See Page(s) 2-21 REF 15

1шт.

7

238-5341

O-RING,0.21" Thk x 3.475" ID, -341, Cl 5, 75 Duro

See Page(s) 2-19 Ref 3

1шт.

8

J283767

GASKET,7.4mm Thk

See Page(s) 2-55 REF 22

1шт.

9

J942915

GASKET

Not Used In This Application

1шт.

Cylinder Block

1шт.

10

J906697

SEAL,Square, 5.16mm Thk x 50.17mm ID

50 mm ID, See Page(s) 2-55, REF 27

1шт.

11

J942914

GASKET

See Page(s) 2-35, REF 13

1шт.

13

J902425

SEALING WASHER,22.2mm ID x 26.9mm OD x 1.75mm Thk

See Page(s) 2-37, REF 12

1шт.

14

J929457

O-RING

23/32 ID x 7/64, See Page(s) 2-35, REF 6

1шт.

15

J912473

SEAL,157mm ID x 163.18mm OD x 7.03mm Thk

SEALRING , See Page(s) 2-63, REF 2

1шт.

16

J931059

GASKET

See Page(s) 3-13, REF 4

1шт.

17

J928759

SEALING WASHER

See Page(s) 2-53, REF 19

4шт.

18

J935032

SEAL

See Page(s) 3-21, REF 37

1шт.
