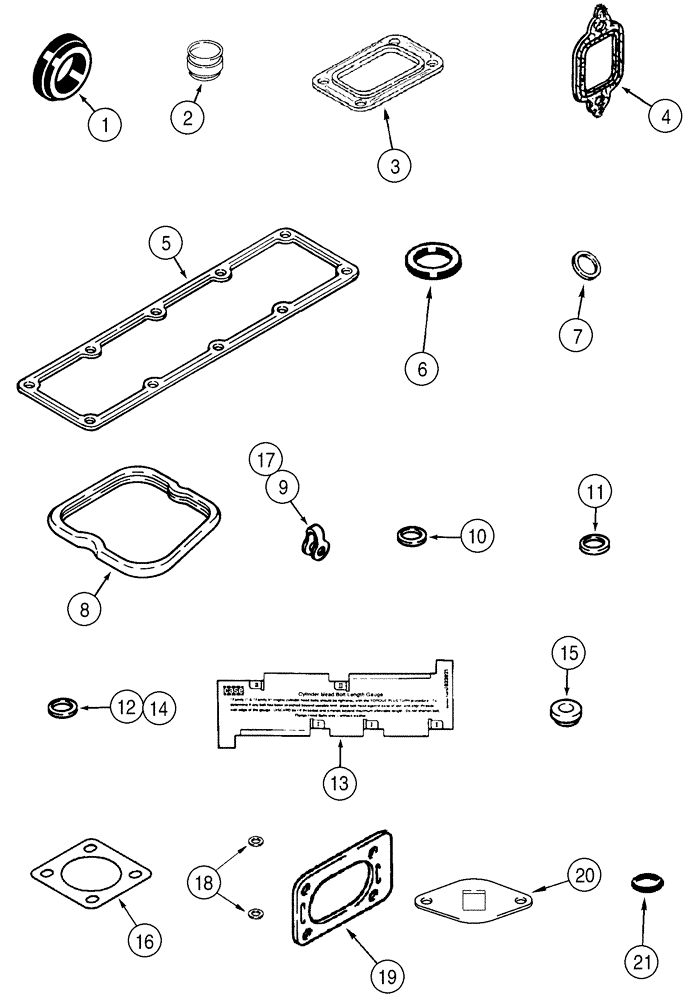

Запчасти Case 960 (02-22) - GASKET KIT (02) - ENGINE

Valve Grind

1шт.

A77975

GASKET KIT

Consists Of 1 - 21

1шт.

1

J923331

GASKET

See Page(s) 2-39, REF 11

1шт.

2

J921640

SEAL

See Page(s) 2-41, REF 8

8шт.

3

J919369

GASKET,0.5mm Thk

See Page(s) 2-27, REF 2

1шт.

4

J927154

GASKET,0.38mm Thk

Exhaust, See Page(s) 2-25, REF 1

4шт.

5

J938153

MANIFOLD GASKET,0.8mm Thk

Intake, See Page(s) 2-25, REF 4

4шт.

6

J902363

O-RING,30mm ID x 48mm OD x 3mm Thk

Not Used In This Application

1шт.

7

J900808

SEAL

Not Used In This Application

4шт.

8

J930906

GASKET

See Page(s) 2-39, REF 4

4шт.

9

J903380

SEAL

See Page(s) 3-11, REF 7

4шт.

Valve Grind

1шт.

10

J906659

SEAL

7 mm, See Page(s) 3-11 REF 10; 3-23, REF 3

4шт.

11

J909356

SEAL,Square, 1.68mm Thk x 15.6mm ID, -16

See Page(s) 3-23, REF 2

4шт.

12

J923261

WASHER,7.2mm ID x 15mm OD x 2.5mm Thk

2,5 mm, Not Used In This Application

4шт.

13

J823921

GAUGE

4шт.

14

J930324

SEAL

0,5 mm, Not Used In This Application

4шт.

15

J935449

ISOLATOR,10.2mm ID x 19mm OD x 10.1mm L

See Page(s) 2-39, REF 5

4шт.

16

J912220

GASKET,0.4mm Thk

Not Used In This Application

1шт.

17

J903380

SEAL

Not Used In This Application

1шт.

18

J918188

WASHER,7.8mm ID x 13.5mm OD x 1.2mm Thk

See Page(s) 3-13, REF 9

2шт.

19

J914856

GASKET,1.02mm Thk

See Page(s) 2-27 REF 16

1шт.

20

J937706

GASKET,0.79mm Thk

See Page(s) 2-27 REF 11

1шт.

21

J910824

O-RING,0.07" Thk x 0.364" ID, -12, Cl 5, 75 Duro

Not Used In This Application

4шт.
