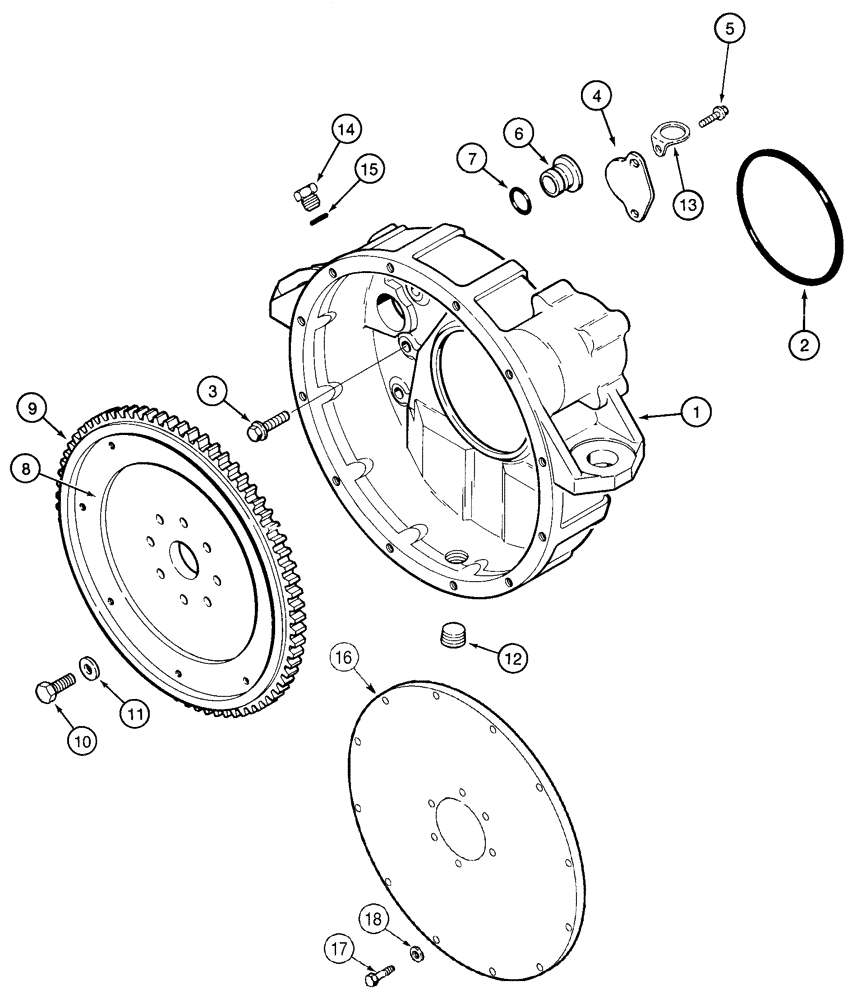

Запчасти Case 960 (02-20) - FLYWHEEL AND HOUSING (02) - ENGINE

1

J931714

HOUSING

1шт.

2

J912473

SEAL,157mm ID x 163.18mm OD x 7.03mm Thk

SEALRING

1шт.

3

854-12040

BOLT,Hvy Hex, M12 x 40mm, Cl 10.9

8шт.

4

J925234

PLATE

1шт.

5

J912072

SELF-TAP SCREW

M8 st x 15

2шт.

6

J910248

PLUG

1шт.

7

238-5212

O-RING,0.139" Thk x 0.859" ID, -212, Cl 5, 75 Duro

1шт.

J905927

FLYWHEEL

Includes 8, 9

1шт.

8

J905925

Without Ring Gear

1шт.

9

J901774

GEAR,Flywheel

159 T, Flywheel Ring

1шт.

10

J901395

BOLT,Hex, M12 x 1.25 x 32mm, Cl 12.9

8шт.

11

J900269

WASHER,12.76mm ID x 25.5mm OD x 1.65mm Thk

8шт.

12

263136

MAGNETIC PLUG,Sq. Soc, 3/4"-14 NPTF

PLUG, MAGNETIC

1шт.

13

J928989

CLIP

1шт.

14

214389

PLUG,3/4" - 16 ORB

Includes Ref. 15

1шт.

15

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1шт.

16

360643A1

PLATE

Pump

1шт.

17

614-10035

BOLT,Hex, M10 x 1.5 x 35mm, Cl 8.8, Full Thd

12шт.

18

895-11010

WASHER,11mm ID x 20mm OD x 2mm Thk

12шт.
