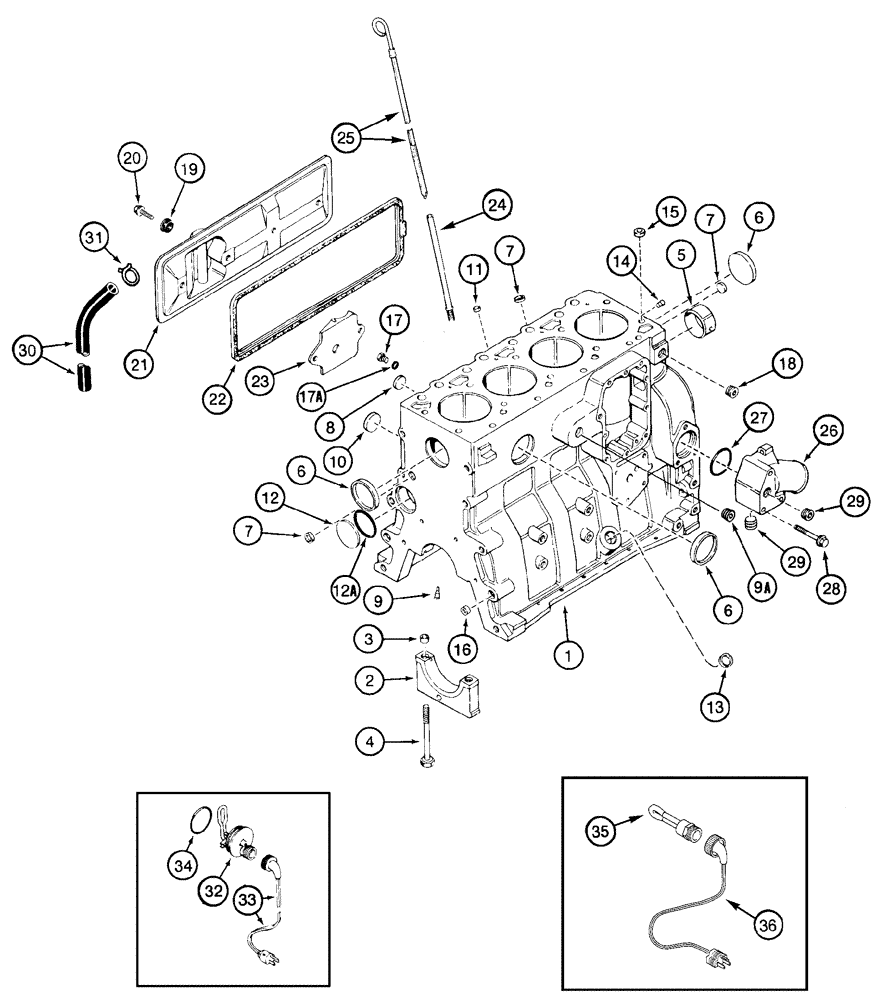

Запчасти Case 960 (02-18) - CYLINDER BLOCK (02) - ENGINE

386825A1

4T-390 Emissions Certified Engine, Complete, Less, Starter, Alternator, Fan, Fan Belt, Air Cleaner, Muffler and Exhaust Pipe

1шт.

234277A2

BASIC ENGINE

Less Starter, Alternator, Fan, Fan Belt, Air Cleaner, Muffler, Exhaust Manifold, Flywheel and Housing, Oil Fill and Dipstick, Fuel Injectors and Lines, Front Pulley, Belt Tensioner and Turbocharger; See Note

1шт.

234277A2R

REMAN-BASIC ENGINE

Less Starter, Alternator, Fan, Fan Belt, Air Cleaner, Muffler, Exhaust Manifold, Flywheel and Housing, Oil Fill and Dipstick, Fuel Injectors and Lines, Front Pulley, Belt Tensioner and Turbocharger

1шт.

234277A2C

CORE-BASIC ENGINE

Return Number

1шт.

J933648

SHORT ENGINE

Includes 1 - 8, Short, Includes Stripped Block, Pistons, Connecting Rods And Bearings, Crankshaft And Bearings

1шт.

J933648R

SHORT ENGINE

Remanufactured

1шт.

J933648C

CORE-ENGINE

Return Number

1шт.

1

87444172

BLOCK ASSY.

Consists Of 2 - 8

1шт.

2

J936791

BEARING CAP

Includes 3

5шт.

3

J900068

BEARING WASHER

18 mm OD

10шт.

4

J927948

BOLT,Flng, MJ12 x 1.5H6H x 119mm, Cl 12.9

10шт.

5

REF

INSTRUCTION

Bushing, See Page(s) 2-47

1шт.

6

A77782

PLUG

58 mm

3шт.

7

J900956

PLUG

18 mm OD

3шт.

8

41-1616

PLUG,Cup, 1", Stainless

2шт.

J933220

PACKAGE,SERVICE

Consists Of 9 - 18

1шт.

9

J937214

NOZZLE CAP

4 Used In This Application

6шт.

9a

A77505

PLUG

3/4 PT

1шт.

10

J900958

PLUG

32 mm OD

1шт.

11

J900955

PLUG

10 mm OD

3шт.

12

172599

PLUG,Exp, 2 3/8"

60 mm OD

1шт.

12a

J926047

O-RING,0.07" Thk x 2.239" ID

57 mm ID

1шт.

13

J920706

PLUG

22 mm, Not Used In This Application

1шт.

14

J900257

PIN,10.01mm OD x 16mm L

16 mm

2шт.

15

J902343

DOWEL

16 mm OD

2шт.

16

J900068

BEARING WASHER

18 mm OD

2шт.

17

J678923

PLUG,M10 x 1

10 mm, Includes 17A, One Used In This Application

3шт.

17a

637-72081

O-RING,1.6mm Thk x 8.1mm ID, Cl 7, 75 Duro

1шт.

18

A77429

PLUG

1/2 PT

1шт.

18a

J678921

PLUG

14 mm, Includes 18B, Not Used In This Application, Not Illustrated

1шт.

18b

J678912

O-RING,2.2mm Thk x 11.3mm ID

Not Illustrated

1шт.

18c

J932296

PLUG

Includes 18D, Not Used In This Application, Not Illustrated

1шт.

18d

J330478

O-RING,0.07" Thk x 0.676" ID

Not Illustrated

1шт.

19

J900267

SEAL

2шт.

20

845-8016

BOLT,Hvy Hex, M8 x 16mm, Cl 8.8

2шт.

21

J936186

COVER

Includes 23

1шт.

22

J283767

GASKET,7.4mm Thk

1шт.

23

J907586

BAFFLE

1шт.

24

302061A1

TUBE,9.52 mm OD, 270, 124 mm Length

1шт.

25

302062A1

DIPSTICK

1шт.

26

J934877

HYD CONNECTOR

1шт.

27

J906697

SEAL,Square, 5.16mm Thk x 50.17mm ID

50 mm ID

1шт.

28

854-10075

BOLT,Hvy Hex, M10 x 75mm, Cl 10.9

3шт.

29

A77429

PLUG

1/2 PT

2шт.

30

J918612

TUBE,360.00 mm

1шт.

31

J904230

CLAMP,25.4mm

Engine Block Heater

1шт.

*

196803A1

KIT

120V, Consists Of 32, 36

1шт.

32

NSS

NOT SOLD SEPARAT

Element

1шт.

33

196466A1

ELECTRIC CABLE

1829 mm (72 in)

1шт.

34

J910517

O-RING

1шт.

*

309651A1

KIT

120V, Consists Of 35, 36

1шт.

35

NSS

NOT SOLD SEPARAT

Element

1шт.

36

196466A1

ELECTRIC CABLE

1829 mm (72 in)

1шт.

*

Engine Overhaul Kit

1шт.

*

A77887

PACKAGE,SERVICE

Consists Of 37 - 44, Not Illustrated

1шт.

37

J802765

PISTON & RINGS KIT

1,0 mm, See Page(s) 2-65

4шт.

38

J934047

PIN,40mm OD x 82.68mm L

See Page(s) 2-65

4шт.

39

A77465

BEARING SET

See Page(s) 2-65

4шт.

40

A77405

CRANKSHAFT BEARING

See Page(s) 2-59

4шт.

41

A77896

BEARING SET

See Page(s) 2-59

1шт.

42

A77975

GASKET KIT

See Page(s) 2-67

1шт.

43

J283333

CYLINDER HEAD GASKET,2.32mm Thk

See Page(s) 2-39

1шт.

44

A77673

GASKET KIT

Not Used In This Application

1шт.
