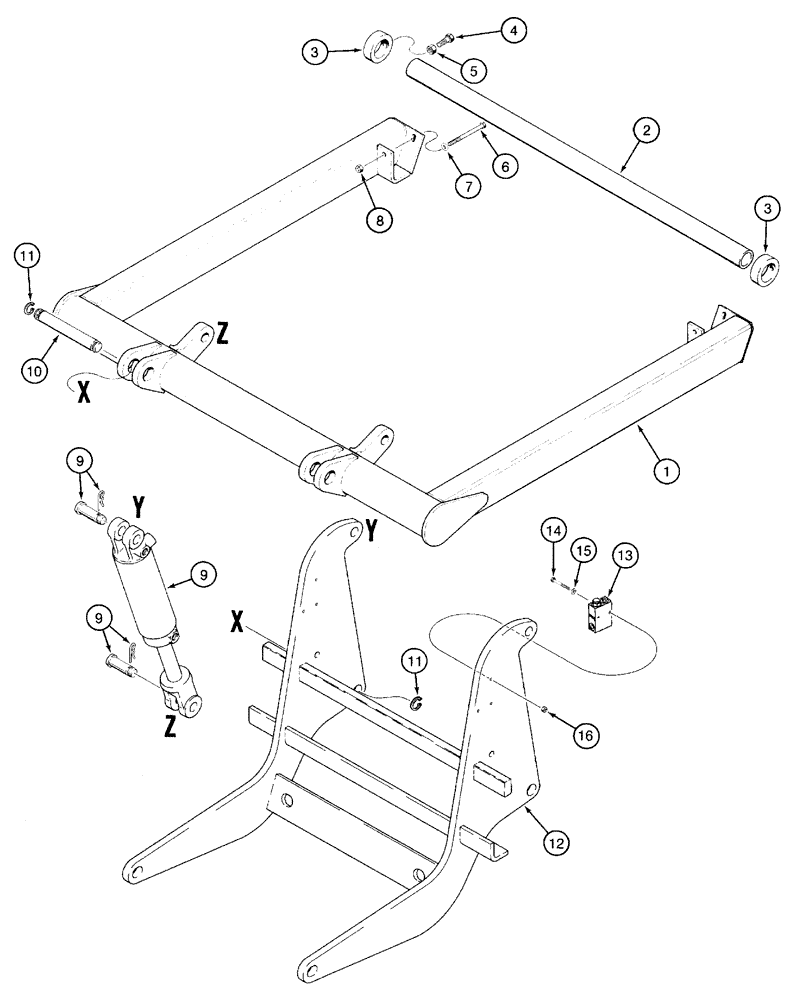

Запчасти Case 960 (09-52) - REEL CARRIER (09) - CHASSIS

1

H674972

ARM

Reel Carrier

1шт.

2

H434806

SPINDLE

1шт.

3

H434807

COLLAR

2шт.

4

413-1024

BOLT,Hex, 5/8" - 11 x 1-1/2", Gr 5

2шт.

5

425-1410

JAM NUT,Jam, 5/8"-11, G5

5/8

2шт.

6

413-684

BOLT,Hex, 3/8" - 16 x 5-1/4", Gr 5

3/8 x 5-1/4

2шт.

7

496-21041

WASHER,13/32" x 13/16" x .089", HDN

2шт.

8

232-4116

NUT,3/8"-16, GC

2шт.

9

101644A1

CYLINDER

76 ID x 203 strk, Reel Carrier Lift, See Page(s) 8-113

2шт.

10

H434262

PIN

2шт.

11

D25279

SNAP RING,M35, Int

4шт.

12

H674971

CHASSIS

Counterweight and Reel Carrier, See Page(s) 9-25

1шт.

13

H674608

VALVE

Lockout, Reel Carrier, See Page(s) 5-33

1шт.

14

413-448

BOLT,Hex, 1/4" - 20 x 3", Gr 5

1/4 x 3

2шт.

15

H426767

WASHER

2шт.

16

232-4114

LOCK NUT,1/4"-20, GC

2шт.
