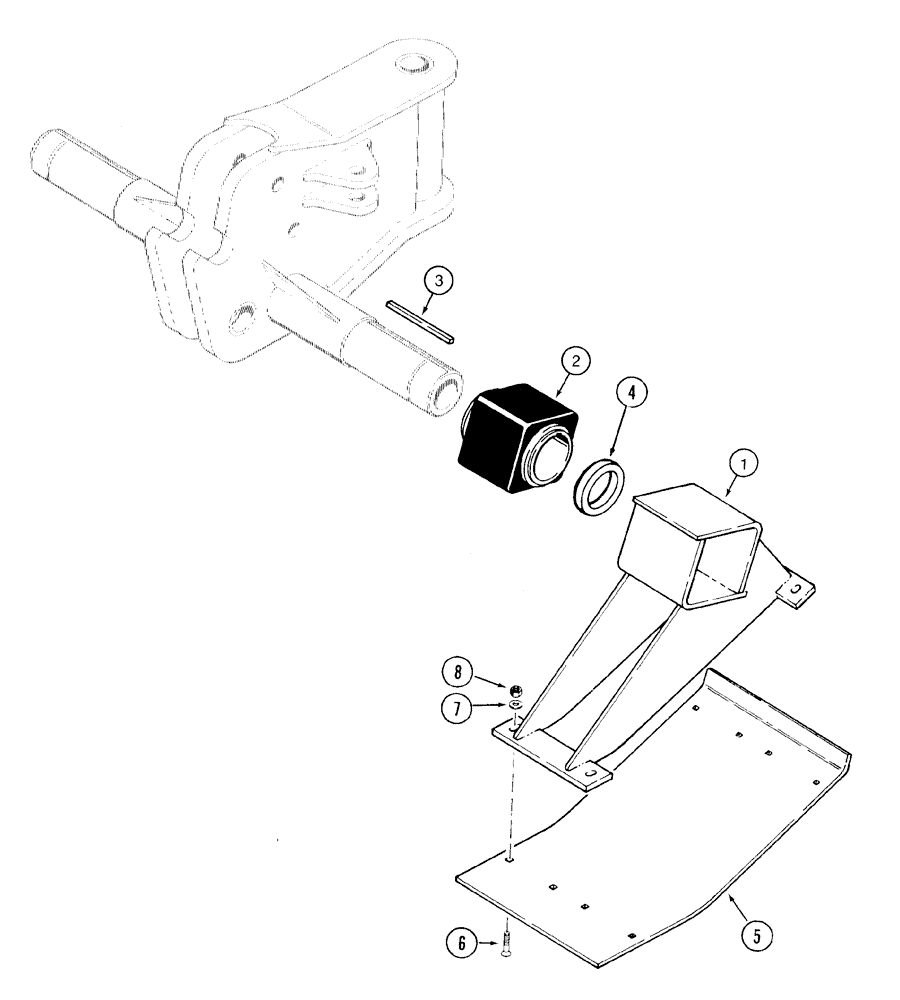

Запчасти Case 960 (09-50) - PLOW SKID SHOES AND PLATES (09) - CHASSIS

H674485

SHOE (ASSY)

Includes 1, 2, Not Serviced As An Assembly, Order Components

2шт.

1

H674486

SHOE (ASSY)

1шт.

2

H230862

SHOCK ABSORBER

Rubber

1шт.

3

H79368

KEY

3/8 x 5-3/8

2шт.

4

103-11300

SNAP RING,#300, Ext

2шт.

5

H437946

LARGE PLATE

PLATE, LARGE

2шт.

6

419-2624

CARRIAGE BOLT,#3, 3/8" - 16 x 1 1/2", Gr 5

3/8 x 1-1/2

8шт.

7

496-21041

WASHER,13/32" x 13/16" x .089", HDN

8шт.

8

232-4116

NUT,3/8"-16, GC

8шт.
